Activating and Using Compare

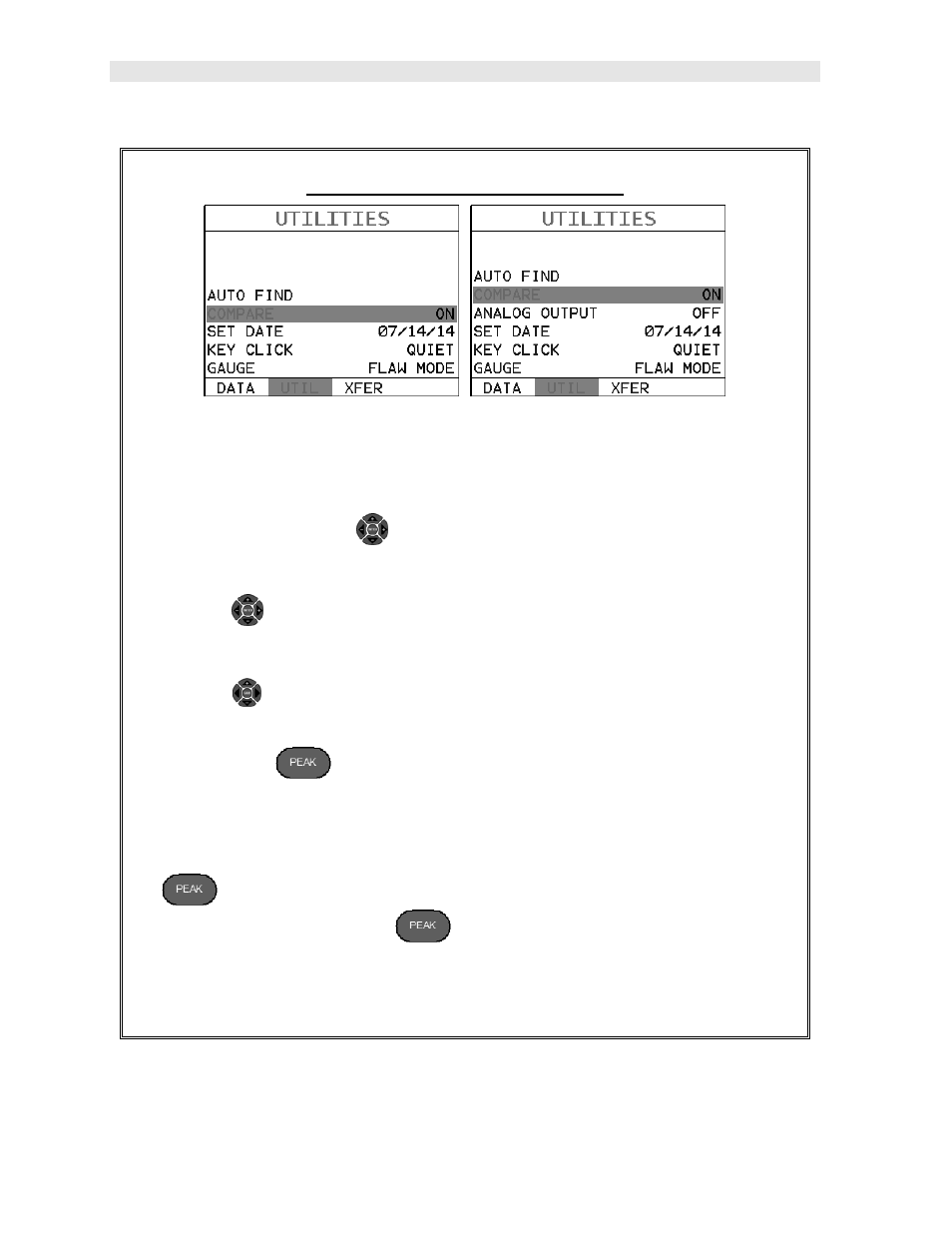

1) Press the MENU key once to activate the menu items tab. Press the MENU
key multiple times to tab right and the ESC key multiple times to tab left until
the UTIL menu is highlighted and displaying the submenu items.
Alternatively, press the LEFT and RIGHT arrow keys multiple times
using the left button wheel.
2) Use the UP and DOWN arrow keys multiple times using the left button
wheel to scroll through the sub menu items until COMPARE is highlighted.
3) Use the LEFT and RIGHT arrow keys multiple times on the right button
wheel to toggle COMPARE on/off. Note: The COMPARE feature now
overrides the PEAK key and its functions while activated.
4) Press the MEAS key to return to the measurement screen.
5) Acquire the waveform of the sample flaw on the display, and press the
PEAK key to freeze and send it into the background on the display in
another color. Pressing the PEAK key a second time to will clear the
waveform.
6) Finally, repeat steps 1 – 3 to disable the COMPARE feature.
11.21 Analog Output
