2.1.1.

Configure IP by SerialManager Utility

Use SerialManager configuration utility that comes with product CD or diskette to configure the network parameters.
For more details, please refer to

Appendix B1

Find new device and IP assignment
Use SerialManager Utility for finding new device IP address, get device’s current IP from table list
Re-assigned IP, network mask and gateway if need with SerialManager Utility.
User can configure User ID, Password and Host Name with SerialManager Utility.

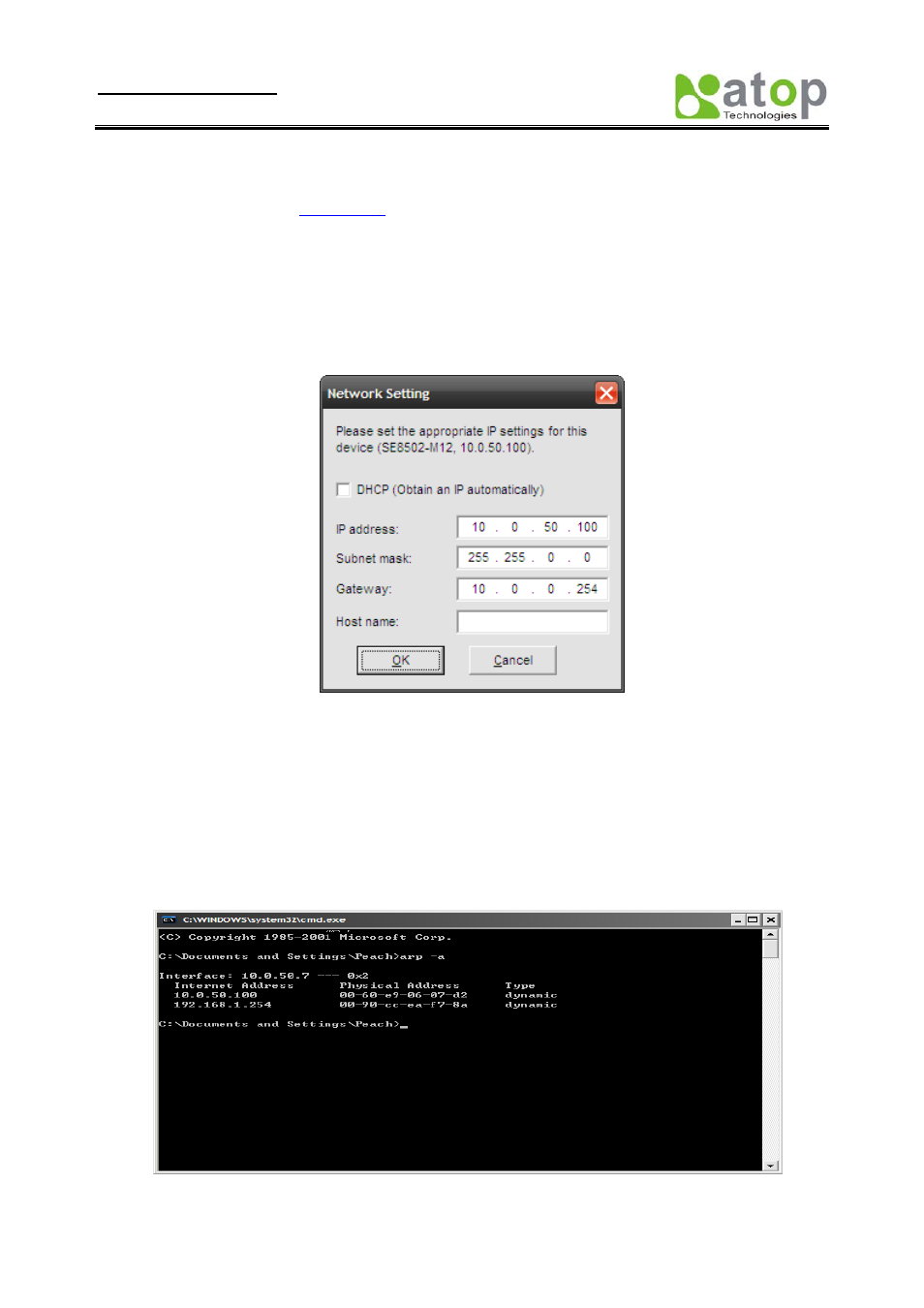

Fig 2. IP settings for SerialManager Utility tool

Note: All settings were NOT changed if user ID or password was incorrect.

If there is more than one device using the same IP address in same Subnet. User has to correct mapping between MAC
address & IP address by ARP commands.

ARP commands

ARP (address resolution protocol) commands can be used to assign a static IP address on SE8501-M12 using its
hardware MAC (media access control) address. The MAC address"0060E9-xxxxxx" is printed on the rear side of
SE8502-M12. The following figure shows how to use ARP command on MS-DOS command prompt window.

Example: Set IP 10.0.50.100 to MAC address 00-60-e9-06-07-d2.

Fig 3. Map IP address to MAC address by ARP Command
