S E T T I N G U P T H E M F C A N D P C T O W O R K T O G E T H E R 13 - 3
When you use a Personal Computer with your MFC, please attach the enclosed
Filter Core to a Bi-directional Parallel Cable.

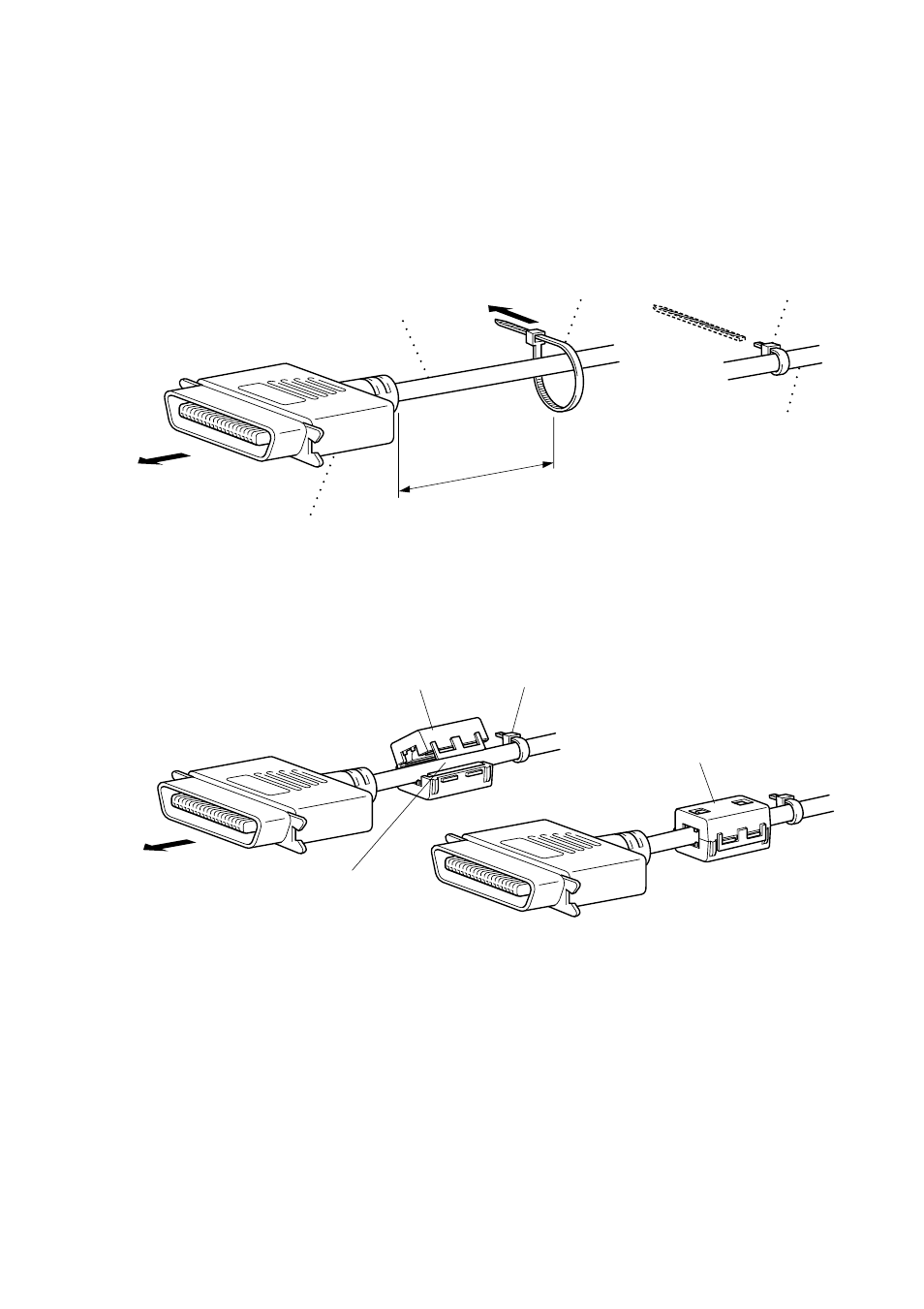

How to Attach the Filter Core to a Bi-directional
Parallel Cable:
1
Attach the Cable Tie 2 inches or less from the Parallel Interface connector.
2
Attach the Filter Core between the Parallel Interface Connector and the Cable
Tie, pressing until you hear a click.
3
Unplug the MFC power cord from the electrical outlet before connecting the
parallel interface cable.
4
Make sure the computer is turned off and unplugged from the electrical power
before you connect the interface cable.
5
Connect the parallel interface cable to the parallel interface port of the MFC and
secure the wire clips.
2 inches
Bi-directional
Parallel Cable Cable Tie
Cable Tie
to MFC
Parallel Interface
Connector
Bi-directional
Parallel Cable
Cable Tie Filter Core
Filter Core
to MFC
Bi-directional
Parallel Cable
