SECTION 3 - CHASSIS & TURNTABLE
3-40 – JLG Lift – 3120788
3.8 ADJUSTMENT PROCEDURE FOR
LOCKOUT VALVE
1. With the turntable centered, adjust the bracket with
the washers to push the plunger in 5/16” ± 1/16”.
2. The ideal adjustment is 3/8”. Do not push the
plunger in more that 3/8”. The extra adjustment is
needed for the turntable bearing play
3.9 TOE-IN ADJUSTMENT
1. Measure from the same point, on the tire, from the
front side, then on the back side.
2. The tires must be within 0 ± 0.25" (0 ± 6.35 mm).
TIE
ROD
SPINDLE
OSCILLATION
CYLINDER
LOCKOUT
VALVE
AXLE PIVOT PIN
REF
2.000”
PLACE ONE WASHER BETWEEN
STEER LINK AND BOTTOM SIDE
OF TIE ROD. TYPICAL FOR RIGHT
SIDE OF ASSEMBLY.
WITH STEER CYL
CENTERED

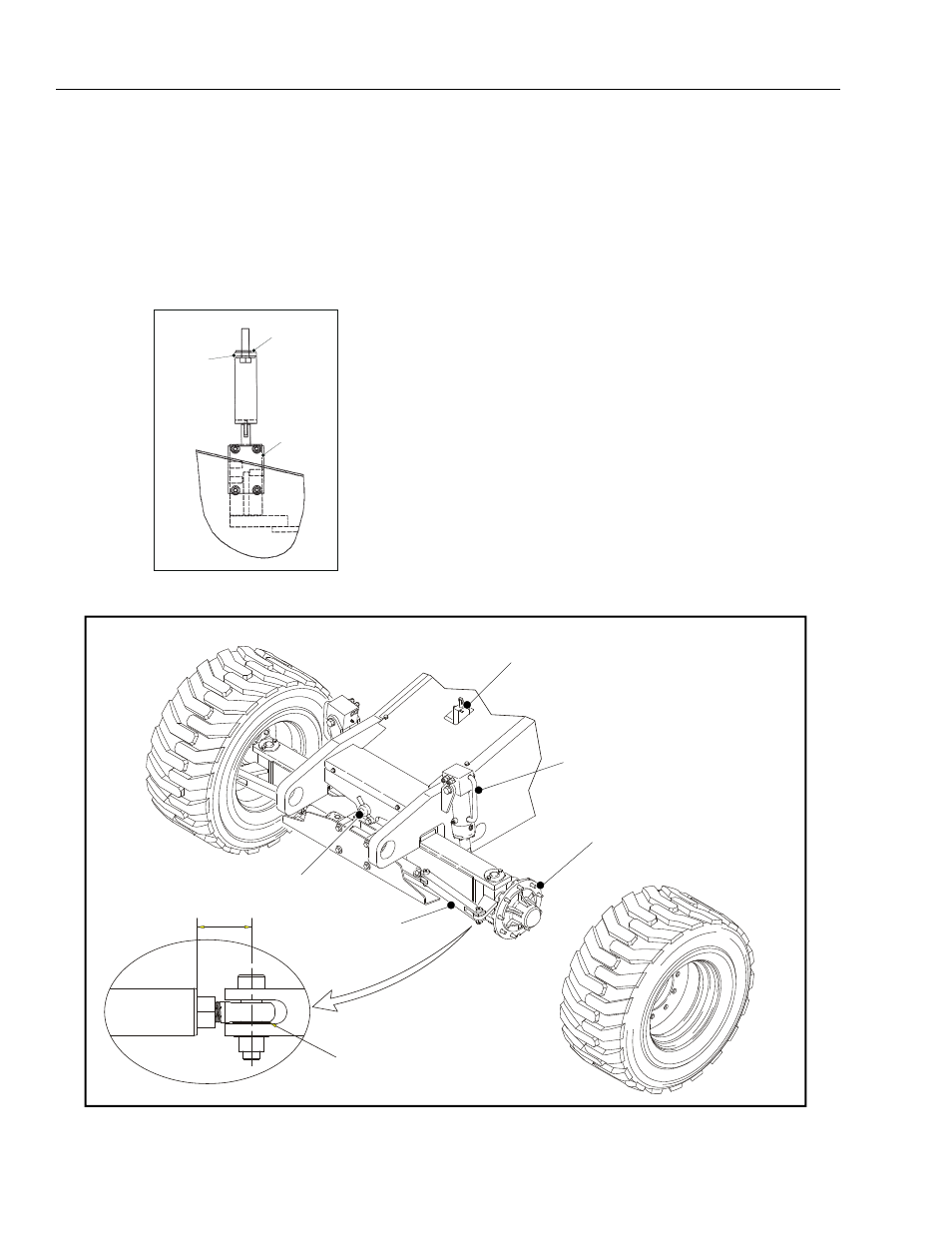

Figure 3-29. Front Axle
BRACKET
WASHER
LOCKOUT
VALVE
