SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS

3120788

– JLG Lift –

7-33

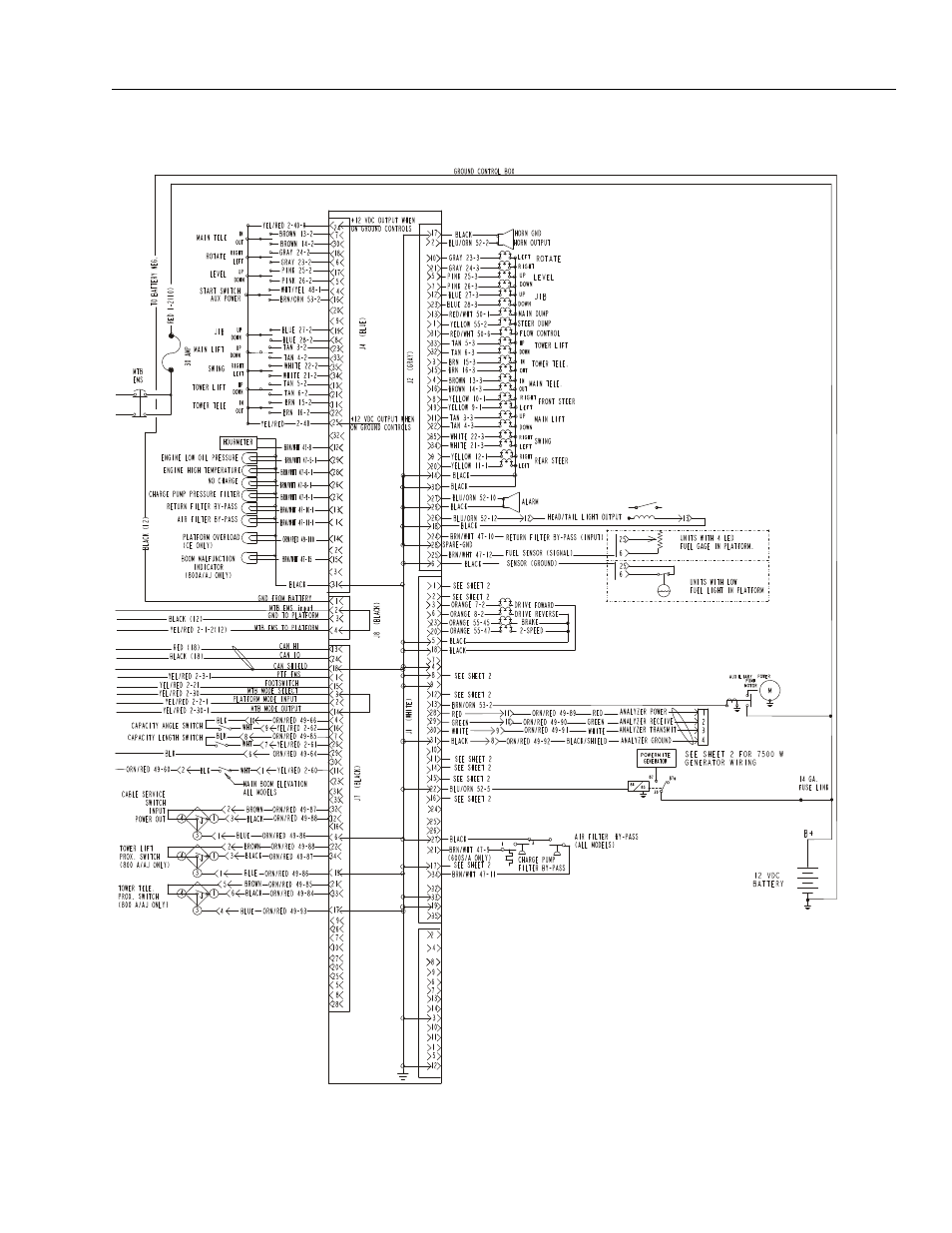

Figure 7-38. Electrical Schematic - Caterpillar Engine - Sheet 2 of 6

1870132 M
