SECTION 4 - BOOM & PLATFORM
3120788 – JLG Lift – 4-7

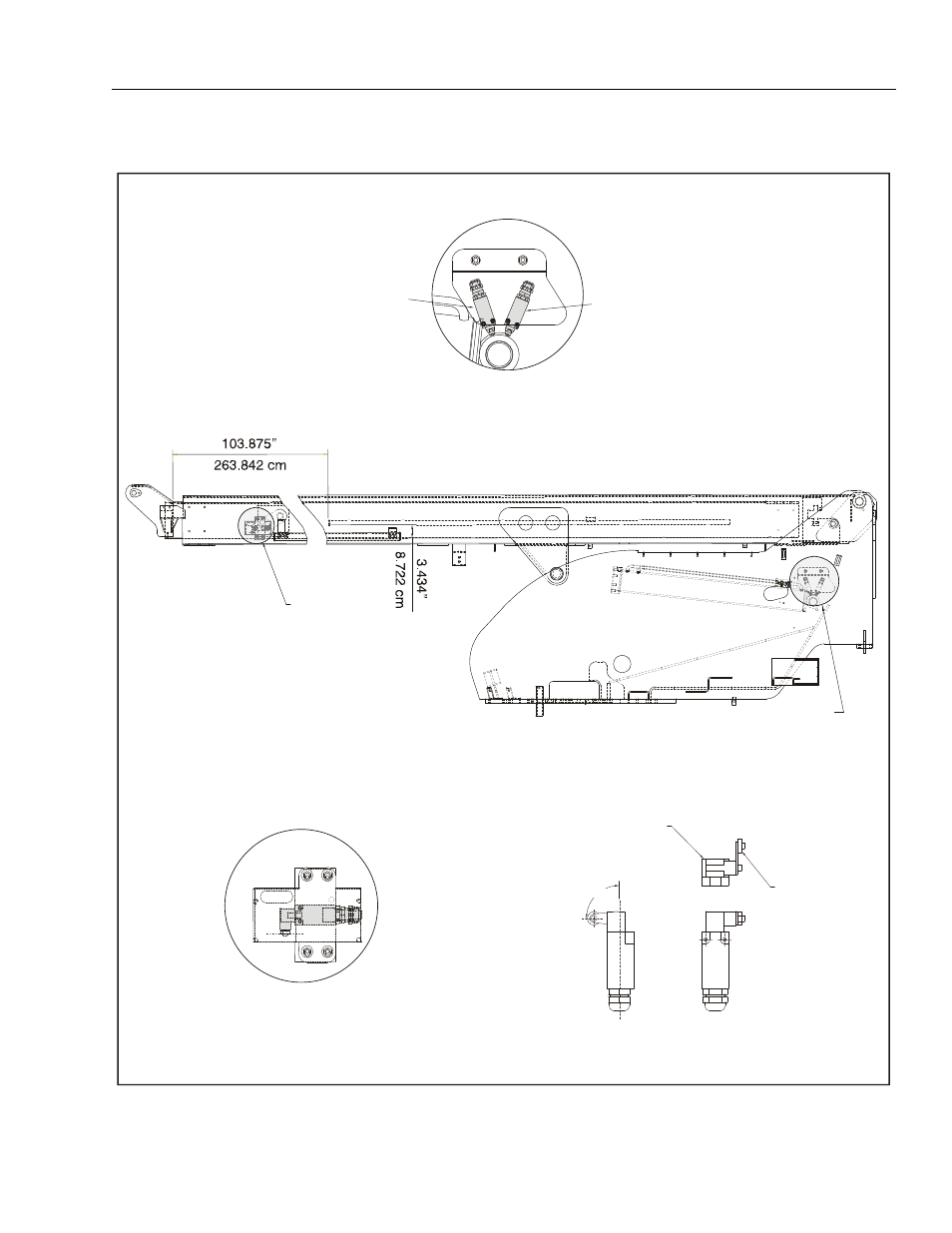

Figure 4-5. Limit Switches - 500 / 1000 LB (230 / 450 kg) Capacity
SWITCH TO ACTIVATE WHEN BOOM IS EXTENDED
84.375" ± 1" (214.3 ± 2.5 cm).
SEE VIEW A FOR SWITCH ORIENTATION.
SEE DETAIL B
NOTE: The target angle to switch from 500 to
1000 lbs. (230 to 450 kg) is 47°, but not
below 47° angle.
SEE DETAIL A
DETAIL B
DETAIL A
ABOVE HORIZONTAL SWITCH
TO ACTIVATE WHEN BASE
BOOM IS RAISED 5 ° TO 10°
ABOVE HORIZONTAL. SWITCH
TO RESET WHEN BASE BOOM
LOWERED 1 ° BELOW TO 4°
ABOVE HORIZONTAL.
SUGGESTED
INITIAL ARM
POSITION SETTING
MOUNTING
SURFACE
VIEW A
90 .0°
CAPACITY SWITCH TO ACTIVATE
WHEN BASE BOOM IS RAISED 47 °
TO 55 ° ABOVE HORIZONTAL.
SWITCH TO RESET WHEN BASE
BOOM LOWERED 47 ° BELOW TO
52 ° ABOVE HORIZONTAL.
0271164-F
