SECTION 5 - HYDRAULICS
3120788 – JLG Lift – 5-23
Timing Procedure
a. Install drive. Use felt tip marker to mark one
tooth. Align this tooth with timing dot on shaft.
NOTE: If drive is not symmetrical, install lager splined end
into shaft.
b. Install spacer plate.
c. Install 2 7/8 in. (73 mm) I.D. seal in gerotor seal
groove. Carefully place gerotor on spacer plate,
seal side toward spacer plate.

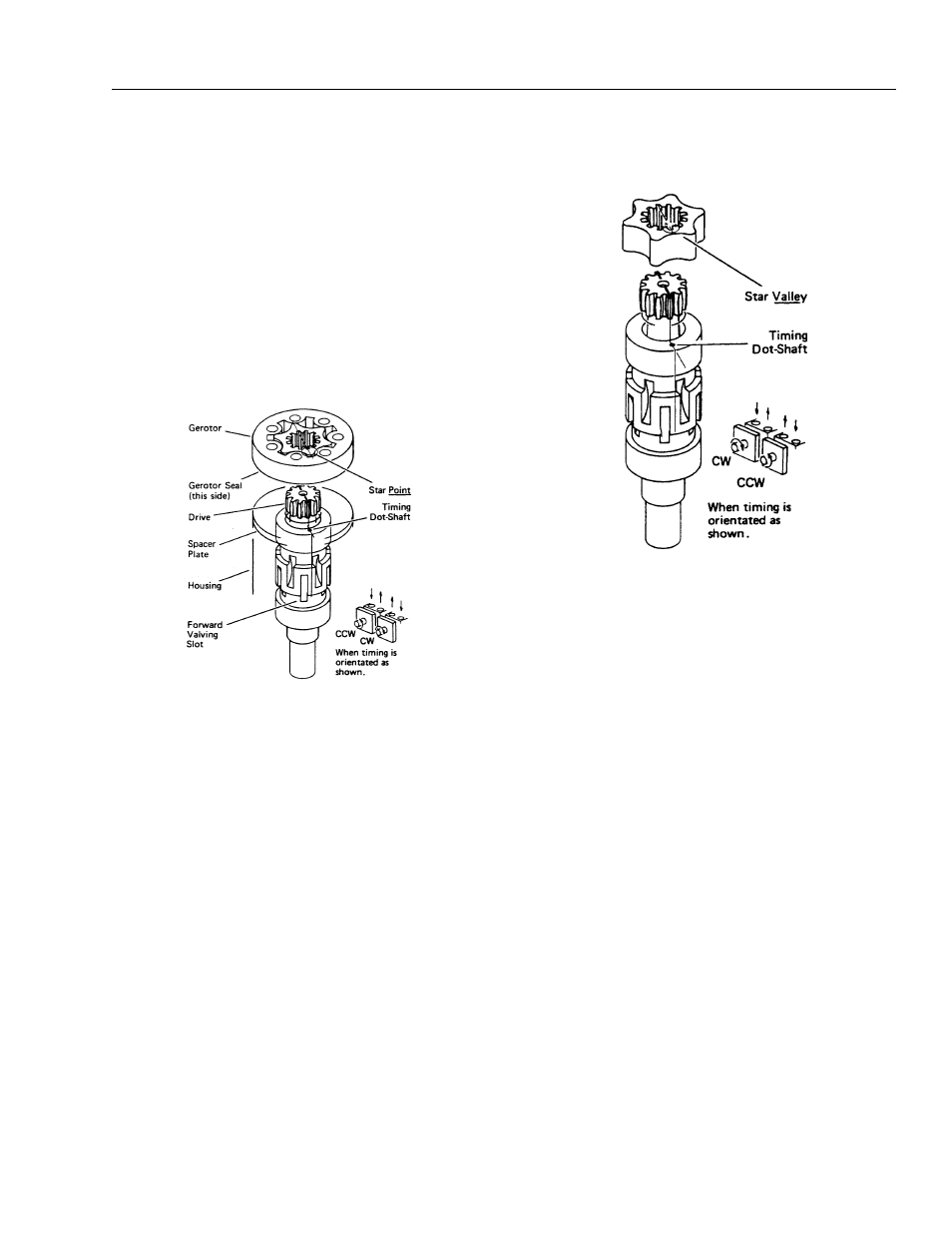

Standard Rotation
Align any star point with tooth marked on drive.
Reverse Rotation
Align any star valley with marked tooth.
15. Rotate gerotor to line up with bolt holes. Be careful
not to disengage star from drive or disturb gerotor
seal.
