SECTION 3 - CHASSIS & TURNTABLE
3-12 – JLG Lift – 3120788

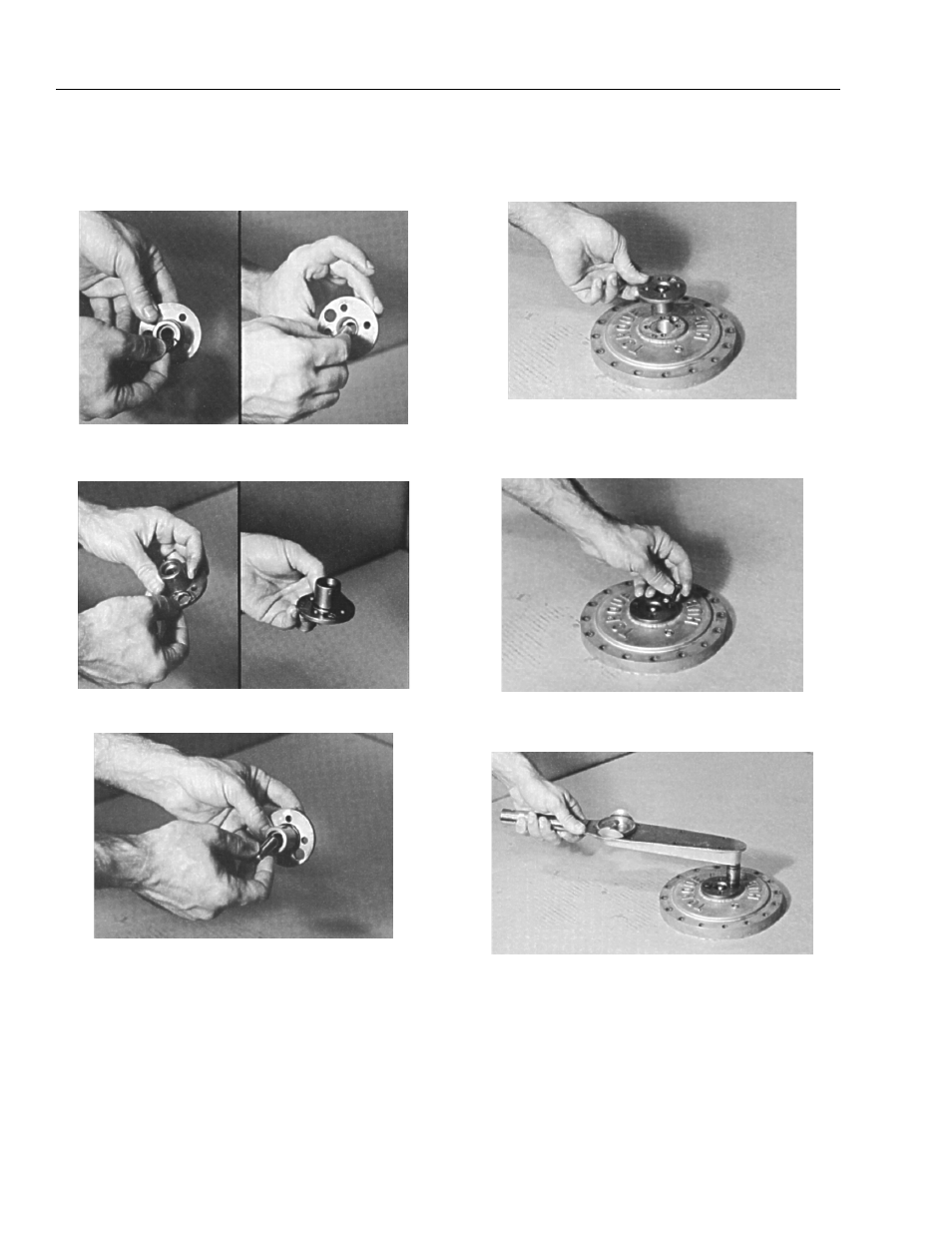

Cover Sub-Assembly
1. Using the disconnect rod, push o-ring (6F) into the
groove inside the cover cap (6B).
2. Place the o-ring (6G) onto the cover cap (6B) so that
it rests against the flange of the cover cap.
3. Insert disconnect rod (6E) into cover cap (6B).
4. Set cover (6Aon table, exterior side up. Place cover
cap (6B) onto cover (6A), aligning the pipe plug hole
in the cover cap over the pipe plug hole in the cover.
5. Place two of the cover cap bolts (6C) into any two
bolt hoes that are 180° apart on the cover cap (6B)
and tighten bolts.
6. Using a torque wrench, apply 36 to 49 in. lbs. (4 to 5
Nm) of torque to both bolts (6C).
