SECTION 5 - HYDRAULICS
5-8 – JLG Lift – 3120788
4
5
11
8
26
12
29***
6
6
6
6
1,2**,28
10
7
9
13
2**,3**,23
22
17
21
16
25
20
20
18
18
24
15
15
19
27*
1683776 E
1. Loctite #242
2. Locking Primer
3. Loctite
4. Bolt
5. Tapered Bushing
6. Composite Bushing 7. Head
8. Barrel
9. Piston
10. Wear Ring
11. Cylinder Rod
12. Plug 13. Plug
14. Not Used
15. Wear Ring
16. Wear Ring
17. Backup Ring
18. Backup Ring 19. Seal
20. O-ring
21. O-ring
22. Poly Seal
23. Wiper
24. T-Seal 25. Tube Spacer
26. Counterbalance Valve
27. Setscrew
28. Capscrew
29. Cartridge Valve

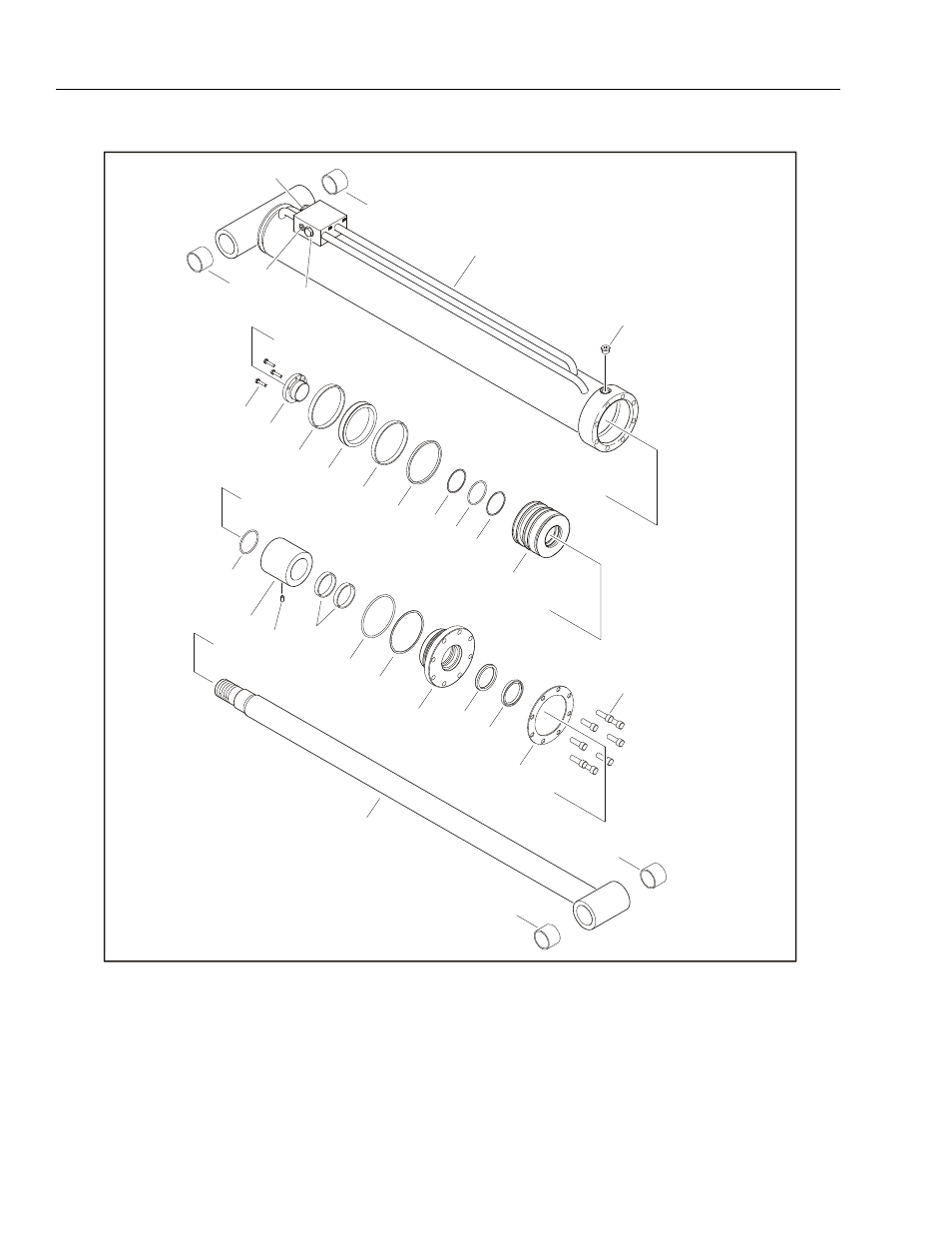

Figure 5-11. Lift Cylinder
* Prior to S/N 78894
** Prior to S/N 102048
*** Torque to 20 ft.lbs. (27 Nm) Max
