C onnector Pin Assig nment s

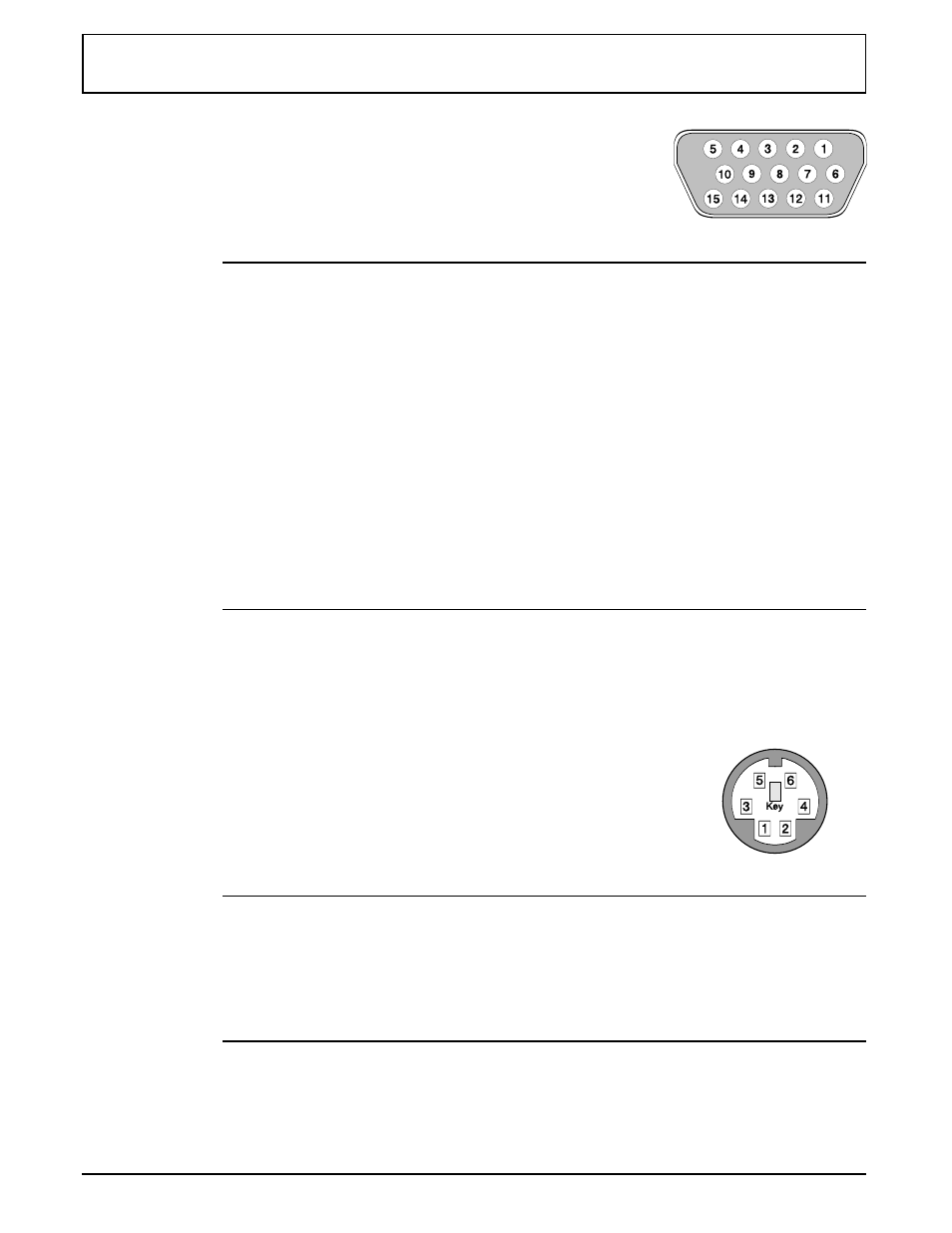

15-Pin VGA External
Monitor Connector
Pin No.
Signal Name
Direction
1
Red video
Output
2
Green video
Output
3
Blue video
Output
4
Not used
5
Ground
6
Red return
Input
7
Green return
Input
8
Blue return
Input
9
Not used
10
Ground
11
Not used
12
Not used
13
Horizontal sync
Output
14
Vertical sync
Output
15
Not used
Note: Monochrome monitors use green video for all video input and ignore
red and blue video.
Six-Pin Mini-Din PS/2 Mouse or
PS/2 Keyboard Connector
Pin No.
Signal Name
Abbreviation
1 Data
DATA
2 Not
used
3 Ground
GND
4 +5
volts
VCC
5 clock
CLK
6 Not
used
