Chapter 1. Introduction
61200.076L2-1 TSU 600 User Manual 23
Drop and Insert, Voice, and Bridging Application
The TSU 600 provides a bridge interface with an
Nx56/64 module. A drop and insert module provides
an interface to a remote TSU 100. The OCU DP
module is used for a 56 kbps DDS circuit to a remote
warehouse. The network is easily managed with T-
Watch which is run on a PC. See Figure 1-15.
BRIDGE
BRIDGE
T S U 6 0 0
3 2 1 C B A MODULE •1 •2 •3 •4 •5 •6
ENTER
CANCEL 3 7 * 5 8 0 6 D E F 9
OK TEST ALARM
ALARM ERROR TEST OK REMOTE
TEST ALARM TEST ALARM TEST ALARM TEST ALARM TEST ALARM
OK OK OK OK OK
#
TSU 600
T-WATCH
OK TEST ALARM OK TEST ALARM OK TEST ERROR ALARM DSU MODULE CSU
3 2 1 ENTER 6 5 4 9 8 7 # 0 *
C B A F E D CLEAR ALARM REMOTE SHIFT HOME COPY CANCEL
TSU 100
PHONE PHONE
DSU III AR DSU III AR ENTER
CANCEL
1 2 3
4 5 6
7 8 9 * 0 # RS CS TD RD CD ALM TST
DSU III AR

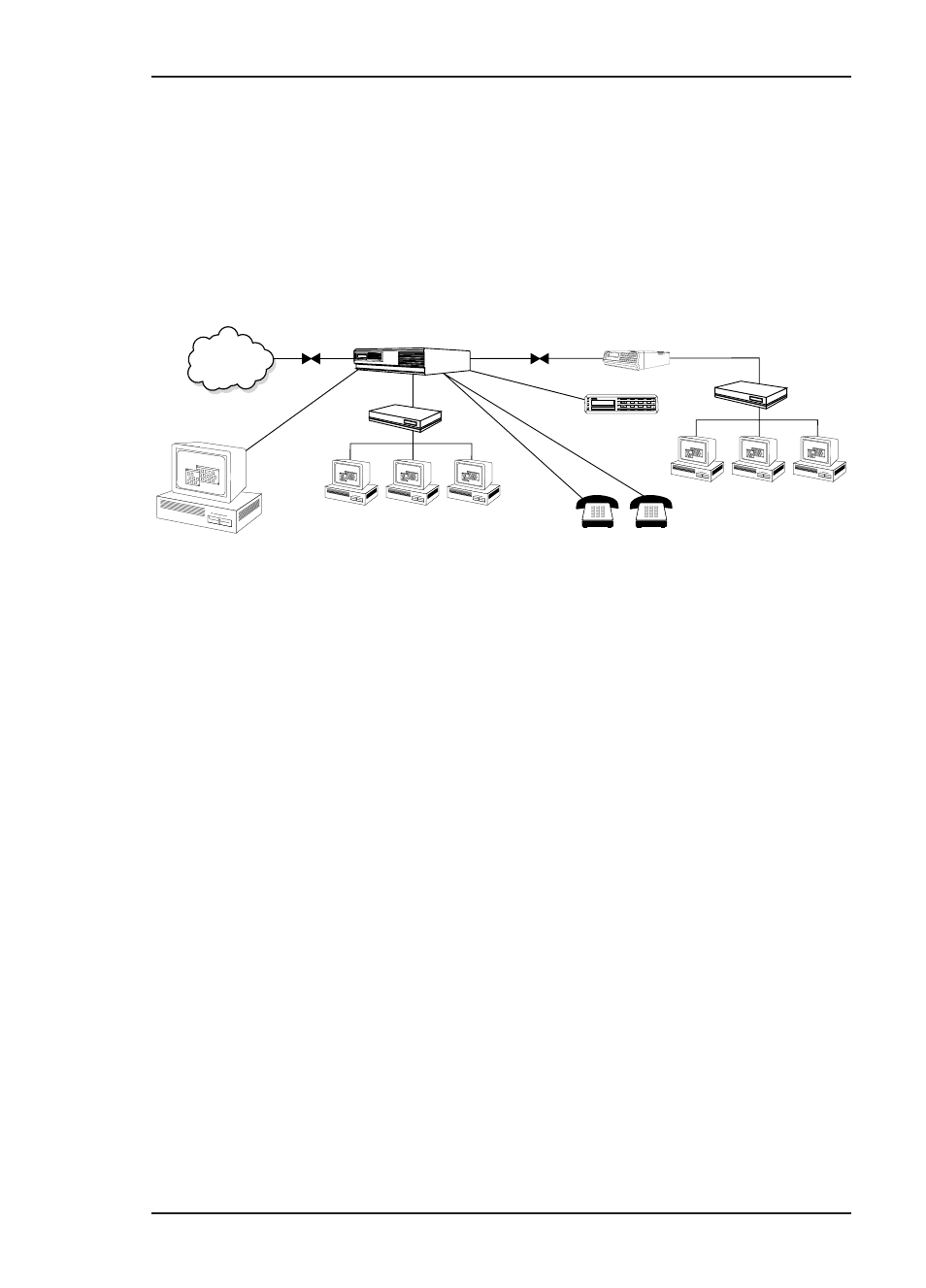

Figure 1-15
Drop and Insert, Voice, and Bridging Application Set Up
Variations of Mixed Applications
Regional Sales Office
TSU 600 supports LAN bridge with base Nx. The PBX
uses a DSX-1 module. Video conferencing is inter-
faced by use of the plug-on V.35 interface. See Figure
1-16.
Branch Office
TSU 600 supporting LAN bridge with base Nx. The
KEY system uses the DSX-1 module. See Figure 1-16.
