Chapter 1. Introduction
61200.076L2-1
TSU 600 User Manual
21
TSU 600 CONFIGURATION APPLICATIONS
The following examples illustrate possible configura-
tions of TSU 600 applications.
TSU 600 Option Modules
The TSU 600 features a unique architecture that allows
the addition of six option modules and plug on boards
providing an opportunity for growth to accommodate
many applications (see Figure -12).
TSU 600
DSX-1
Module
Plug on
V.35
Plug on
OCU DP
Plug on
Dual Voice
OCU-DP
Module
V.35
Module
D&I
Module
DUAL
Voice

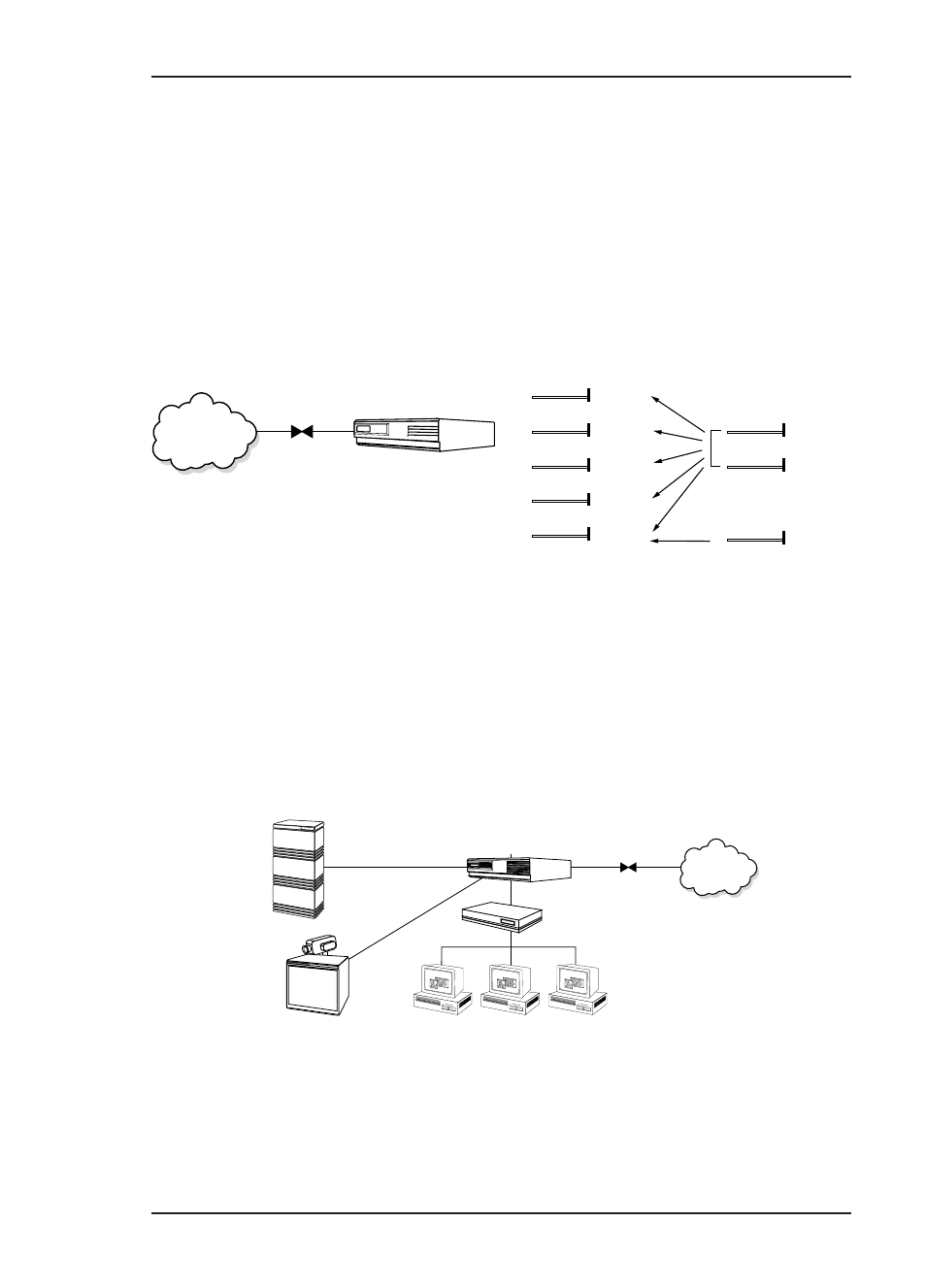

Figure 1-12
TSU 600 Option Modules
Bridge, PBX, Video Conferencing Application
In this application an Nx54/64 module provides a V.35
interface to a bridge. The PBX is interfaced to the TSU
600 with the DSX-1 module. Two switched 56 circuits
are provided by an OCU DP module and OCU DP
plug on board. See Figure 1-13.
T S U 6 0 0
3
2
1
C
B
A
MODULE
•1
•2
•3
•4
•5
•6
ENTER
CANCEL
3
7
*
5
8
0
6
D
E
F
9
OK
TEST
ALARM
ALARM
ERROR
TEST
OK
REMOTE
TEST
ALARM
TEST
ALARM
TEST
ALARM
TEST
ALARM
TEST
ALARM
OK
OK
OK
OK
OK
#
TSU 600
PBX
VIDEO
CONFERENCING
BRIDGE
Figure 1-13
Bridge, PBX, Video Conferencing Application Set Up
