Edit
The Review reflects that one of the DS0s is still pro-
grammed as Idle, and since the 1.1 Nx56/64 port has
one less DS0, the error must be somewhere between
DS0 13 and 24.
The map that was just created is still a Temp Map, and
must be edited as such.
Return to the DS0 MAP A configuration items by
using Cancel. Use number 5 or down scroll to move
the cursor to 5)EDIT TEMP (see Figure 4-11). Press
Enter
to display the settings for DS0 #1 that have just
been entered. The cursor is on the DS0 # field.

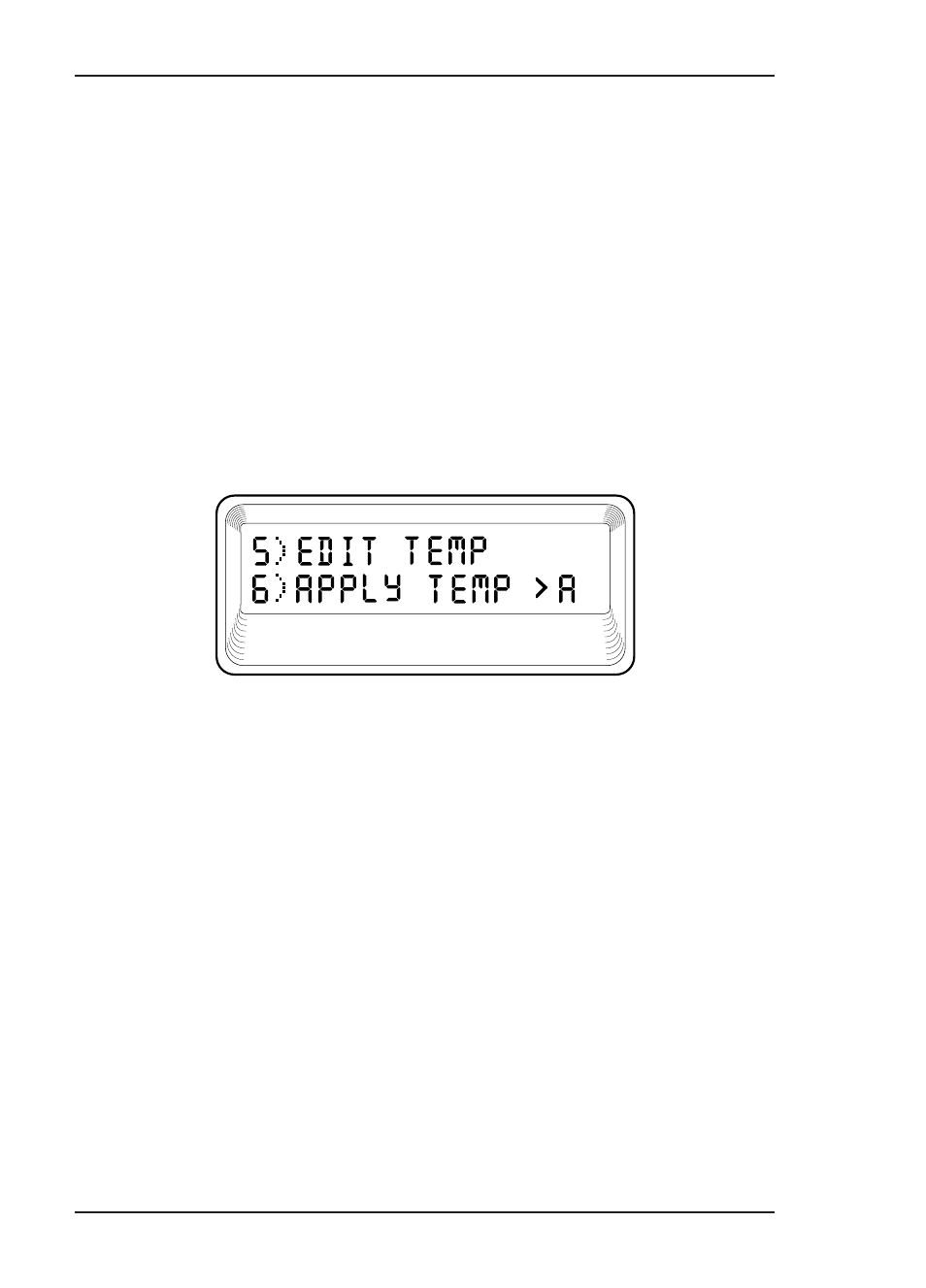

Figure 4-11
Window Showing Edit Temp Option
Since the error is between DS0 13 and 24, use number
1
and 3 to set the DS0 at number 13. Press Enter to
display the contents of DS0 # 13.
Use up scroll to increment through the DS0s, review-
ing each for accuracy. The display of DS0 17 will
identify the error (see Figure 4-12).
