Chapter 4. Example Operations
61200.076L2-1 TSU 600 User Manual
93
According to the DS0 Map work sheet, Passthru for
this DS0 should be set to Y for Yes (see Figure 4-7).

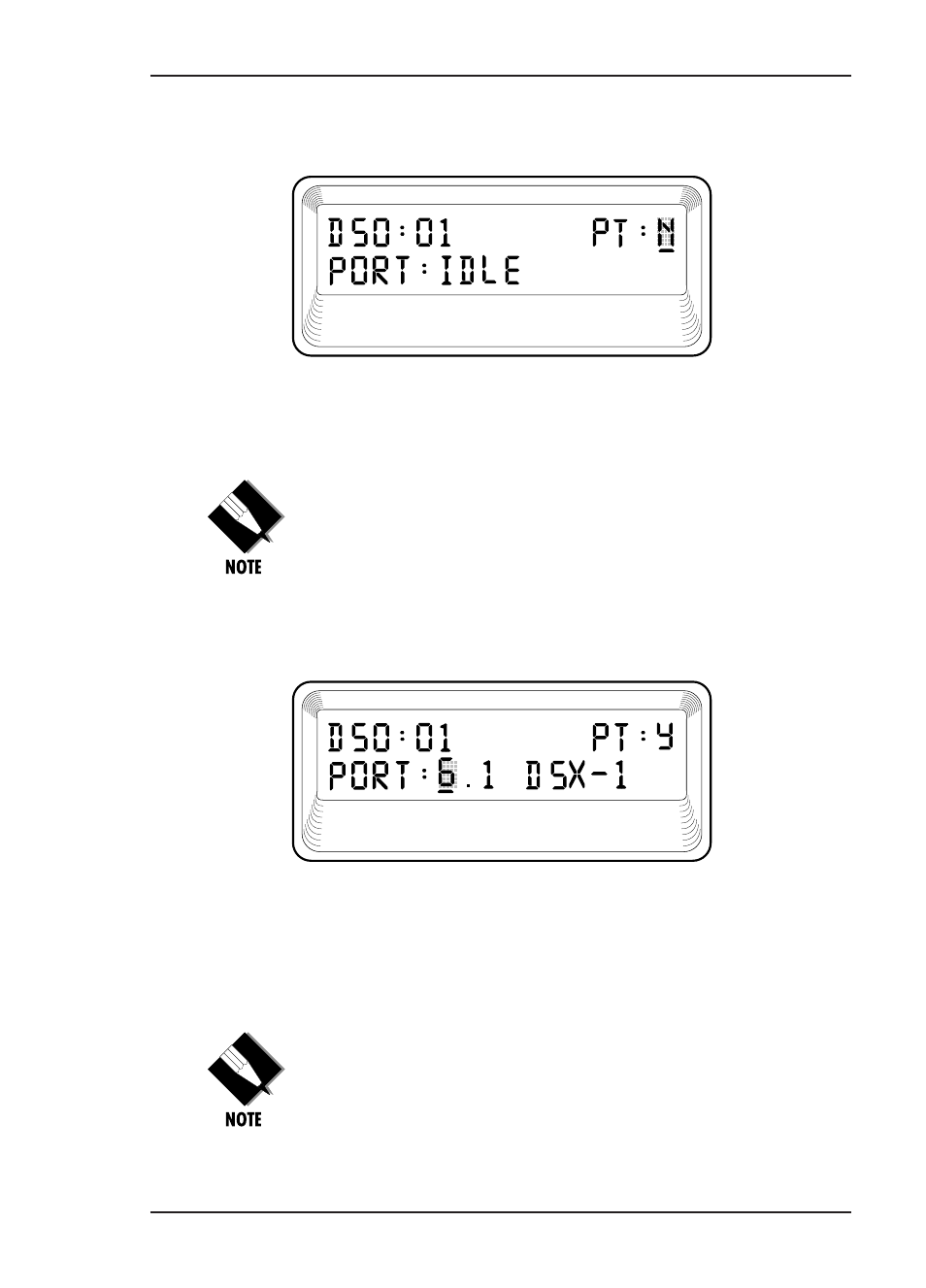

Figure 4-7
Passthru Selection Field
Scroll down to display the Y and press Enter to select.
The cursor advances to the PORT selection field.
If the Port is set to DSX-1 the TSU 600 will automatically
set the Passthru (PT) bit to Y.
Scroll down to advance through the Port list until the
6.1 DSX-1 Port name is displayed (see Figure 4-8).
Press Enter to select and move the cursor back to the
DS0 # field.
Figure 4-8
Display of DS0 Port Name
Another DS0 may be selected by incrementing the DS0
number using the up arrow key or, for this example,
typing number 2.
Since the data for this DS0 is identical to the previous DS0
just entered, it can be duplicated using Copy. The PT and
PORT data fields are set to the same value as was last
entered.
