Chapter 4. Example Operations

61200.076L2-1

TSU 600 User Manual

Step 5. Complete a Configuration Table for the DSX-1

PBX Passthru

Table 4-D provides information for configuring the
DSX-1 PBX passthrough.

Table 4-D

Configuration for DSX-1 PBX Passthru

MENU ITEM

SELECTION USED

SELECTIONS AVAILABLE

1)FORMAT

D4, ESF

2)CODE

AMI

AMI, B8ZS

3)YEL ALARM

ENA

ENA, DIS

5)CLK SOURCE

XXX*

NETWORK (NI), TI(LOOP)

6)INBAND LOOPBK

SET BY NI

7)LINE BUILD OUT

400Ft.

1-110: 110-220: 220-330: 330-440:

440-550: 550-655: >655

Step 6. Activate Configuration Menu

From the Main menu select the Configuration menu.
The unit displays the first two Configuration submenu
items: Network (NI) (network interface) and Unit (see
Figure 4-2).

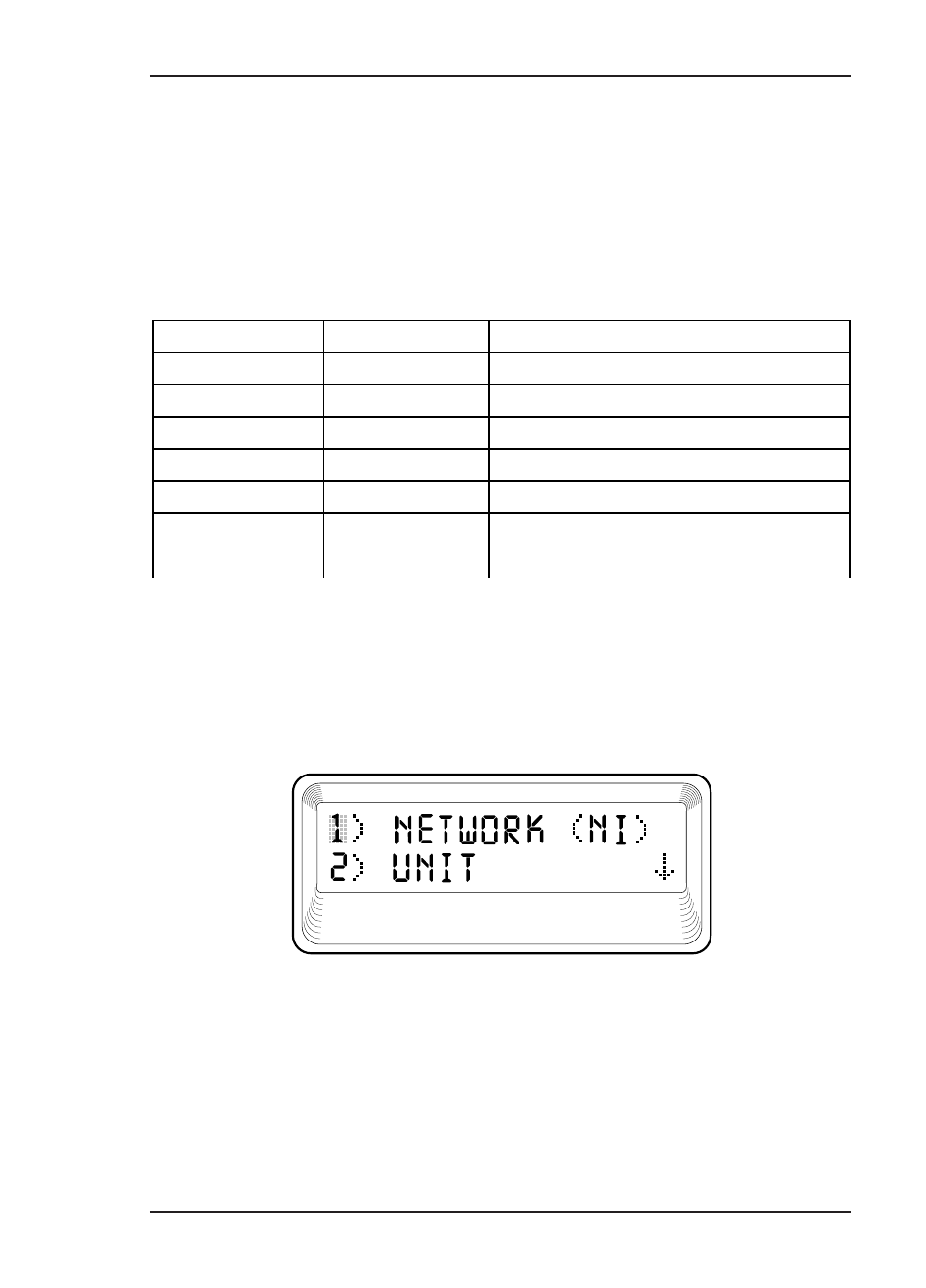

Figure 4-2

First Two Configuration Menu Items
