VS18/VS26 MAINTENANCE & INSTRUCTION BOOKLET

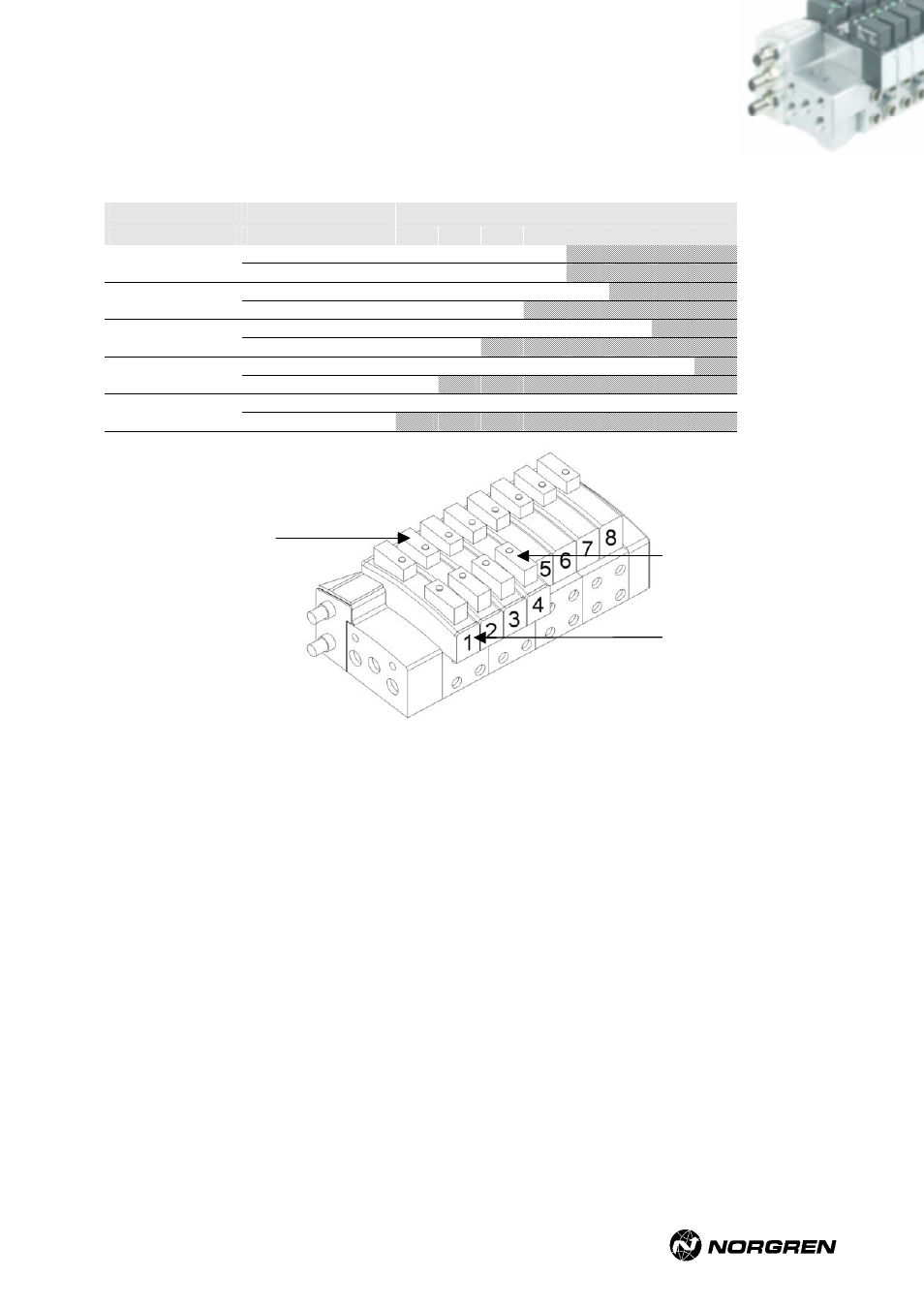

8.6.7 AS-Interface double slave output addressing
Allocation of data bytes and data bits to solenoids
Data byte.Data bit (eg. byte 0 / bit 3 0.3)
No of valves ª Valve no. ¨ 1 2 3 4 5 6 7 8
Solenoid 14 0.0 0.2 1.0 1.2
4 valves
Solenoid 12 0.1 0.3 1.1 1.3
Solenoid 14 0.0 0.2 1.0 1.2 1.3
5 valves
Solenoid 12 0.1 0.3 1.1
Solenoid 14 0.0 0.2 1.0 1.1 1.2 1.3
6 valves
Solenoid 12 0.1 0.3
Solenoid 14 0.0 0.2 0.3 1.0 1.1 1.2 1.3
7 valves
Solenoid 12 0.1
Solenoid 14 0.0 0.1 0.2 0.3 1.0 1.1 1.2 1.3
8 valves
Solenoid 12
Solenoids 12
Valve no.
Solenoids 14
VS2672926-KG00E_05/07 Page 80/97
