VS18/VS26

MAINTENANCE & INSTRUCTION BOOKLET

4. Lastly, mount the valves, sandwich plates, blanking plates and/or intermediate

supply/exhaust modules.

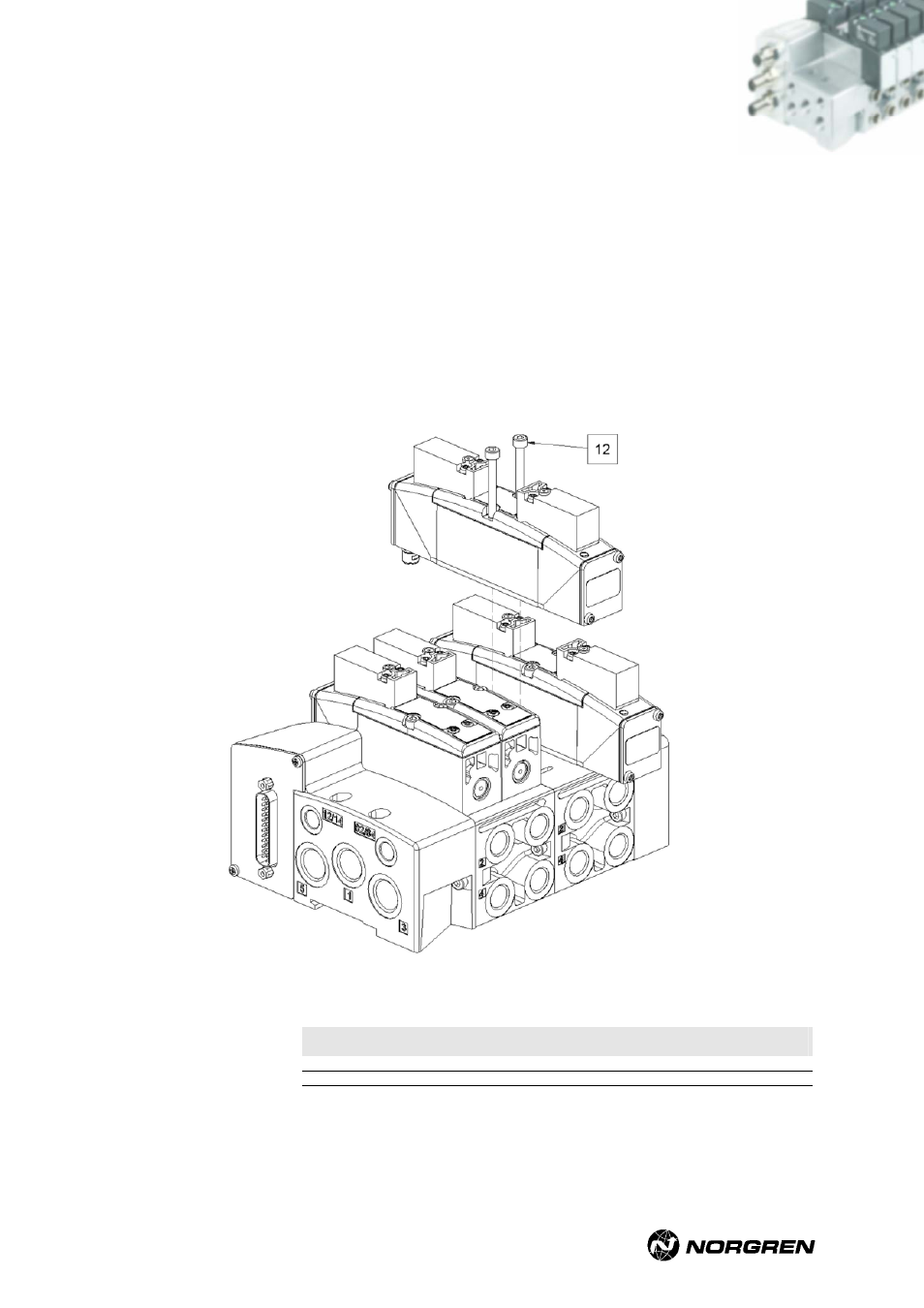

Valves:

1. Ensure valve body gasket is fitted on the bottom of the valve. Place valve onto the

modular sub-base aligned to the interface. Use plug-in connection as positioning point.


2. VS26 only: Orientate straight flange of the U-washers towards the outer edge of the

valve.

3. Tighten the valve mounting screws (two per valve) with the specified torque. If you are

using a power screwdriver, consider the maximum speed allowed.



Screw

Type
(thread)

Valve
seize

Tightening
torque in Nm

Tightening
torque in Ibs

Max. screw driver
speed in r.p.m.

12

M3x40

VS18

1.1 – 1.5

9.73 – 13.27

1100

12

M4x42

VS26

1.2 – 1.6

10.62 – 14.16 1100

VS2672926-KG00E_05/07 Page

19/97
