VS18/VS26

MAINTENANCE & INSTRUCTION BOOKLET

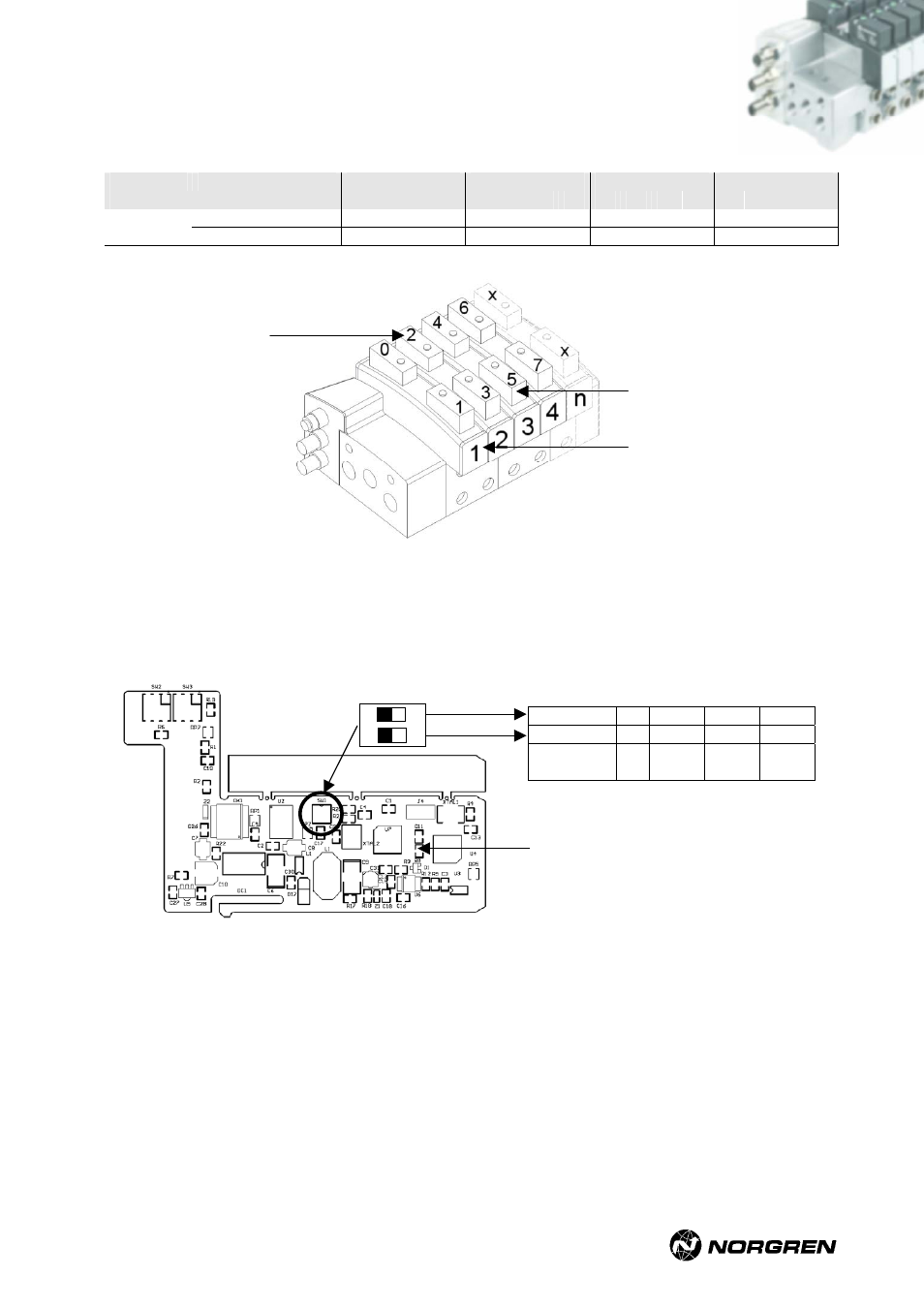

8.2.4 Profibus DP output addressing

Data byte_0

Data byte_1

Data byte_2

Data byte_3

Valve no.

¨

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15 16

Solenoid

14

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30

Data bits

Solenoid

12

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31

Solenoids 14

Solenoids 12

Valve no.



Number of configured output bytes

The number of configured output bytes can be changed if required. The default setting is always
on the maximum (4 output bytes). To change the number of outputs you have to remove the
Fieldbus PCB and modify the DIP switch as follows:

switch1 0 0 1 1
switch2 0 1 0 1
output
bytes

1 2 3 4







O
N

1
2

Fieldbus PCB

VS2672926-KG00E_05/07 Page

56/97
