Pneumatic High-Speed Pressure Controller CPC3000

WIKA Operating Instruction Pneumatic High-Speed Pressure Controller ∙ Version 1.1

41

11498171.01 08/2009 GB

8.2 Remote SETUP – Ethernet

The Ethernet communication port allows the CPC3000 to communicate with computers using
10/100 Bases-T specification. Ethernet communications are transmitted over a standard
RJ-45 cable. Connecting directly to a PC requires a crossover Ethernet cable. Hub or router
connections require a straight Ethernet cable.

Before using Ethernet communication, four parameters must be set up: IP, Netmask, Gateway
and Port. In "Figure - Ethernet SETUP" the Ethernet SETUP screen is shown. Each value entry
key opens an alpha or numeric data entry screen to change values of the Ethernet param-
eters.

8.3 Remote SETUP – USB

The USB communication port allows the CPC3000 to communicate with computers using a
USB cable. The connection on the back panel of the CPC3000 is a Type B receptical.

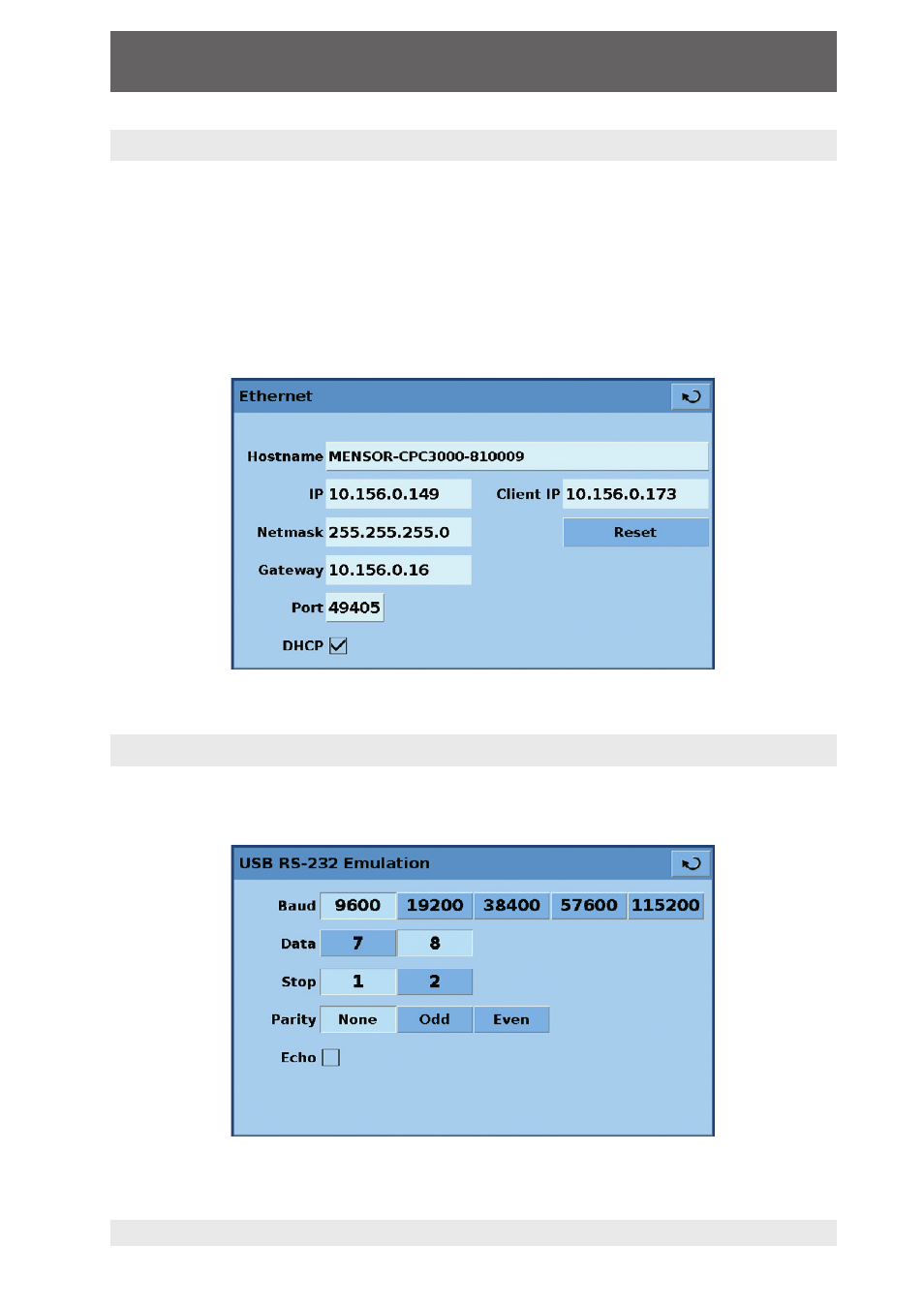

Figure - Ethernet SETUP

Figure - USB SETUP
