Pneumatic High-Speed Pressure Controller CPC3000

WIKA Operating Instruction Pneumatic High-Speed Pressure Controller ∙ Version 1.1

27

11498171.01 08/2009 GB

7.4 Operating modes

The selection keys for the operating modes MEASURE, CONTROL and VENT are located at
the bottom of the main menu.

[MEASURE]:
In MEASURE mode, the instrument measures the pressure connected to the

MEASURE/

CONTROL port. "Figure - MEASURE Mode" shows the state of the isolation valves in
MEASURE mode.

When the CPC3000 is turned off all the valves close and could trap pressu-

rized gas within the pneumatics. It is safe practice to vent after use and

before connecting any devices to the MEASURE/CONTROL port.

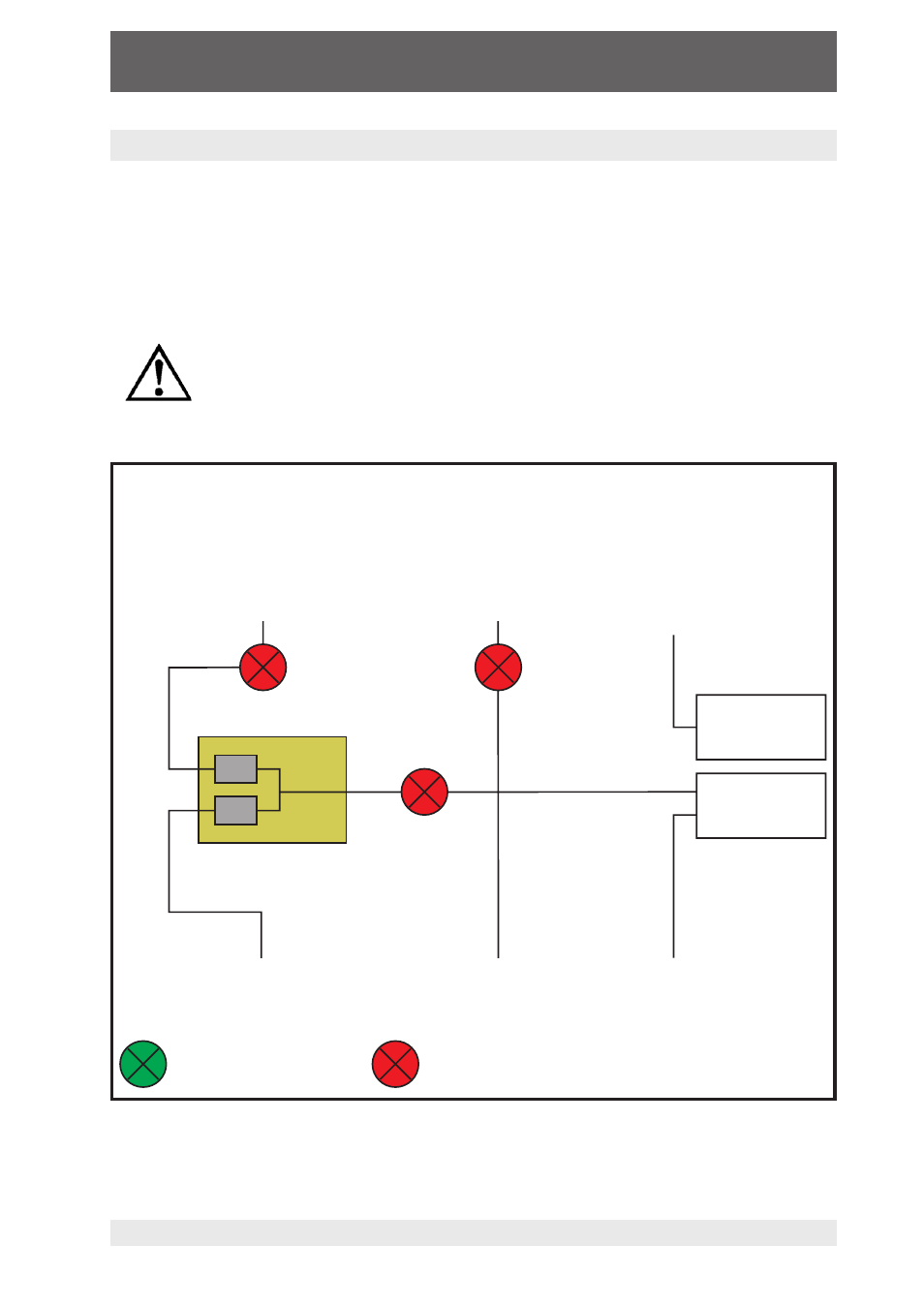

Figure - MEASURE Mode

Warning

MEASURE Mode

Valve is open

Valve is closed

SUPPLY

VENT

Optional barometric

reference

Optiona

barometric

sensor

Pressure

transducer

REFERENCE

MEASURE / CONTROL

EXHAUST / VACUUM

Regulator
is inactive
