Pneumatic High-Speed Pressure Controller CPC3000

WIKA Operating Instruction Pneumatic High-Speed Pressure Controller ∙ Version 1.1

35

11498171.01 08/2009 GB

The USB SETUP key opens a dialog box where baud rate (9600, 19200, 38400, 57600, or
115200), data bit (7 or 6), stop bit (1 or 2), parity (none, odd or even) can be chosen. There
is also a check box that turns echo on (checked) or off (unchecked).

The IEEE address data entry button when pressed will open a data entry dialog box where
the IEEE address can be entered.

In the Communication section there are three remote command set emulation settings. The

[MENSOR] key enables the standard mensor command set, the [SCPI WIKA] key enables
the WIKA SCPI (Standard Commands for Programmable Instrumentation) command set
structure, and the

[DPI510] key enables the command set that will communicate with the

Druck DPI 500 series of controllers. In this section there is also a

[REMOTE MONITOR]

key that will open a screen that shows the most recent commands and responses sent and
received plus any errors. Details of each command set are given in chapter 8.5.

7.8.4 SETUP Info

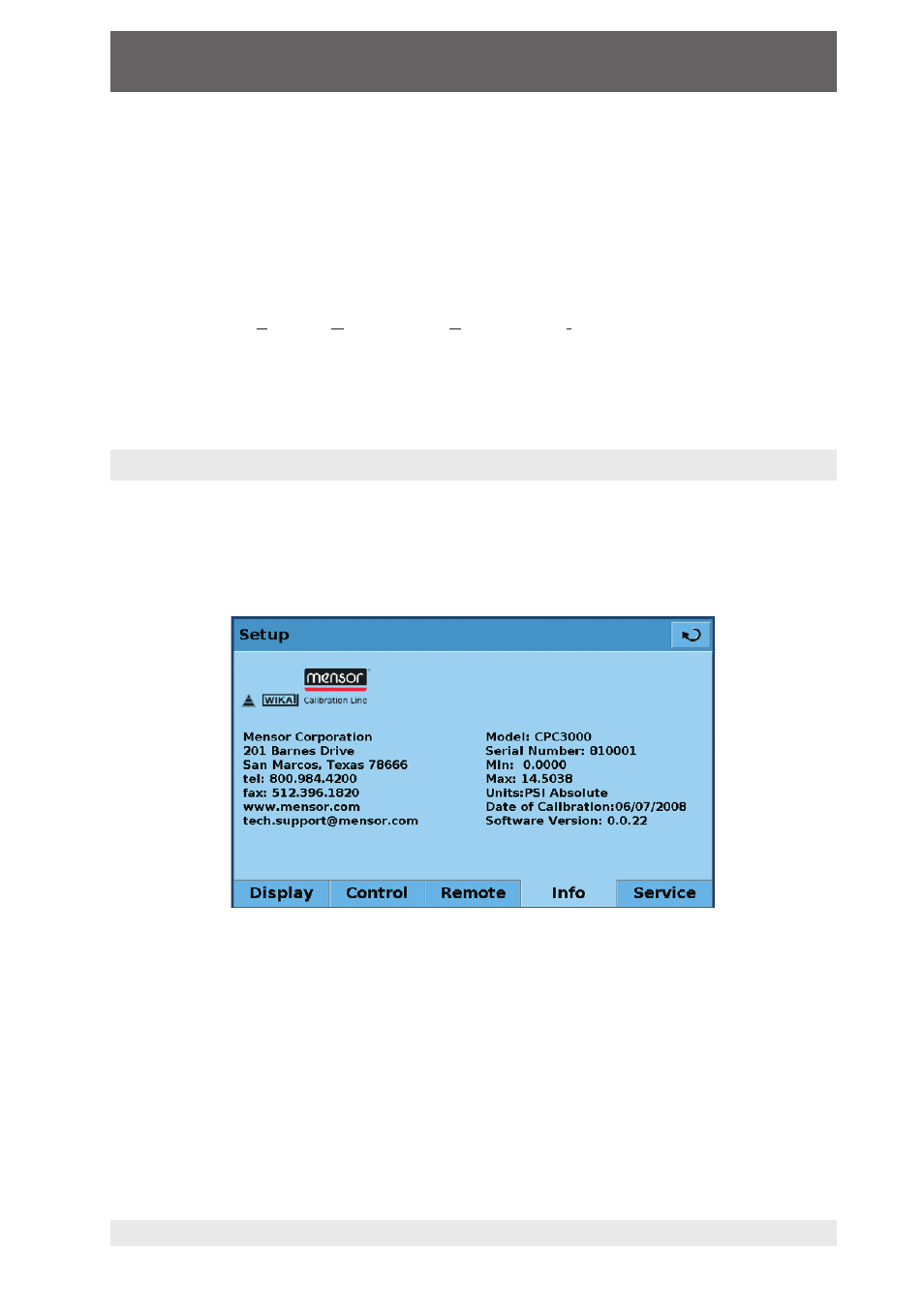

The

MAIN -> [SETUP] -> [INFO] screen, "Figure - SETUP info", provides MENSOR contact

information plus the Model number, serial number, min and max range and the native pressure
units of the internal sensor, date of calibration and the software version installed. This is an
information screen only and does not contain any interactive keys.

Figure - SETUP Info
