I/O Card Hardware Installation Instructions
36
To install an I/O card as shown in
1. Power off the VS-6464DN and all devices connected to it.
2. Using a Phillips screwdriver, loosen the screws at the top and bottom
of the blanking plate.
3. Remove the blanking plate from the slot and store it for possible future
use.
4. Remove the new card from its shipping box and anti-ESD bag.
5. Holding the card by the upper and lower handle, align the card with the

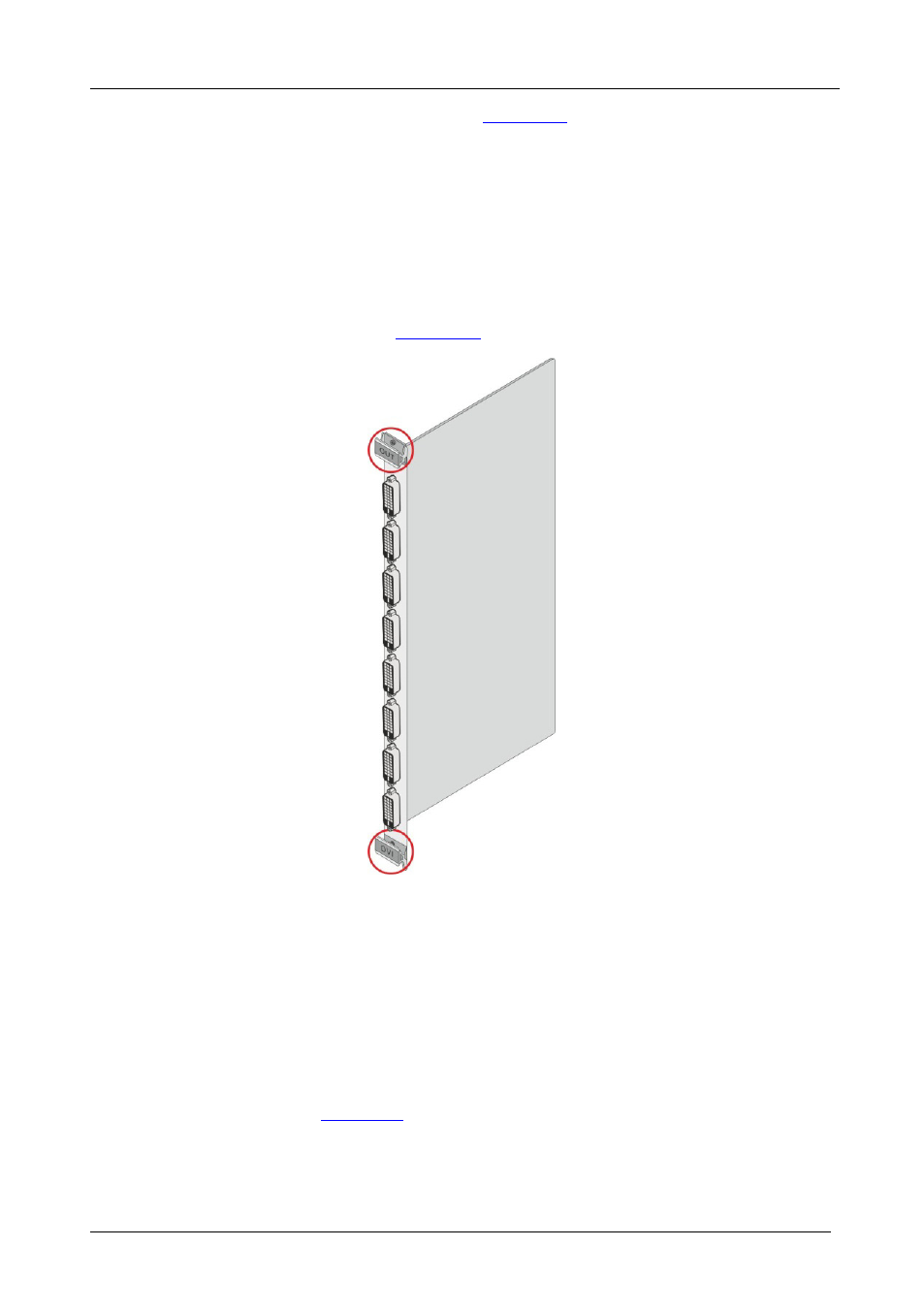

Figure 12: Card Handles
6. Slide the card into the chassis until the front of the card makes contact
with the connector inside the chassis.
7. Press the card firmly into the slot until the connector plate is flush with
the rear panel of the chassis and the connector is fully seated.
8. Using a Phillips screwdriver, tighten the retaining screws at the top and
bottom of the card to secure it to the chassis.
9. Power on the VS-6464DN and follow the procedure to configure the
new card (see
Section 9
).
10. Power on the peripheral devices.
