Defining the VS-6464DN 64x64 Digital Matrix Switcher
7
7
Table 1: VS-6464DN 64x64 Digital Matrix Switcher Front Panel Features
# Feature Function
1
Double-
function
Selector
Buttons
Area
Menu
Button
Functions
ESC Press to exit the current operation
2 EDID Press to assign EDID channels
3 STO 1 Press to store the current setup in the preset
4 ALL 1 Press to connect an input to all outputs
5 OFF 1 Press to turn off an output
6 RCL 1 Press to recall a preset
7 DELAY Press to set the delay between confirming an action and execution of the action
8 ENT Press to complete the input-output setup when using a one-digit number instead of
two digits 2
Press to enter the options in a setup menu
.
9 IR Receiver Infrared remote control sensor
10 IR LED Lights yellow when receiving commands from the IR remote control transmitter
11 POWER Switch Switch to turn the device on and off
12 TAKE Button Press to confirm actions (see Section 7.3.2 )
13 MENU Button Press once to enable the ALL, OFF STO and RCL buttons (see Section 8 ).
Press again to enter the configuration menu (see Section 8.2 ).
When in a Menu, press to cycle through the menu items
14 LOCK Button Press and hold for approximately 2 sec to lock/unlock the front panel buttons (see
Section 7.5 )
15 BREAKAWAY Button Press to exit a Menu (see Section 8 )
16 DEFAULT SETUP Button Press to recall the default setup (see Section 7.4.5 )
17 OUTPUTS/INPUTS
LCD Display
Displays the outputs (upper row) switched to the selected inputs (lower row), (see
Section 7.1 ).
Displays user interface messages and menus
18 Power Supplies Three power supplies providing redundancy (see Section 3.4 )

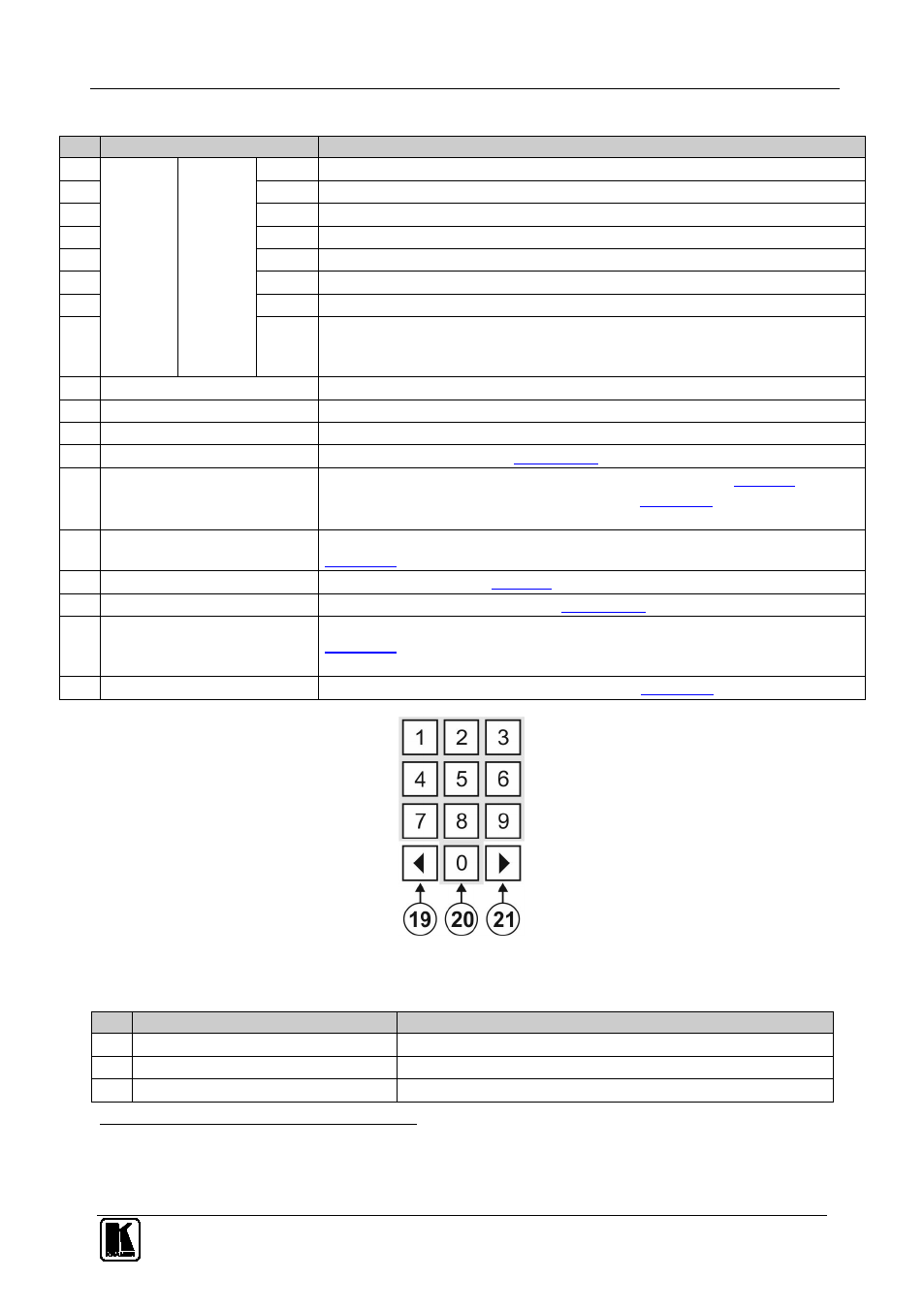

Figure 2: VS-6464DN Front Panel Numeric Keypad
Table 2: VS-6464DN Front Panel Numeric Keypad Labels
# Feature Function
19 ◄ (Backward) Press to shift the sliding window to the right 3
20 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 Numeric keypad, 1 to 0
21 ► (Forward) Press to shift the sliding window to the left 3
1 After pressing the MENU button, this button lights and is enabled
2 For example, to enter input 5, you can either press 05 or 5, ENT
3 Since the LCD display is large enough to show only 13 cross-points out of a total of 64
