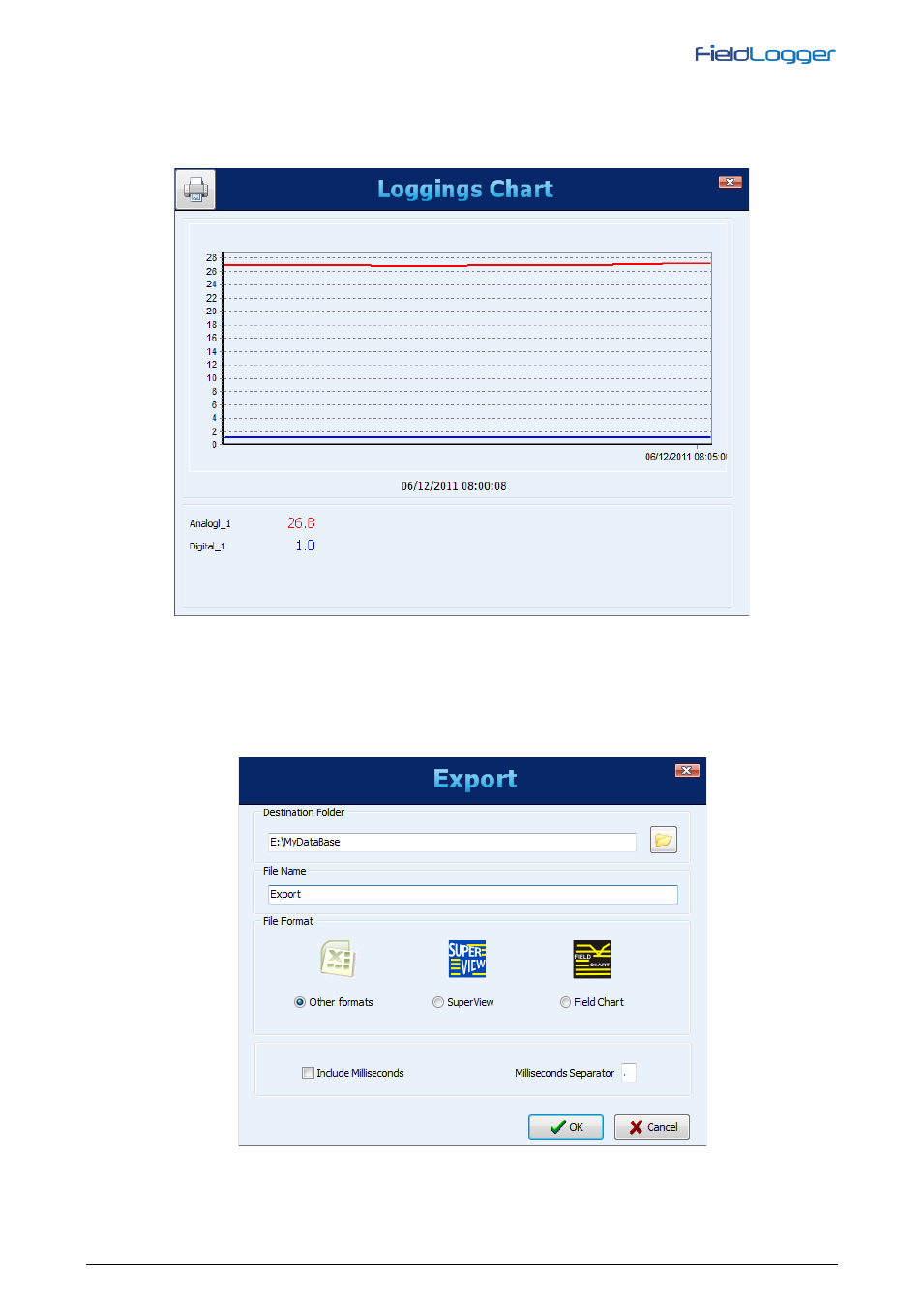

Chart format view
This kind of view shows data in chart format. Passing the mouse over the chart shows the instantaneous values of
each viewed channel at the bottom part of the screen. In order to view data in this format, no more than 16 channels
can be viewed.
Viewing logged data in chart format
There is a button on the upper left corner that allows users to print the chart.
Data export
To export the selected data, you must click on the “Export” button. After a prior processing, a window will appear
where you must select the destination folder, the file name and the file extension to be exported.
When selecting the “Other Formats” option, a second screen will show up, where it will be possible to choose some
parameters related to the chosen format: RTF, HTML, XML, PDF, CSV, SQL, XLSX or DOCX.
