DTC4500e_User Guide_EN, PLT-01669, Rev. 1.1

Page 56

April 2014

4.9

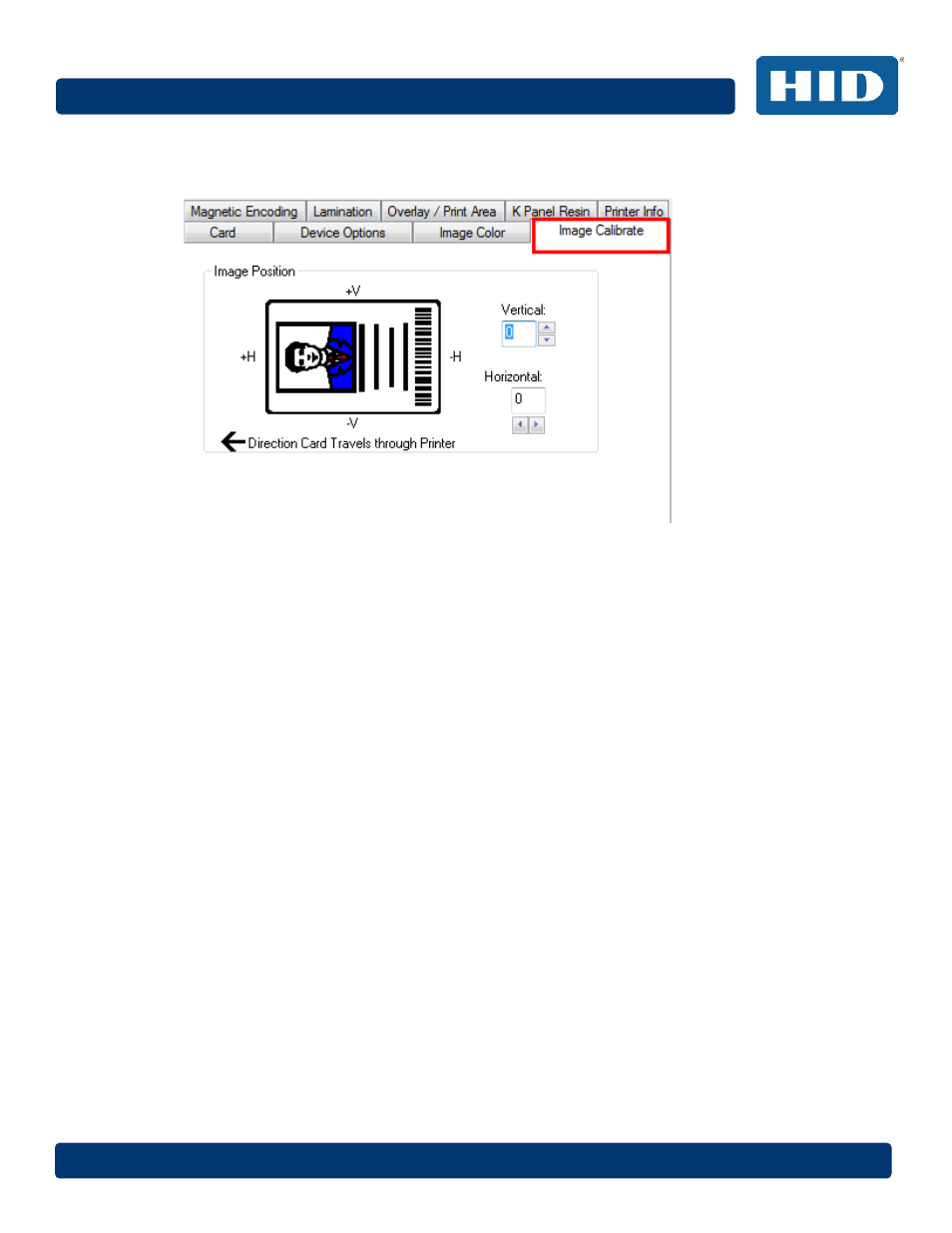

Image Calibrate Tab

Use the

Image Calibrate tab to control the position of the printable area in relation to the card.

Use the

Vertical and Horizontal image position controls to adjust the position of the overall print

area to be precisely centered on a card. The maximum value for the

Vertical and Horizontal

adjustments is ±100 pixels (10 pixels = about .03%, .8mm).

4.9.1

Vertical

Use the

Vertical adjustment to move the image toward the rear of the printer, if the adjustment is a

positive number. Enter a negative number to move the image toward the front of the printer.

4.9.2

Horizontal

Use the

Horizontal adjustment to move the image toward the card output side of the printer, if the

adjustment is a positive number. Enter a negative number to move the image toward the input side

of the printer.
