HID DTC4500e User Guide - Manual (Page 37)

DTC4500e_User Guide_EN, PLT-01669, Rev. 1.1
April 2014 Page 37

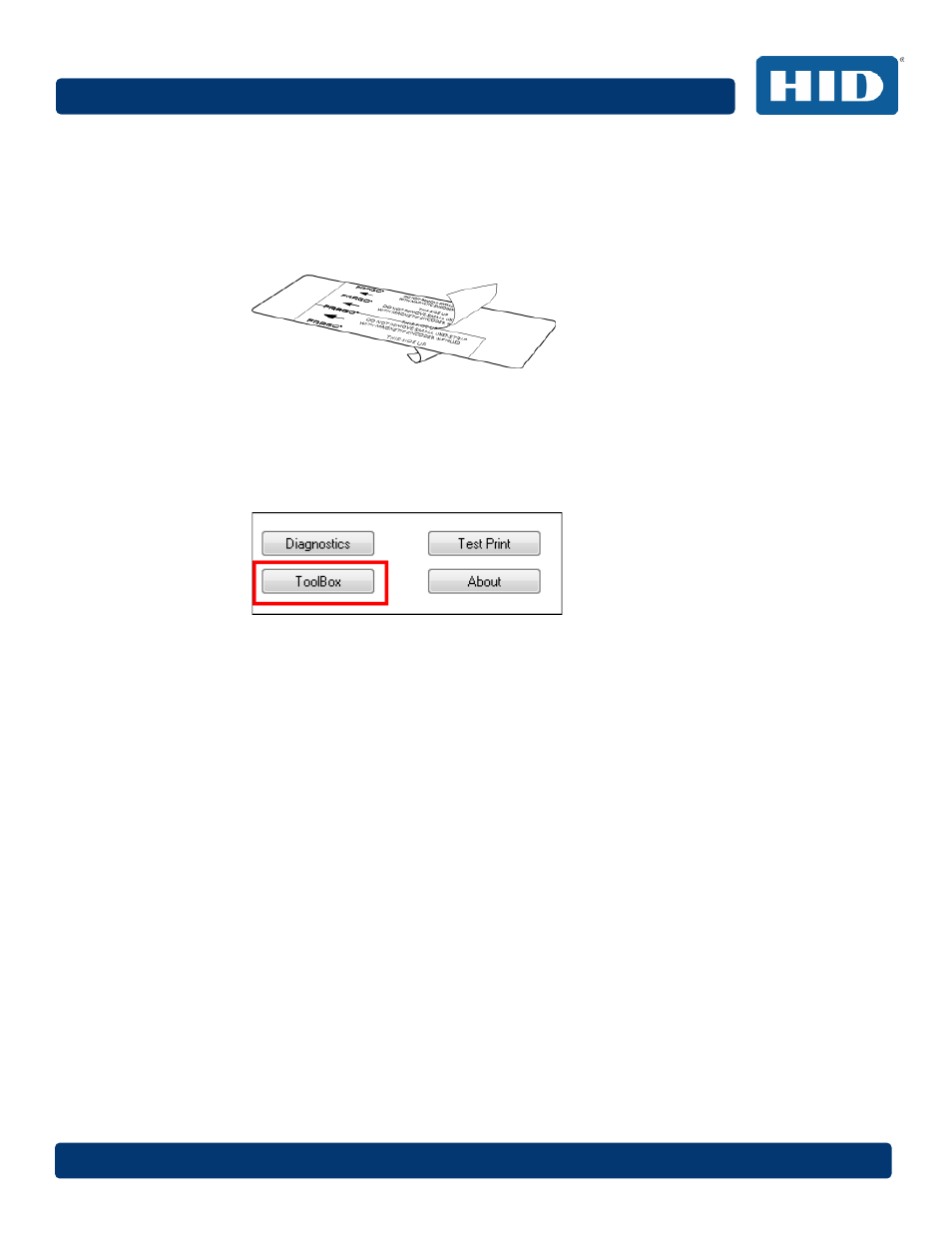

2 Use the cleaning card from the cleaning kit and remove the adhesive backing from both
sides of the card.
If your printer has a magnetic encoder installed, be sure to leave the small liner strip on top
of the cleaning card in place.
This small strip is needed to protect the magnetic head from the adhesives on the cleaning
card.
3 Insert the cleaning card into the single feed card slot until the card stops.
If your printer is equipped with a magnetic encoder, you must insert the
cleaning card with
the printed side up and with the small liner strip towards the front of the printer.
4 From your computer, open the printer driver and select Printing Preferences.
5 On the Card Tab, click Toolbox.
6 Select the Clean Printer tab.
