Chapter 4: SNMPv1 and SNMPv2c
66 Section I: Basic Operations
Creating a New SNMPv1 and SNMPv2c Community
To create a new SNMPv1 and SNMPv2c community, perform the
following procedure:
1. From the Home page, select Configuration.
2. From the Configuration menu, select the Mgmt. Protocols option.
3. Select the SNMP tab.
The SNMP tab is shown in Figure 14 on page 64.
4. In the SNMPv1 & SNMPv2c section, click Configure.
The SNMPv1 & SNMPv2c Communities tab is shown in Figure 15.

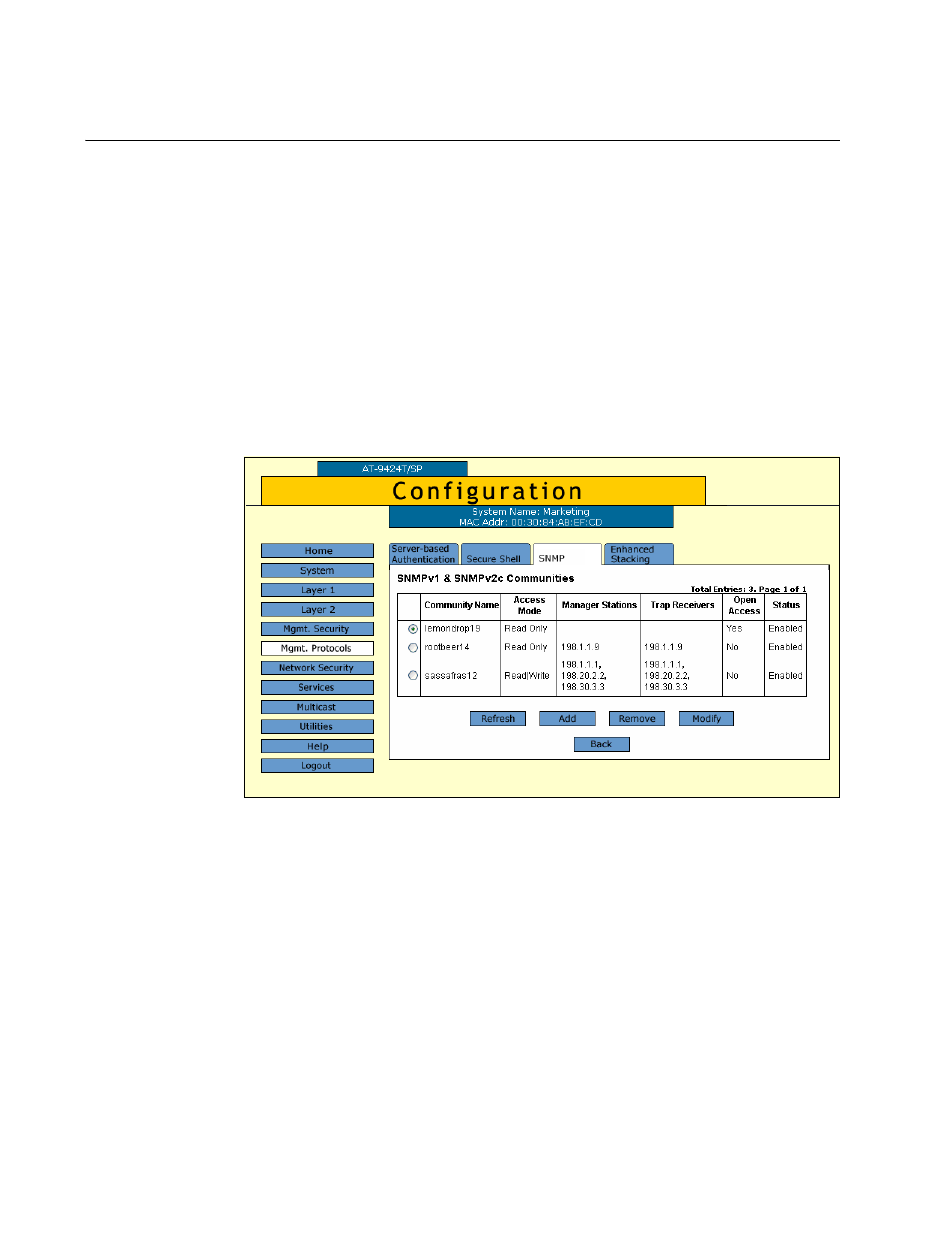

Figure 15. SNMPv1 & SNMPv2c Communities Tab
The table in the tab displays the existing community strings. The
columns of the table are defined here:
Community Name
The name of a community string.
Access Mode
The access mode of a community string. A string with a Read Only
access mode permits the viewing of the MIB objects on the switch. A
string with a Read/Write access mode permits both viewing and
changing the SNMP MIB objects.
