AT-S63 Management Software Web Browser User’s Guide
Section II: Advanced Operations 183
5. To permanently save your changes, select the Save Config option in
the Configuration menu.
Deleting all Flow
Groups, Traffic
Classes, and
Policies
To delete all flow groups, traffic classes, and policies from the switch,
perform the following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the Services option.
3. Select the Policies tab.
The Policies tab is shown in Figure 64 on page 178.
4. Click Purge to delete all flow groups, traffic classes, and policies from
the switch.
The switch deletes all flow groups, traffic classes, and policies.
5. To permanently save your changes, select the Save Config option in
the Configuration menu.
Displaying
Policies
To display the policies, perform the following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select Services.
3. Select the Policies tab.
The Policies tab is shown in Figure 67.

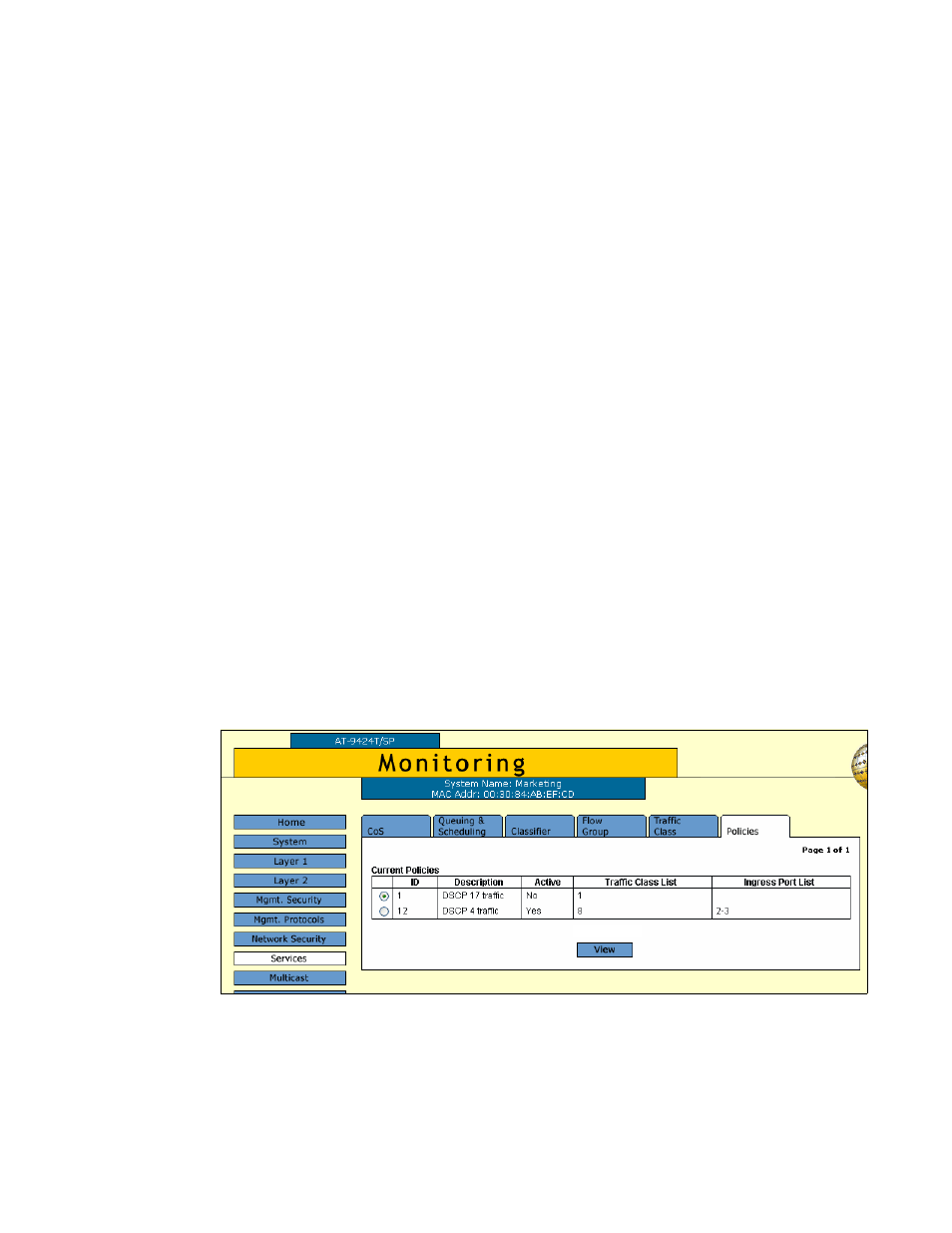

Figure 67. Policies Tab (Monitoring)
The Policies tab displays the existing policies in a table with the
following columns of information:
