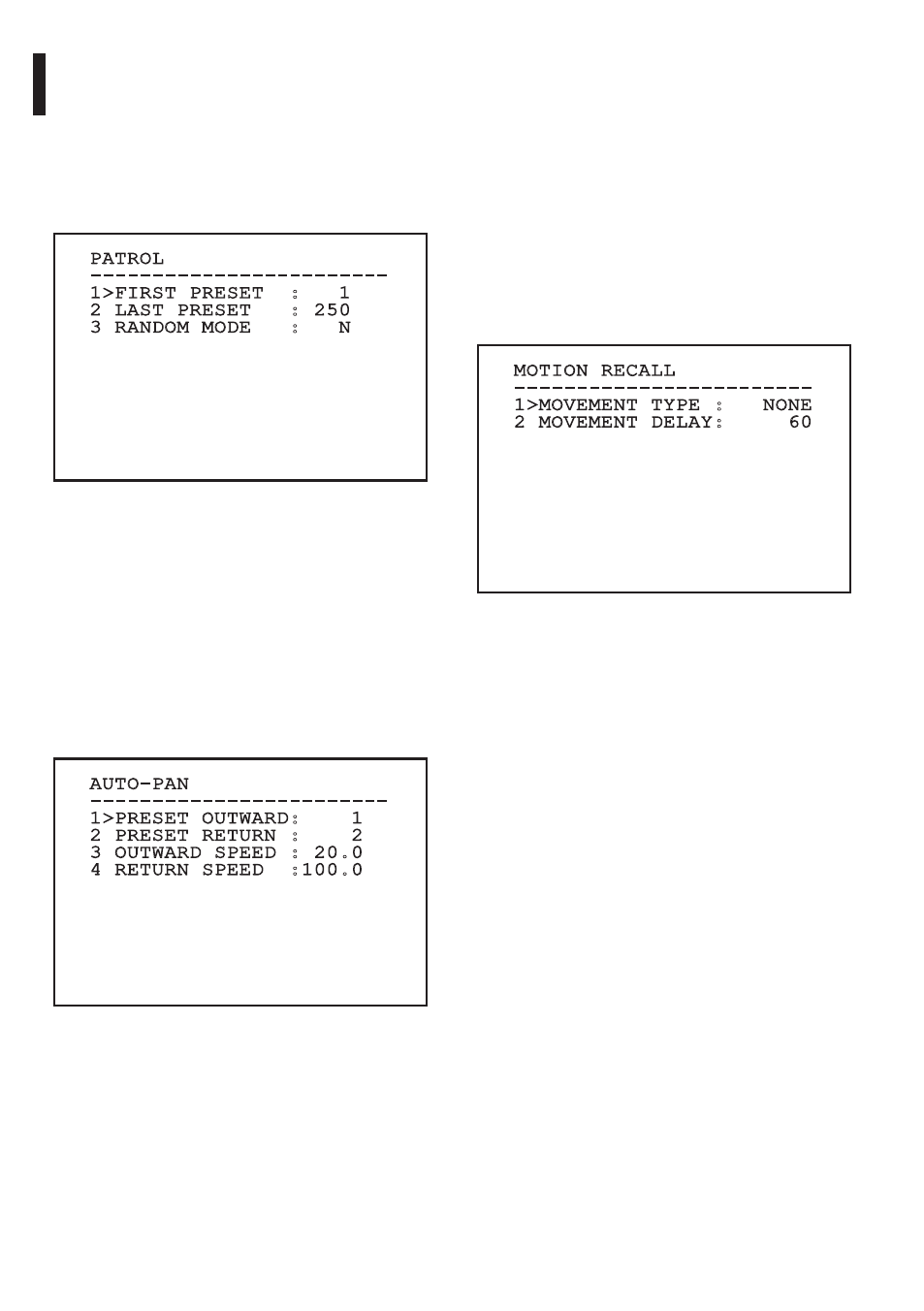

9.1.6.6 Patrol Menu
1. First Preset: Sets the first preset of the Patrol
sequence.
2. Last Preset: Sets the last preset of the Patrol
sequence.
3. Random Mode: Enables random execution. The
sequence is re-calculated on a continuous basis.
PATROL
------------------------
1>FIRST PRESET : 1
2 LAST PRESET : 250
3 RANDOM MODE : N
Fig. 67
9.1.6.7 Autopan Menu
1. Preset Outward: Sets the initial position of the
Autopan.
2. Preset Return: Sets the final position of the
Autopan.
3. Outward Movement Speed: Sets the speed of
the outward movement of the Autopan.
4. Return Speed: Sets the speed of the return of
the Autopan.
AUTO-PAN
------------------------
1>PRESET OUTWARD: 1
2 PRESET RETURN : 2
3 OUTWARD SPEED : 20.0
4 RETURN SPEED :100.0
Fig. 68
9.1.6.8 Motion Recall Menu
It is possibile to set the unit so that, after a given
inactivity interval, it automatically carries out the
movement function set by the operator.
From the menu it is possible to set the following
parameters:
1. Movement Type: Choice of type of movement
to be loaded (None, Home, Autopan, Patrol, Tour
1, Tour 2, Tour 3).
2. Movement Delay: The time (in seconds) that
needs to elapse from the state of inactivity of
the Joystick before loading the set movement.
MOTION RECALL
------------------------
1>MOVEMENT TYPE : NONE
2 MOVEMENT DELAY: 60
Fig. 69
