9.1.5.1 Zone Titling Menu
This function allows setting up to eight (variable
dimension) areas with titling option.
1. Enabling: To enable onscreen display of the
message associated with the area currently
being shown.
2. Edit Area: Allows access to the zone parameter
setting submenu .

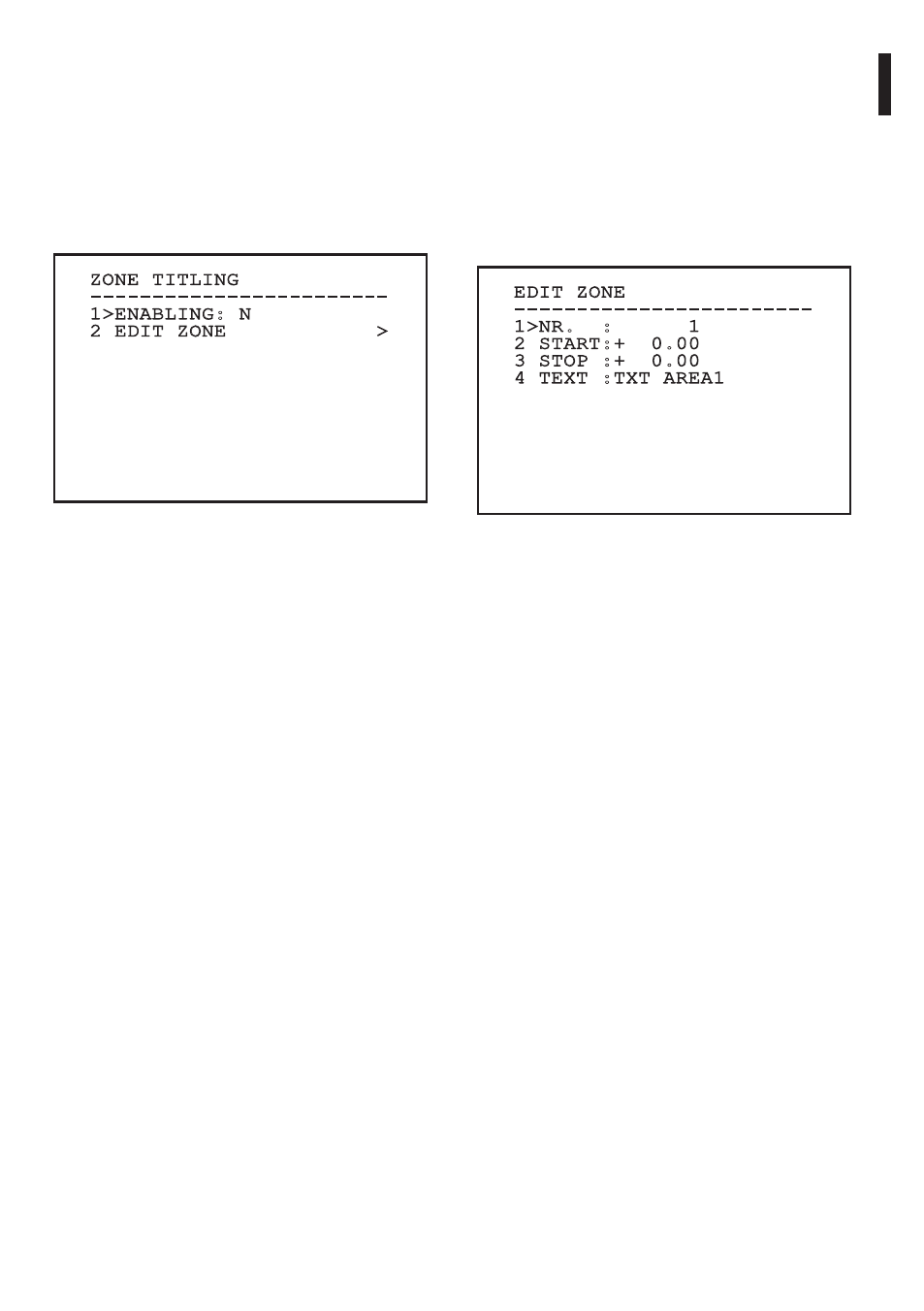

ZONE TITLING
------------------------
1>ENABLING: N
2 EDIT ZONE >
Fig. 44
9.1.5.2 Zone Titling Menu (Edit Area)
Once inside the menu it is possibile to set the
following parameters:
1. Number: Selects the area to be edited.
2. Start: Sets the initial position of the area.
3. Stop: Sets the final position of the area.
4. Text: Modifies the text which is displayed when
moving within the zone.
EDIT ZONE
------------------------
1>NR. : 1
2 START:+ 0.00
3 STOP :+ 0.00
4 TEXT :TXT AREA1
Fig. 45
Example: To enable titling of zone 1 when the device
is between +15° and +45°, it is necessary to:
• Enable area titling by setting Y as the value of
Enabling under the Area Titling menu.
• Set 1 as the value of parameter Nr under the Edit
Area menu.
• Set +15.00 as the value of parameter Start under
the Edit Zone menu.
• Set +45.00 as the value of parameter Stop under
the Edit Zone menu.
• If necessary, edit the displayed text by selecting
Text under the Edit Zone menu.
