6.4.2 Fixing with bracket
The bracket can be fixed to the vertical wall. Use
screws and wall fixing devices that can bear at least
four times the weight of the unit.
Fasten the device to the bracket by using 4 flat
washers, 4 serrated stainless steel washers and
4 stainless steel hex head screws (A4 class 80)
M10x30mm.
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking
compound (Loctite 270) on the 4 screws.
Tighten the screws.
Pay attention to the fixing. Tightening
torque: 35Nm.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.

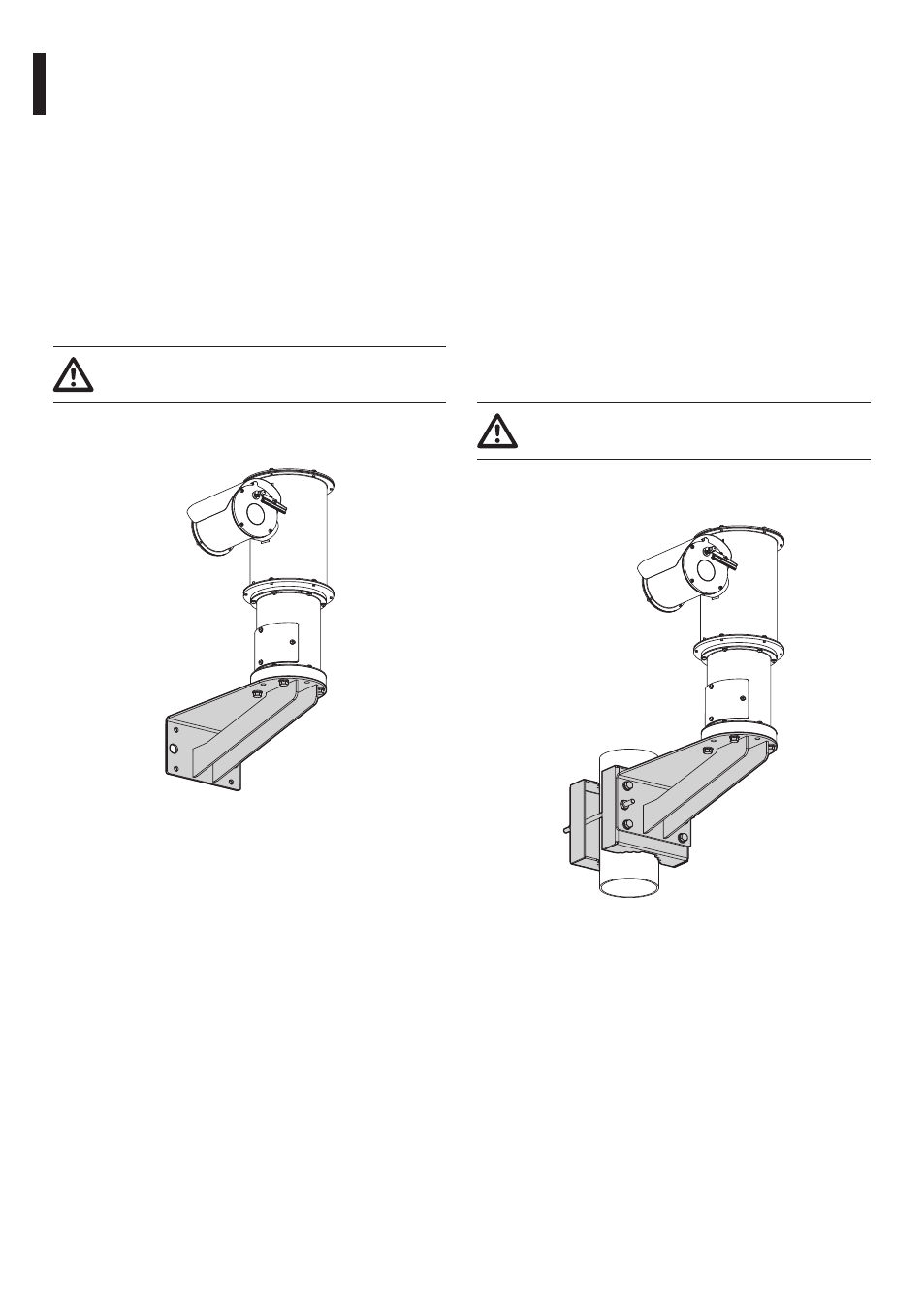

Fig. 7
6.4.3 Fixing the unit to the pole mount
adapter or corner mount adapter
To install the component on a pole or at a wall corner,
first of all fix the pan & tilt unit to the wall bracket (
6.4.2 Fixing with bracket, page 14).
6.4.3.1 Fixing with pole mount
Fix the wall bracket to the pole mount adapter
using 4 washers, 4 stainless steel grower washer
and 4 hexagon stainless steel bolts (A4 class 80)
M10x30mm.
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking
compound (Loctite 270).
Tighten the screws.
Pay attention to the fixing. Tightening
torque: 35Nm.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.
Fig. 8
