9.1.6.1 Manual Control Menu
1. Maximum Speed: Sets the maximum manual
speed.
2. Fast Mode: Enables the Fast mode. When
enabled, this option is used to move fastly the
pan & tilt by moving the joystick to the limit
stop.
3. Speed With Zoom: Enables the option Speed
with Zoom. When enabled, this parameter
automatically slows down the Pan & Tilt speed,
based on the Zoom factor.
4. Tilt factor: Sets the reduction factor of the tilt
axis manual speed.
5. Autoflip: Enables the autoflip function (i.e.
when the tilt reaches the end of the stroke, it
automatically rotates the pan & tilt by 180°),
making it easier to follow the objects along
corridors or roads.
6. Movement Limits: To access the Limits menu.

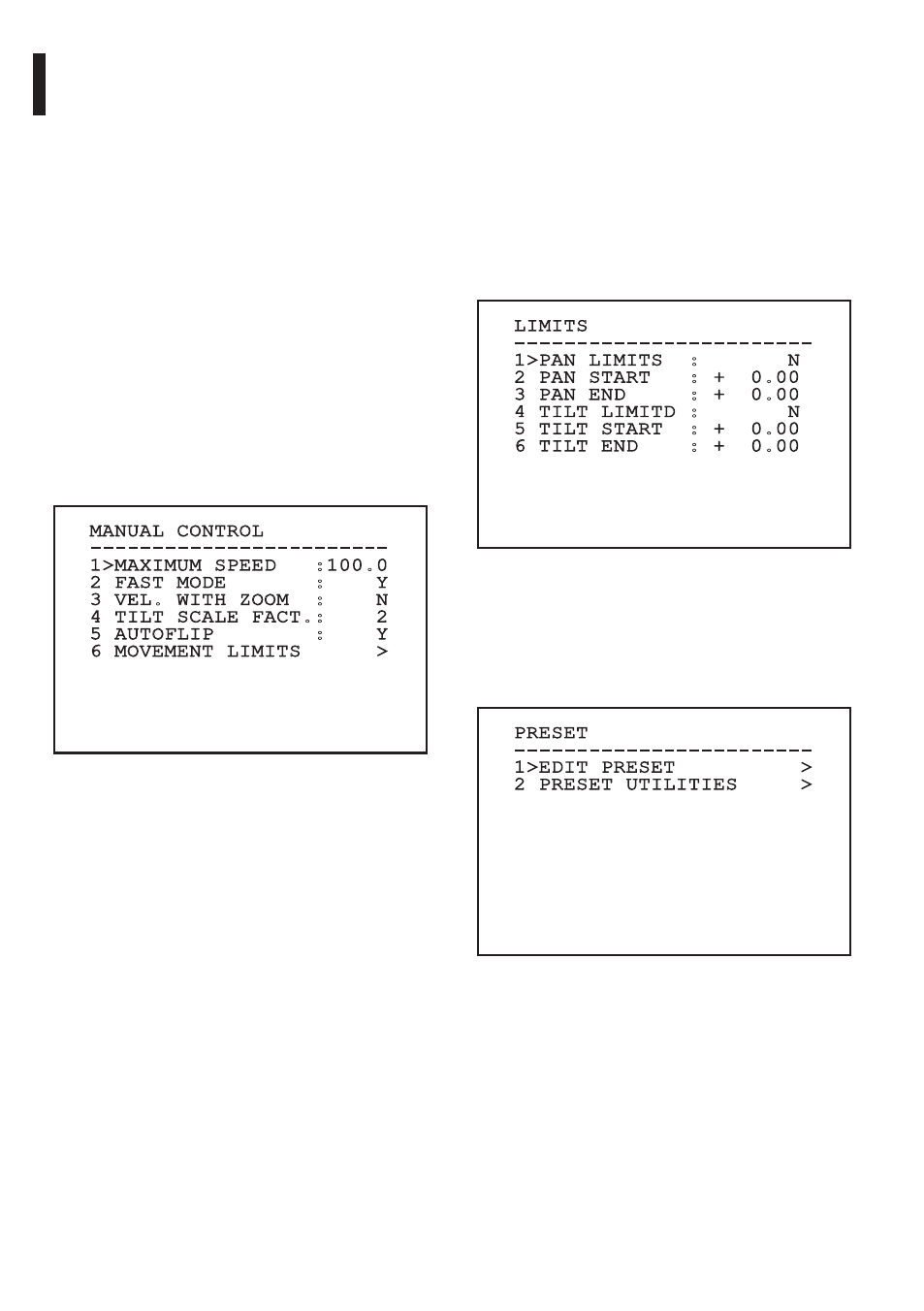

MANUAL CONTROL
------------------------
1>MAXIMUM SPEED :100.0
2 FAST MODE : Y
3 VEL. WITH ZOOM : N
4 TILT SCALE FACT.: 2
5 AUTOFLIP : Y
6 MOVEMENT LIMITS >
Fig. 62
9.1.6.2 Manual Control Menu (Limits)
Once inside the menu it is possibile to set the
following parameters:
1. Pan Limits: Enables the limits of Pan.
2. Pan Start: Sets the start limit of Pan.
3. Pan End: Sets the end limit of Pan.
4. Tilt Limits: Enables the limits of Tilt.
5. Tilt Start: Sets the start limit of Tilt.
6. Tilt End: Sets the end limit of Tilt.
LIMITS
------------------------
1>PAN LIMITS : N
2 PAN START : + 0.00
3 PAN END : + 0.00
4 TILT LIMITD : N
5 TILT START : + 0.00
6 TILT END : + 0.00
Fig. 63
9.1.6.3 Preset Menu
1. Edit Preset: Allows access to Edit Preset menu.
2. Utilities Configuration: Allows access to
Utilities Configuration menu.
PRESET
------------------------
1>EDIT PRESET >
2 PRESET UTILITIES >
Fig. 64
