P/N: 021-00154, Rev. A.6 - updated for V4.7 Tools Page | 91
Range: 16 alpha/numeric characters only with no spaces.
V1, … ,V12:
Scroll down list of display types/formats
Refer to Section 8.2 for an explanation of Display Types.
X & Y These are the X and Y numeric text character position and line coordinates for the Display
variables. The Upper left corner is X = 1 and Y = 1.
Test Value This is the value displayed on the test screen to allow the user to preview the finished
screen while in the programming tool.
DVC61 Program Variables
Note: DVC61 below is the default device name but could be another name of your choosing.
DVC61.Screen
Identifies the screen image to be displayed
DVC61.V1 Get/Set the value for the V1.
Range: 0 to 65535
DVC61.V2 Get/Set the value for the V2.
Range: 0 to 65535
DVC61.V3 Get/Set the value for the V3.
Range: 0 to 65535
******
DVC61.V12
Get/Set the value for the V12
Range: 0 to 65535
DVC61.Backlight Get/Set The value of the Backlight.
Range: 0 to 1023
DVC61.Contrast Get/Set The value of the Contrast Level.
Range: 0 to 1023
DVC61.Status
Get the state of the flag.
Range: 0 = Module is Online
2 = Module is Offline
DVC61.Input_Name
Get the state of the digital input
Range: False or Off, True or On
DVC61 Code Sample
Code Comments
DVC61.Screen = Screen_Name
Point to DVC61 Screen image to display
DVC61.V1 = ana_1 First Variable is set to analog input 1’s value

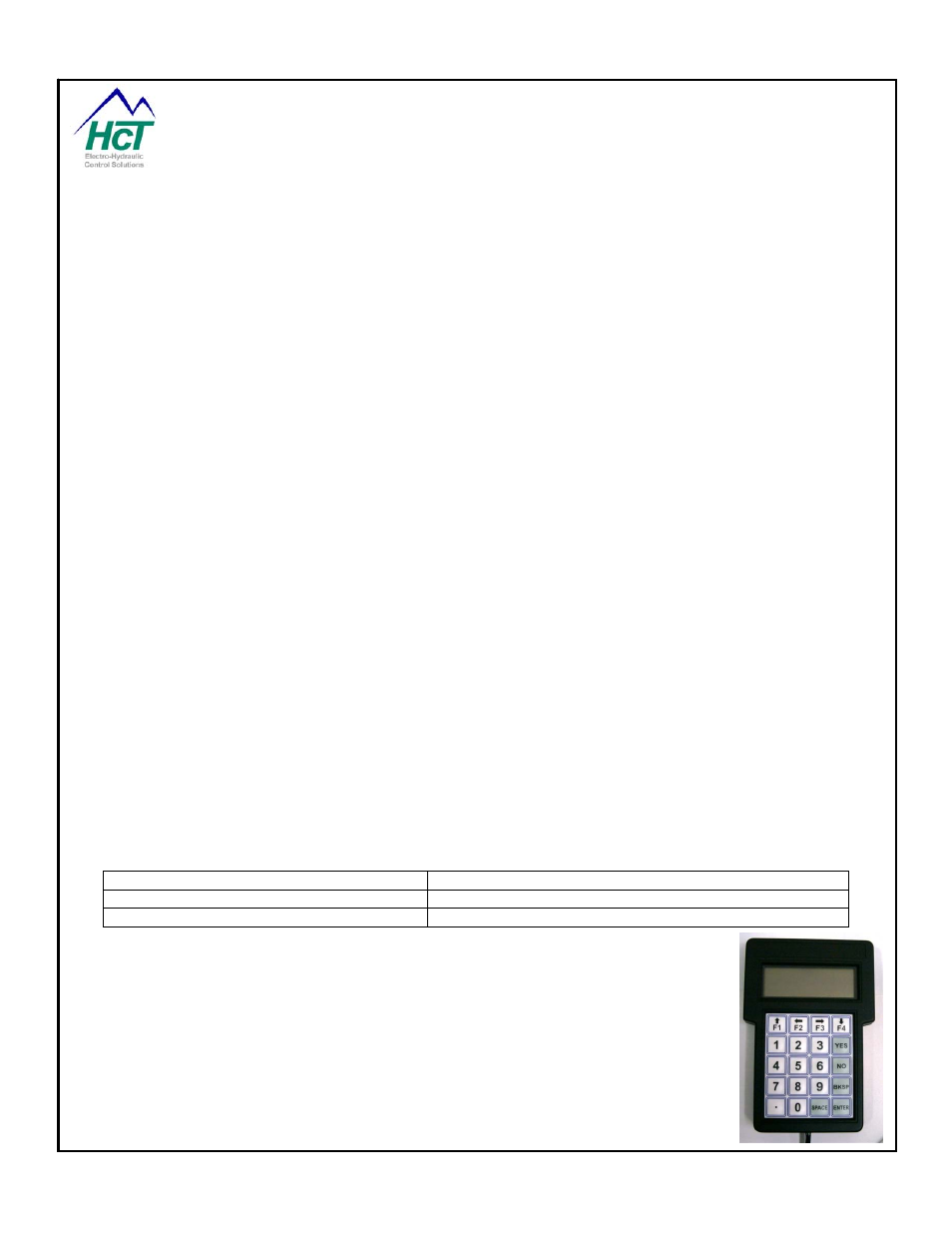

6.7 DVC62
Release 4.7 the DVC tools provides support for the DVC62 input/output device
commonly referred to as a pendant. This device provides a 4 line 20 characters per line
text display plus a 20 key keypad for inputting data to your application. The DVC62
connects to the DVC5/7/10 controller using the RS232 interface. Typical usage of the
DVC62 is for system configuring where your application writes messages to the display
and accepts user input from key depressions and in so doing sets parameters probably
saved into EE memory that determine the operation of the system. The device is
approximately 3” wide by 5” high and easily held in your hand, comes with pendant
