High Country Tek DVC80 - Manual (Page 110)

P/N: 021-00154, Rev. A.6 - updated for V4.7 Tools Page | 110

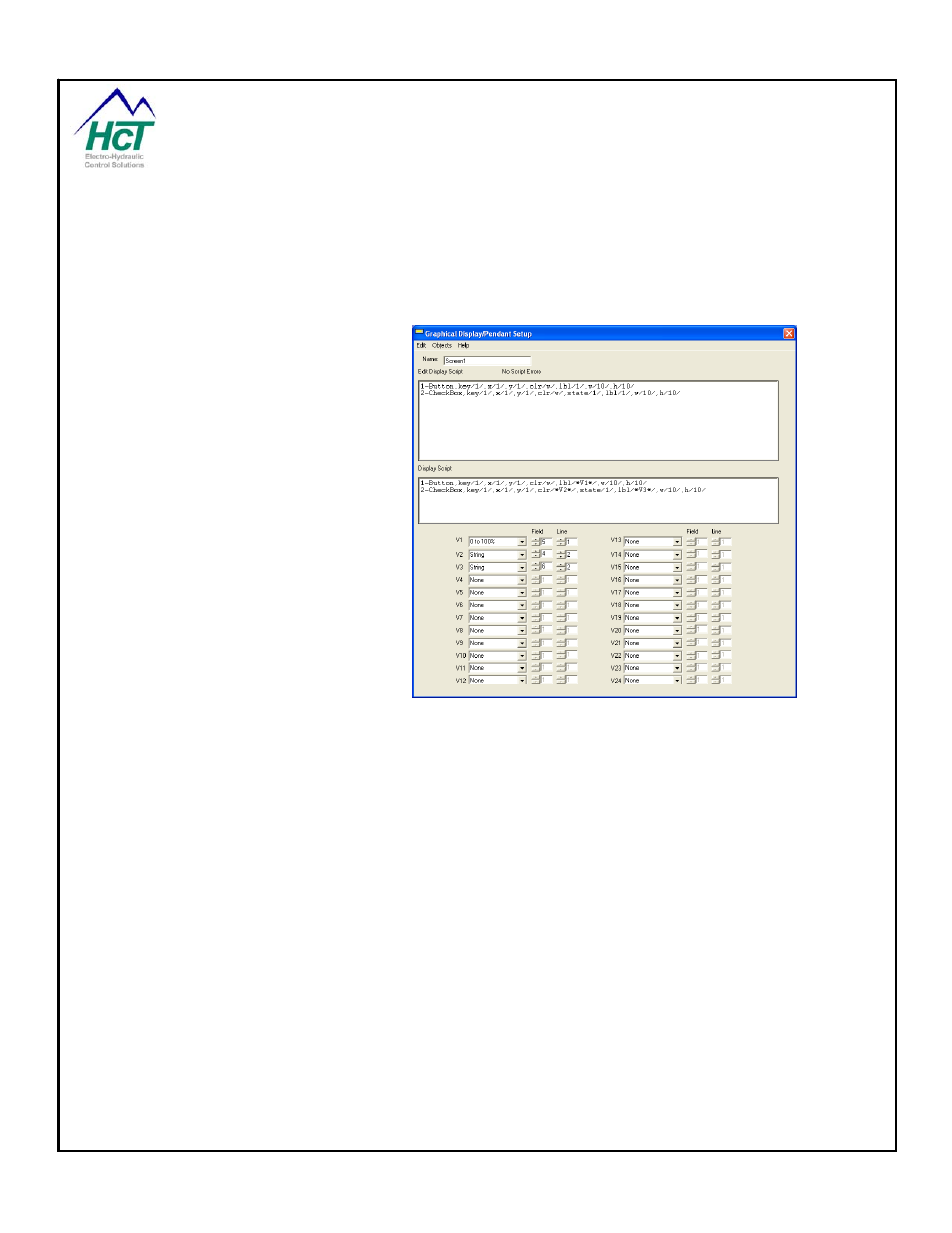

To specify the objects for a screen you first open the screen by double clicking the screen icon.
Using the Objects Menu you select the object types you wish to add to your screen from the 25 objects listed.
The object types are as follows:
Button
ButtonArray
ButtonBitmap
ButtonNumeric
CheckBox
FixedButtons
Gauge
GaugeMultiValue
GroupBox
Ellipse
Label
Line
ListBox
Numeric
Rectangle
Scale
Slider
Tachometer
Text
Text=Numeric
Text_Numeric_Text
TrendChart
VerticalText
VirtualDisplay
The Objects and their Fields are:
1-Button,key/1/,x/1/,y/1/,clr/w/,lbl/1/,w/10/,h/10/
2-ButtonArray,lokey/1/,col/5/,row/2/,x/10/,y/10/,clr/w/,w/10/,h/10/,t1/ /,t2/ /,t3/ /,t4/ /,t5/ /,t6/ /,t7/ /,t8/ /,
t9/ /,t10/ /,t11/ /,t12/ /
3-BitmapButton,key/1/,x/1/,y/1/,clr/r/
4-ButtonNumeric,key/1/,x/1/,y/1/,clr/w/,lbl/1/,value/10/,w/10/,h/10/
5-CheckBox,key/1/,x/1/,y/1/,clr/w/,state/1/,lbl/1/,w/10/,h/10/
6-FixedButtons,w/25/,h/20/,clr/w/,t1/<1/,t2/<2/,t3/<3/,t4/<4/,t5/<5/,t6/6>/,t7/7>/,t8/8>/,t9/9>/,t10/10>/
7-Gauge,x/1/,y/1/,clr/w/,value/512/,w/20/,h/40/,min/0/,max/1023/
8-GaugeMultiValue,x/1/,y/1/,w/20/,h/100/,c1/r/,c2/b/,c3/g/,v1/30/,v2/30/,v3/30/
9-GroupBox,x/1/,y/1/,clr/w/,lbl/Title/,w/10/,h/10/
10-Ellipse,x/1/,y/1/,clr/w/,w/10/,h/10/
11-Image,x/1/,y/1/,clr/T/,imageno/0/,w/10/,h/10/
12-Label,x/1/,y/1/,clr/w/,text/..../,w/30/,h/20/,size/10/, justify/c/
13-Line,x1/1/,y1/1/,x2/10/,y2/10/,clr/b/,w/30/
14-ListBox,key/1/,x/1/,y/1/,clr/w/,text/..../,w/100/,h/20/,size/10/
15-Numeric,x/1/,y/1/,clr/w/,value/0/,w/30/,h/20/,size/10/, justify/c/
16-Rectangle,x/1/,y/1/,clr/w/,w/30/,h/20/
17-Scale,x/1/,y/1/,clr/b/,lng/20/,min/0/,max/100/,size/10/,side/l/
18-Slider,key/1/,x/1/,y/1/,clr/b/,min/0/,max/100/,value/50/,w/30/,h/20/,dir/v/
19-Tachometer,x/1/,y/1/,clr/w/,value/10/,min/0/,max/100/,radius/10/,w/30/
