The following gives the definition as well as an overview of each
of the fields in the Output Groups screen:
Low Side Name
The name used in your application code to access this PWM
output and it’s associated properties.
Range: 16 Characters with no spaces.
Usable characters are A-Z, a-z, 0-9, and "_".
Rules
:
The first character cannot be a number.
Compiler Keywords or other Names already in use are not valid.
A valid example is "Boom_Fwd".
Current P
PWM
DUAL COIL HIGH-SIDE
To PWM OUT
To HS OUT
To HS OUT
PWM
BANG
SINGLE COIL HIGH-SIDE
To PWM OUT
To HS OUT To HS OUT
BANG
To PWR COM
BANG
SINGLE COIL LOW-SIDE
To PWM OUT
To HS OUT To HS OUT
BANG
To PWR COM
BANG
BANG
To PWR COM
To +POWER IN
PWM
HIGH-SIDE ONLY
To HS OUT
To HS OUT
To PWR COM
PWM
BANG
BANG BANG
BANG

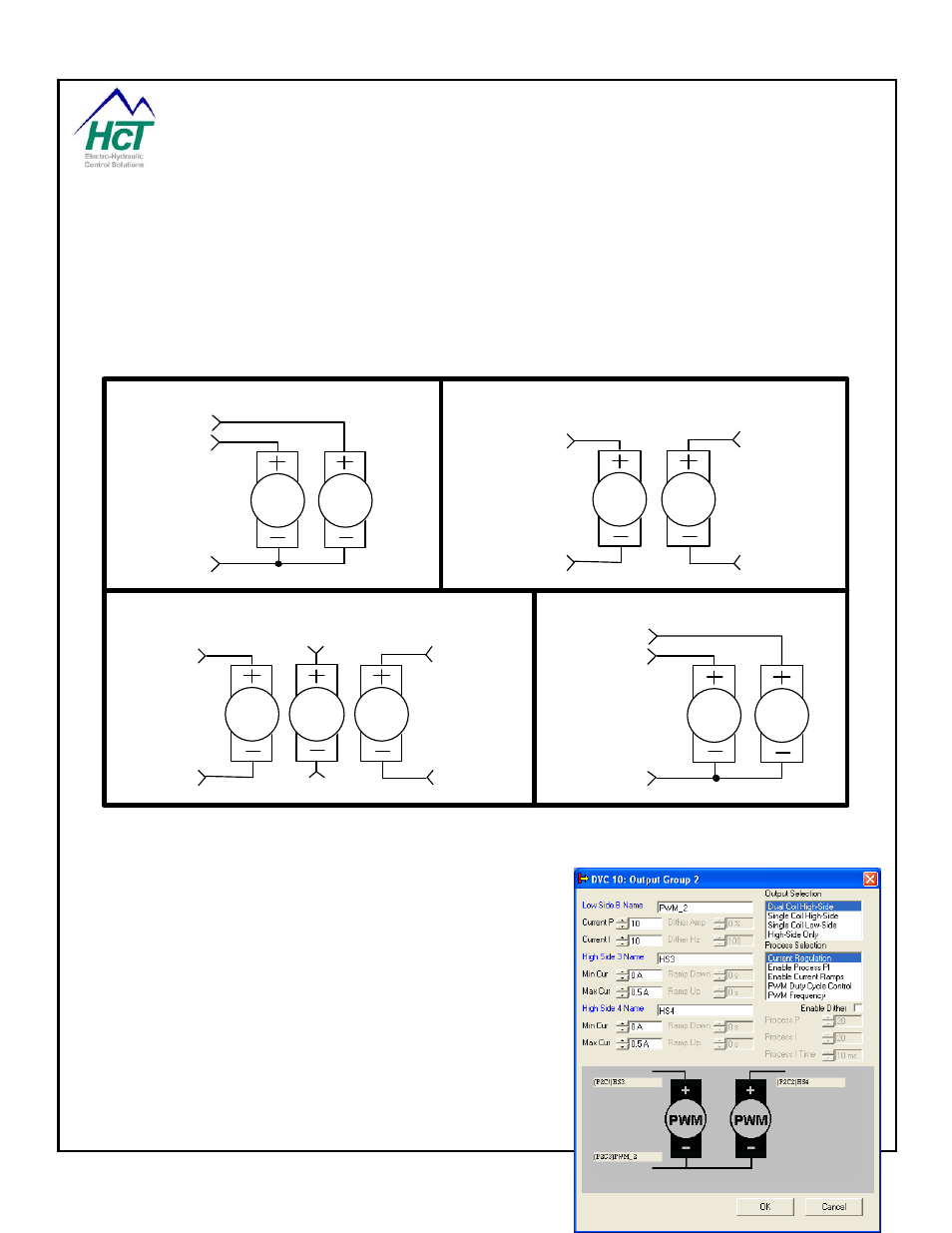

OUTPUT GROUP CONFIGURATIONS
FIGURE 4
