(2) valves, 1.7A each 3.4A
Total current 3.55A
Of course, a AGC fuse of 3.55A is not available, use a fuse size near this calculated value.
2 Software Installation
2.1 System Requirements
Windows XP Professional
Windows Vista Business or Ultimate
40 megabytes of disk space to support a complete system install
PC with Serial Port - RS232 or USB port
For USB ports you need a USB to RS232 converter (i.e. Dongle)
DVC5/7/10 controller module
DVC10 serial cable
2.2 Installation
When you install the DVC development software following the steps outlined here you will have one
Programming Tool and one Program Loader Monitor that supports both the DVC5 and the DVC10.
To install the DVC development software, close all program applications. Insert the DVC Software CD in the
CD-ROM drive, and wait for the installer program to execute. The installer will guide you through the installation
procedure.
2.3 Software Overview
The DVC software package includes two applications named "Programming Tool" and "Program Loader
Monitor". These applications provide the means to configure, design, create, load, and monitor the user
application. The Programming tool is
used to
configure the inputs and outputs and
program the control logic for an
application. The Program Loader
Monitor
is used to download the user
application program files to the
DVC5/7/10. It also performs real time
monitoring of your system
inputs/outputs. Also, you can modify
some
input/output configuration settings (i.e. like
analog ramp rates). Another feature of the
Program Loader Monitor is it allows you to
see and change EEmem variable
settings. For example, this is a
convenient way to have the user
interact
with the system to change a
maximum pressure setting or input a
customer job number as the system is
running.

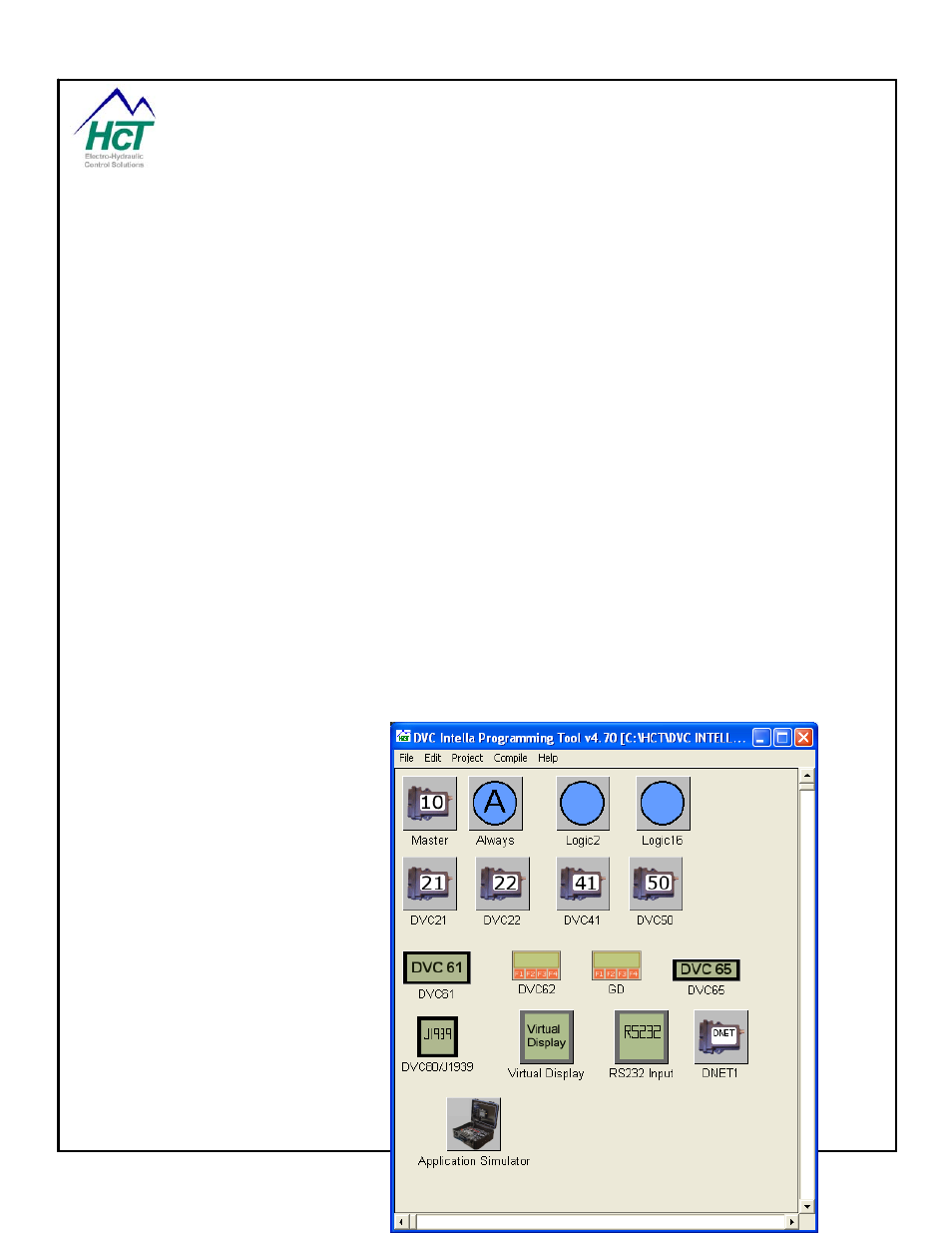

Programming Tool
