BIOS / PLM Version 4.2 and Higher
This procedure should be used with PLM version 4.2 and higher.
1. Within the PLM, Select the DVC10 MASTER switch to open the Main DVC10 Screen. Reference Figure, 1.

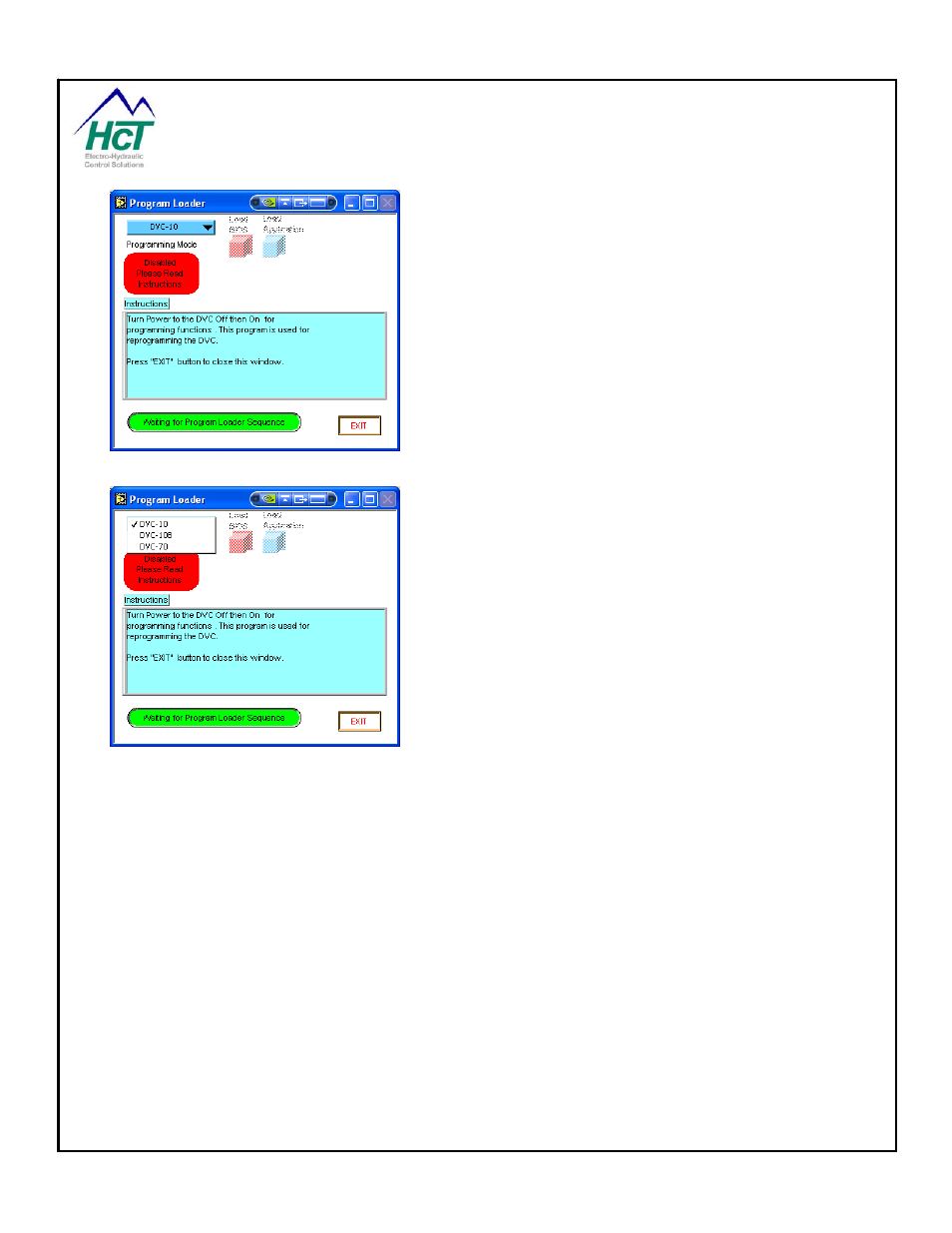

2. Within the Main DVC10 Screen Select the Program Loader switch to open the Program Loader Screen.
Reference Figure, 2 and 3.
3. Cycle Power and wait for the unit to enter programming mode signified by the red indicator on the
programming loader screen turning green and the programming buttons to be active.
4. Select the Load BIOS switch and load the DVC10 BIOS version 4.x.
5. When the BIOS has finished loading, select the Load Application switch and load an application.
6. After the Application has loaded Cycle Power.
7. The unit should now be operational.
