P/N: 021-00154, Rev. A.6 - updated for V4.7 Tools Page | 104
Engine Oil Pressure 254, 239 65263 FEEF 4 1 4 kPa/bit 0
Coolant Pressure 254, 239 65263 FEEF 7 1 2 kPa/bit 0
Level /
Pressure
Coolant Level 254, 239 65263 FEEF 8 1 0.4 %/bit 0
Cruise
Control/
Vehicle
Speed Wheel Based Vehicle Speed 254, 241 65265 FEF1 2 2 1/256 Km/h/bit 0
Fuel Rate 254, 242 65266 FEF2 1 2 0.05 L/h/bit 0
Instantaneous Fuel Economy 254, 242 65266 FEF2 3 2 1/512 km/L/bit 0
Fuel
Economy
Average Fuel Economy 254, 242 65266 FEF2 5 2 1/512 km/L/bit 0
Barometric Pressure 254, 245 65269 FEF5 1 1 0.5 kPa/bit 0 Ambient
Condition
s
Air Inlet Temperature 254, 245 65269 FEF5 6 1 1 C/bit -40
Boost Pressure 254, 246 65270 FEF6 2 1 2 kPa/bit 0
Intake Manifold Temp 254, 246 65270 FEF6 3 1 1 C/bit -40
Air Filter Differential Pressure 254, 246 65270 FEF6 5 1 0.05 kPa/bit 0
Inlet/Exha
ust
Condition
s
Exhaust Gas Temperature 254, 246 65270 FEF6 6 2 0.0312
5 C/bit -273
Electrical Potential (Voltage) 254, 247 65271 FEF7 5 2 0.05 V/bit 0 Vehicle
Electrical
Power
Battery Pot. Voltage
(Switched) 254, 247 65271 FEF7 7 2 0.05 V/bit 0
Transmission Oil Pressure 254, 248 65272 FEF8 4 1 16 kPa/bit 0 Transmis
son
Fluids
Transmission Oil Temperature 254, 248 65272 FEF8 5 2 0.0312
5 C/bit -273
Injector Metering Rail 1 Pres 254, 219 65243 FEDB 3 2 1/256 MPa/bit 0 Engine
Fluid
Level/Pre
ssure
Injector Metering Rail2 Pres 254, 219 65243 FEDB 7 2 1/256 MPa/bit 0
6.11 Add Device Net Module
Communication between a DVC5/7/10 Master controller
and a CAN Bus Device Net module is possible using the
Programming Tool. To communicate with a CAN Bus

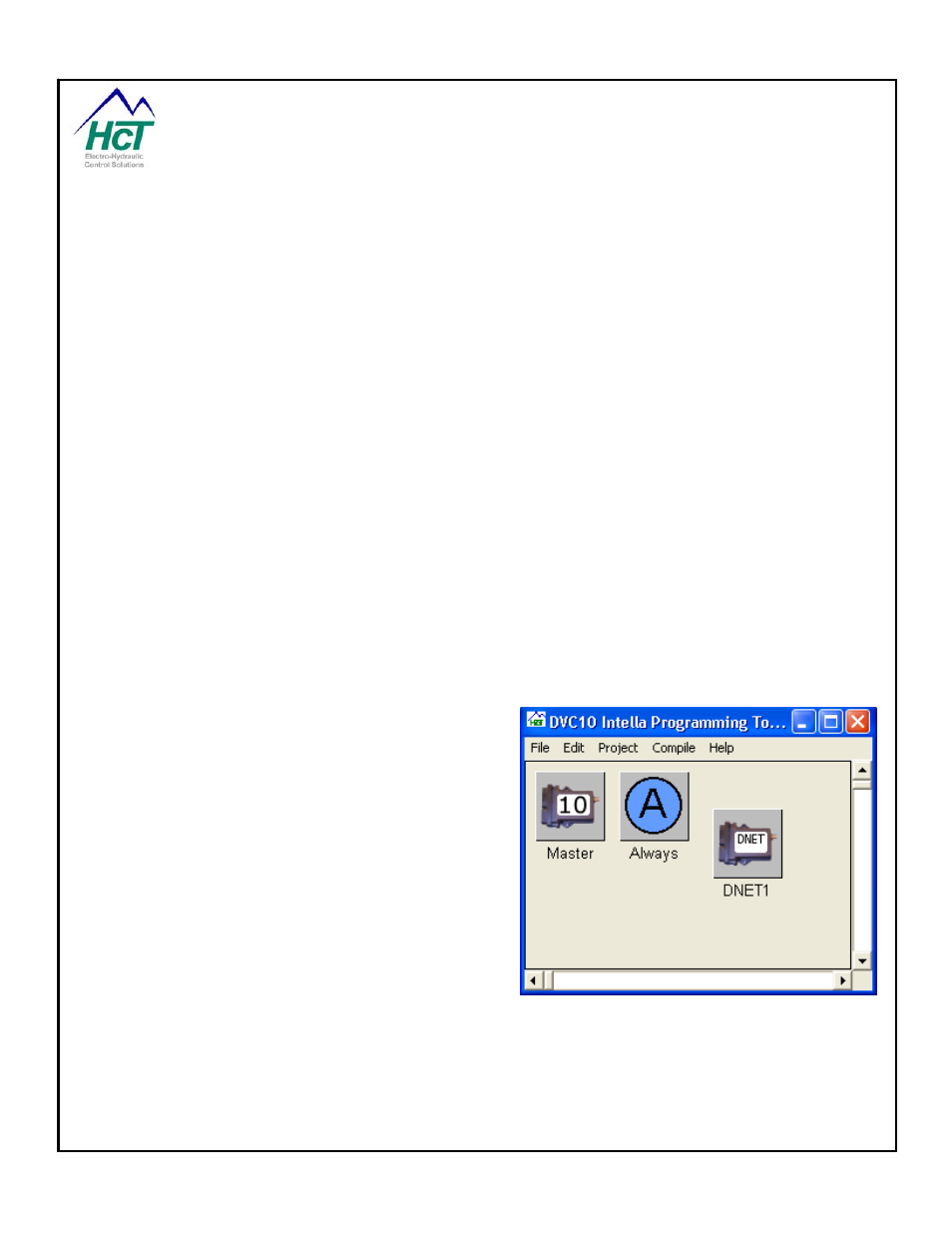

Device Net device first add a DNET icon into your
project by right clicking in the project window and
selecting the Add Device Net module option from the
popup menu. Next, double click the DNET icon to bring
up the Device Net module window as shown. Using this
window you define the variable names used to send or
receive information from the Device Net module with the
specified MAC ID.
A brief explanation follows that will help explain how
communication is accomplished between the DVC5/7/10
and a Device Net module. The DVC BIOS uses the
explicit message feature of the Device Net protocol.
Each CAN Bus message has an eight byte data field. The first byte of which is the explicit message header.
The other 7 bytes contain the actual data. Messages of more than 7 bytes will take multiple messages to be
transmitted. Each message uses the header to identify the part of the message being received. Your
application will not see the header byte but will have to assemble multiple bytes into application variables where
needed.
Within the Device Net Module window are several fields. The Name field identifies the device. It is the prefix to
reference consume and produce variables. The MAC ID field represents the CAN Bus identifier for the device.
