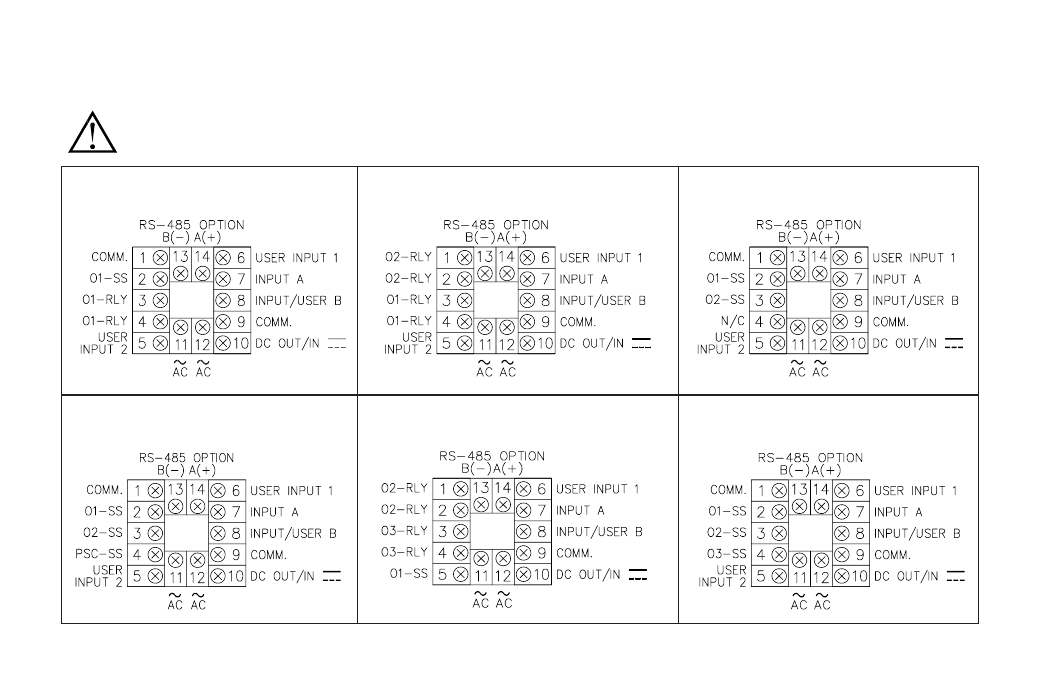

APPENDIX “E” - TERMINAL CONFIGURATIONS FOR C48 COUNTERS
C48CXX0X VERSIONS (85 to 250 VAC POWERED)
C48CB - THREE PRESET SOLID-STATE OUTPUT
C48CB - THREE PRESET RELAY OUTPUTS (02 & 03)
SOLID-STATE OUTPUT (01)
C48CP - DUAL PRESET W/PRESCALER OUTPUT
SOLID-STATE OUTPUTS
C48CS - SINGLE PRESET RELAY AND
SOLID-STATE OUTPUTS
C48CD - DUAL PRESET RELAY OUTPUTS
C48CD - DUAL PRESET SOLID-STATE OUTPUTS
CAUTION: Observe proper polarity when connecting DC voltages. Damage to the unit will occur if polarity is reversed.
