1. DISPLAY: 2 Line by 6 digit LCD display. Positive image reflective or
negative image transmissive with red (top line) and green (bottom line)
backlighting
Main Display: 0.3” (7.62 mm) high digits
Secondary Display: 0.2” (5.08 mm) high digits
Annunciators:
Value: PRS, 1, 2, and 3
Output: 01, 02, and 03.
2. POWER REQUIREMENTS:
AC Versions (C48CXX0X):
AC Power: 85 to 250 VAC, 50/60 Hz, 9 VA max.
DC Power: 11 to 14 VDC @ 150 mA max. (Non PNP output models)
Note: AC Versions with PNP outputs cannot be powered from DC.
DC Versions (C48CXX1X):
CONTINUOUS:
DC Power: 18 to 36 VDC; 5.5 W max.
AC Power: 24 VAC
±10%; 50/60 Hz; 7 VA max.
Note: The +10% tolerance range on AC input voltage must be strictly
adhered to. DO NOT EXCEED 26.4 VAC.
PEAK (START-UP CURRENT):
AC or DC Power: 500 mA peak start-up current for 10 msec max.
3. MEMORY: Nonvolatile E 2 PROM retains all programmable parameters and
count values.
4. SENSOR POWER: +12 VDC ( ± 15%) @ 100 mA max.
5. COUNT INPUTS A & B: Accepts count pulses from a variety of sources,
DIP switch selectable.
Current Sourcing: 3.9K
Ω pull-down, V
IN
max = 30 VDC
Current Sinking: 7.8K
Ω pull-up to 12 VDC; I
SNK
= 1.8 mA max.
Debounce: 50 Hz max.
Lo Bias: V
IL
= 1.5 VDC max., V
IH
= 3.75 VDC min.
Hi Bias: V
IL
= 5.5 VDC max., V
IH
= 7.5 VDC min.
6. USER INPUTS: Configurable as current sinking (active low) or current
sourcing (active high) inputs via a single plug jumper.
Current Sinking : V
IL
= 1.5 VDC max, 22 K
Ω pull-up to 5 VDC.
Current Sourcing : V
IH
= 3.5 VDC min., V
IN
max = 30 VDC; 22 K Ω pull-
down.
Response Time = 10 msec max.
Inhibit Response Time = 250
µsec max.
-39-

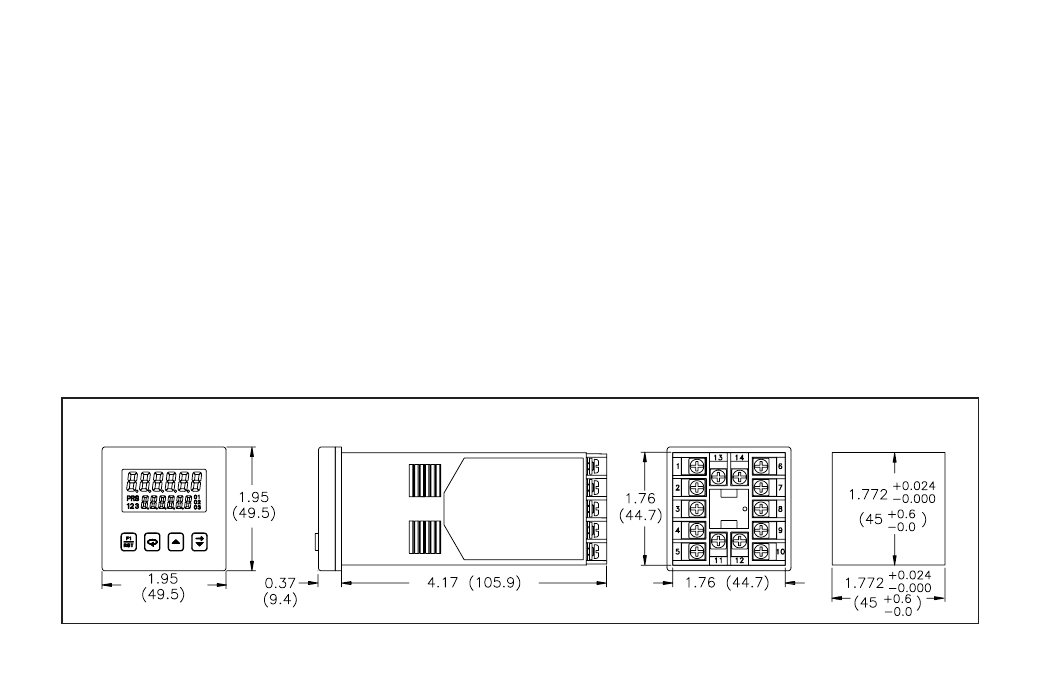

APPENDIX “B” - SPECIFICATIONS AND DIMENSIONS
PANEL CUT-OUT
DIMENSIONS In inches (mm)
