Viewing Graph Detail in Large Popup Trend View
With a Large Popup Trend View open, you can also zoom in
on a specific time period.
Simply click anywhere on the graph and drag your cursor to
the right to highlight the time period you want to magnify, then
release. The magnified area displays until the next live
update. To return to full view immediately, double-click
anywhere on the graph (or to zoom out, select an area, drag
cursor to the left, then release).
Acknowledging Alarms from Large Popup Trend
View
From a Large Popup Trend View window, you can
acknowledge alarms.
To acknowledge an alarm from a large popup trend view:
1

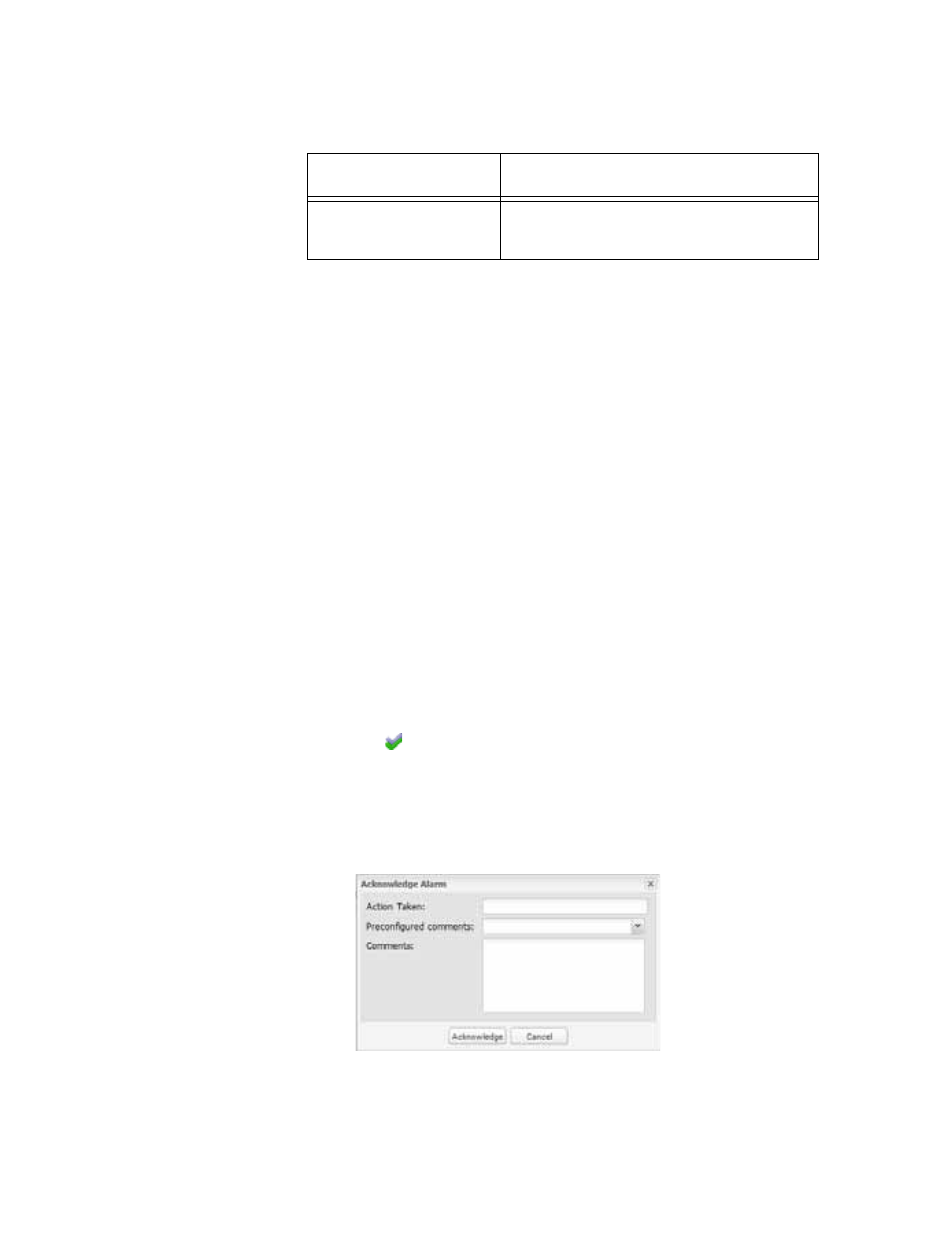

From the large popup trend view “Active Alarms” panel,
click
Acknowledge
.
2
In the Acknowledge Alarm dialog box that appears, enter
information to describe what was done to correct the
alarm situation, or a general comment. You can also
select from the dropdown of preconfigured comments if
you prefer.
3
Click
Acknowledge
.
Status bar Indicates channel monitoring status (OK or
Alarm/Alarm condition type).
Item Description
Table 4: Large Popup Trend view elements
