About Dashboard Manager
Dashboards provide the ability to upload a custom image for
any zone or view and place locations on this image. They
give the user a visual display of the current readings at
various locations.
For example, a floor plan or map of a building can be
uploaded as the dashboard image, and the locations can be
dragged and dropped to their corresponding real life
locations on the map. These locations will display the most
current readings and can be easily selected to display the
Popup Trend View. See “Opening Large Popup Trend Views”
on page 75.

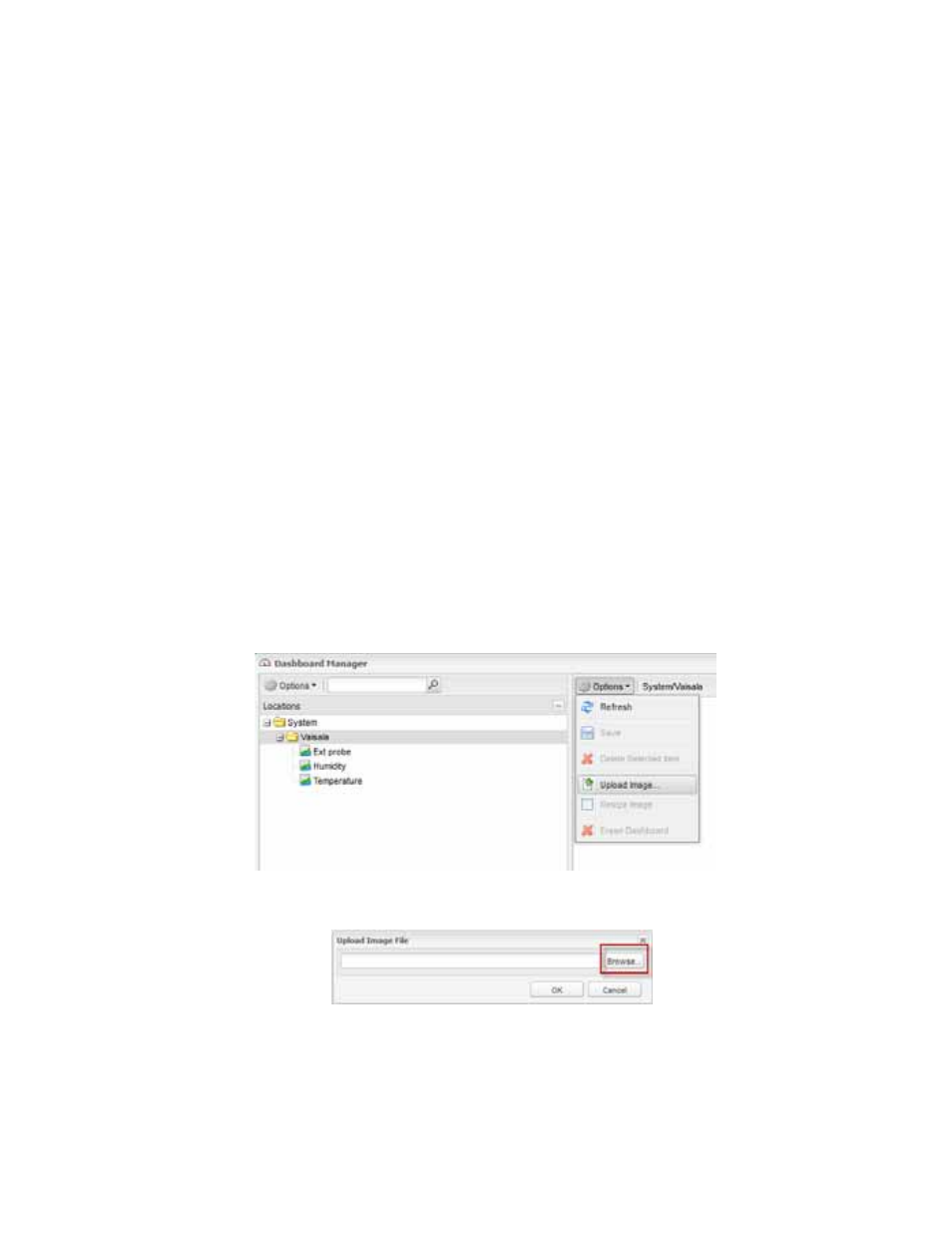

Creating a New Dashboard in Dashboard Manager
1
Click
Options | System Configuration | Dashboard
Manager
.
2
Navigate to a Location from the Locations tree and click
to select it.
3
On the right panel, Click
Options | Upload Image
.
4
Use the
Browse...
button to navigate to the image you
wish to use.
5
Double click to select the image. It will become the new
desktop image for your dashboard. The
Options
Menu
button turns red to indicate that the current dashboard is
