About Dashboard Manager
viewLinc 4.1 Administrator Guide 25
being edited and the current tree folder is highlighted to
indicate that the dashboard is in edit mode.
6
If it is necessary to resize the image, select
Options |
Resize Image
. A grey border will appear around the
image allowing you to adjust the size in a window.
7

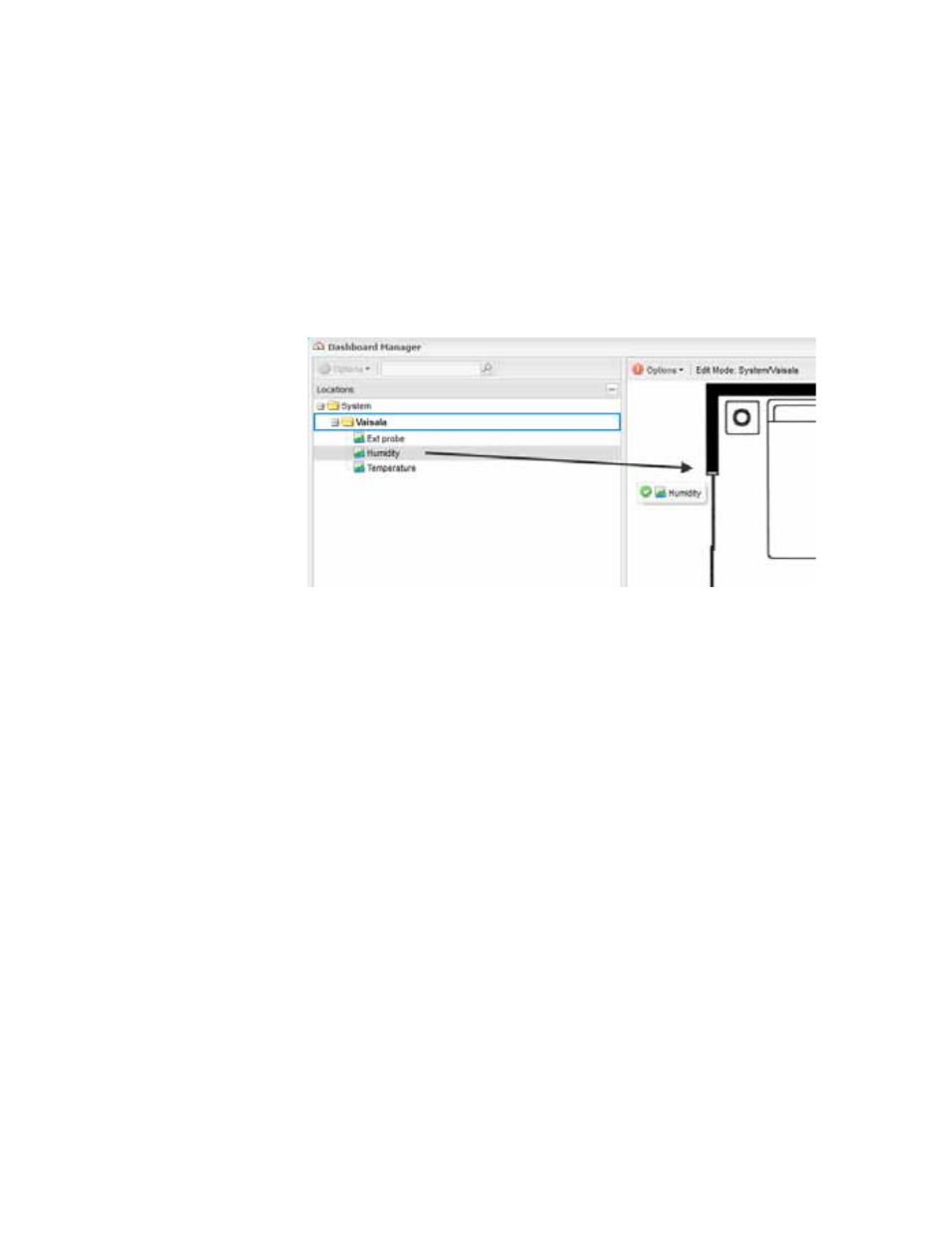

Navigate the locations tree to find a location or zone you
would like to add to your dashboard. Drag and drop from
the locations tree to the dashboard on the right.
Note:
It is only possible to place locations on the dash-
board that 1) are a part of the zone being edited
and 2) are not in the current dashboard yet.
The location or zone will now appear in the image on the
right. A Zone will display a folder icon that can be double
clicked to open. A location with data associated to it will
automatically display and refresh this data on your
dashboard. To reposition items on the dashboard simply drag
and drop them around the dashboard.
Double click the location to display the popup trend view.
Alternatively, you can right click on the location and select
Popup Trend.
To view the location properties, right click and
select Properties.
Deleting a Dashboard Item
1
To delete an item from the dashboard, start by clicking on
the desired item to select it.
2
From the
Options
menu choose
Delete Selected Item
.
3
Alternatively, you can right click the desired item to
delete and select
Delete
.
