Installing viewLinc
viewLinc 4.1 Administrator Guide 9
Connecting Devices
Choose from the following methods to connect your devices
to the network or appropriate PCs.
Method 1: Using vNet Devices
The following procedure shows how to use vNet devices to
connect your devices to the network.
Attaching Main Hardware
1
Remove protective label on the bottom of the device.
2
Connect the device to the vNet device.
3
Connect the vNet device to the Ethernet outlet and (if not
using PoE) power supply. When power is supplied to the
vNet device, the red power LED light will blink for 7-8
seconds, then stay solid. When a network connection is
made, the red LNK LED should light up and stay solid,
and the green ACT LED should blink occasionally.
Note:
To ensure a secure connection, insert the power
supply barrel-end connector into the device and
turn 1/4 to the right. If your network supports
Power Over Ethernet, you do not need to con-
nect to a power supply.
For more information about installing vNet devices, refer to
the vNet User Guide.

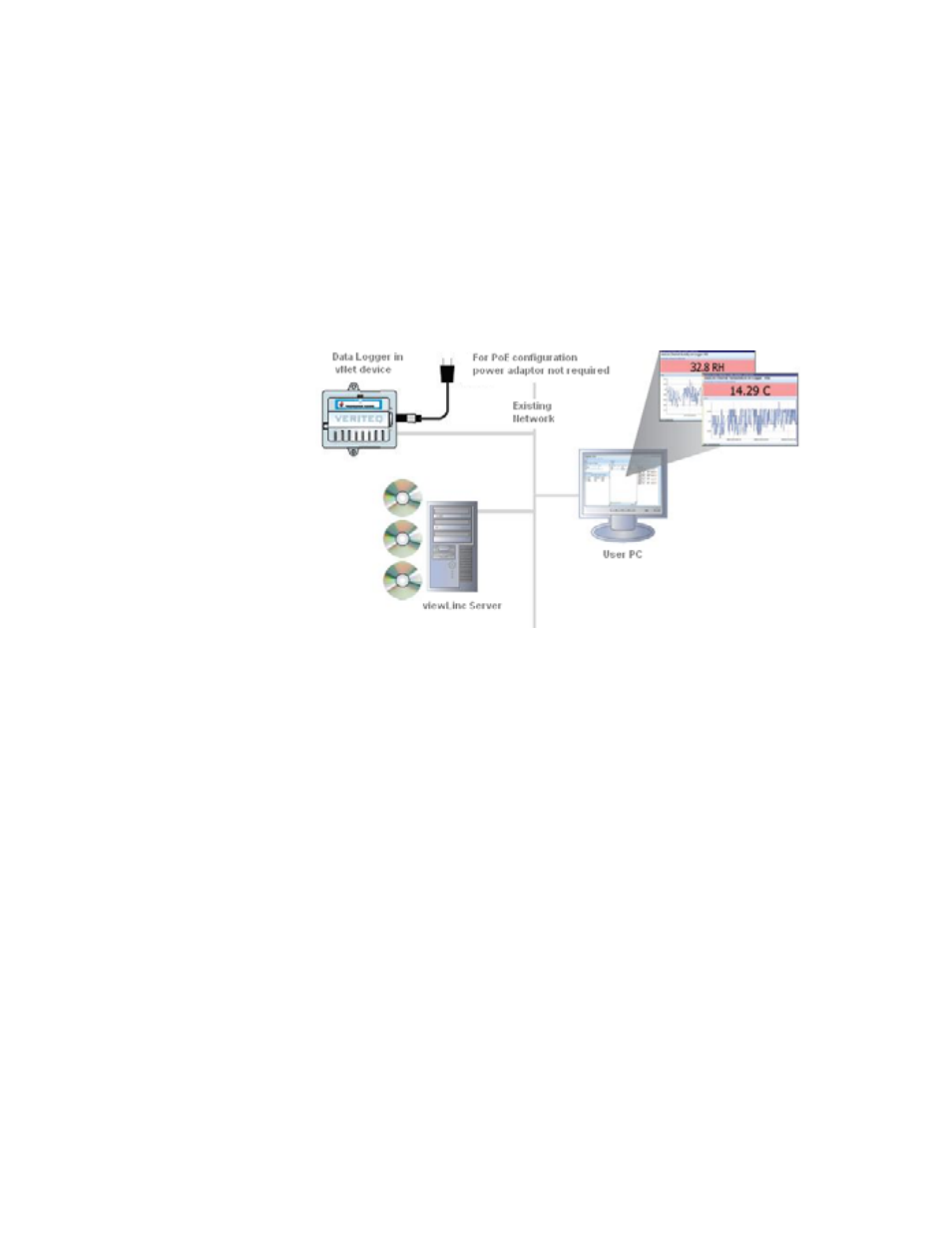

Figure 1: Overview of viewLinc system using vNet devices
