Base Station Configuration Tool:
Manually entering a known lon/lat position
Pre-requisites:
Base Configuration Tool should be installed on PC and A5 Base should be upgraded to latest Base Station
firmware. A5 Base must be at version V1.27 or higher.
Procedure:
1. Install Base Configuration Tool to your PC.
2. Place Base Station in its final desired position. Power the base station with the technician cable.
3. Connect the cable labeled “Setup” to an available COM port on your PC

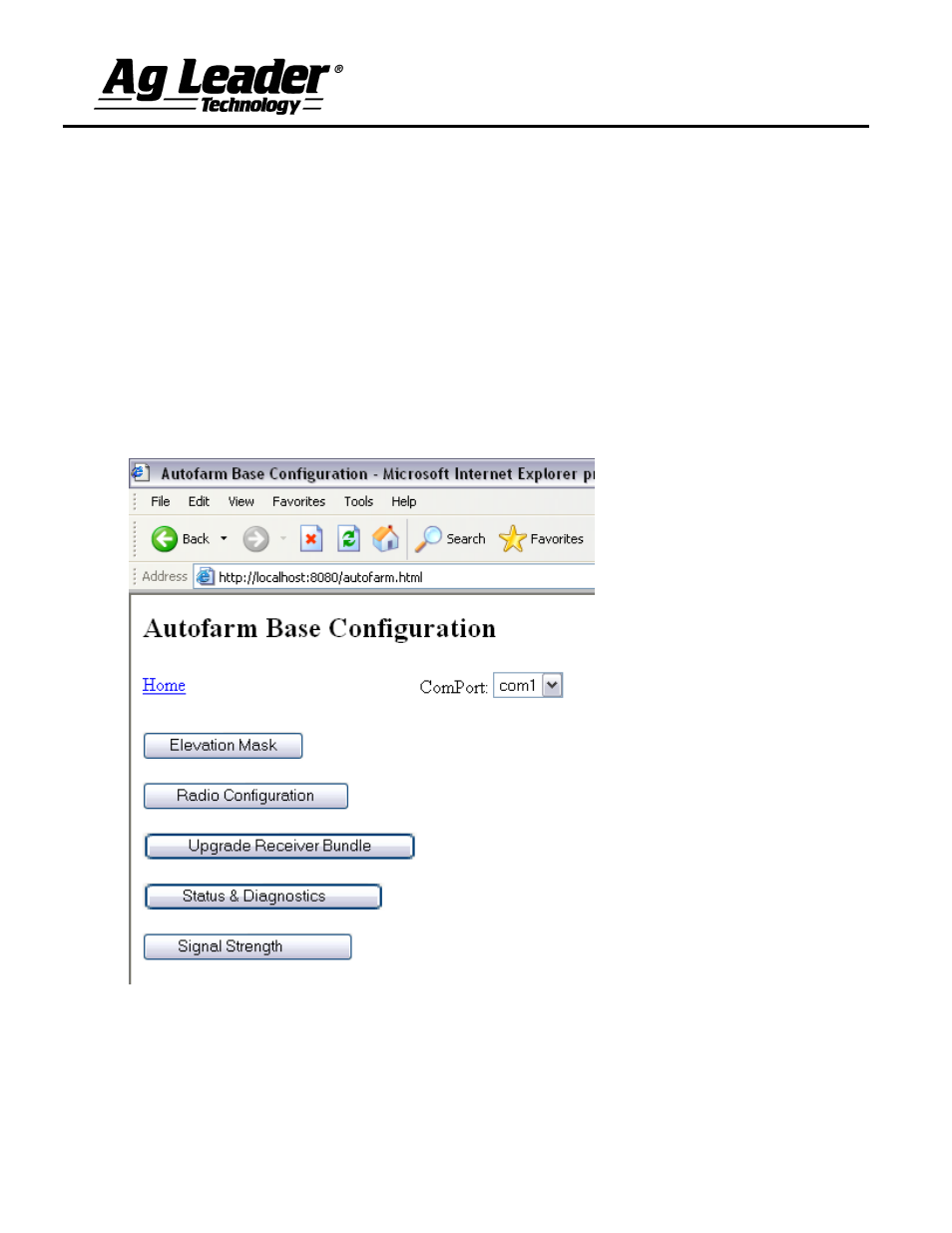

4. From windows start menu go to AutoFarm and then select “AutoFarm Base Configuration”. A screen will
appear like this.
Figure 5
