12

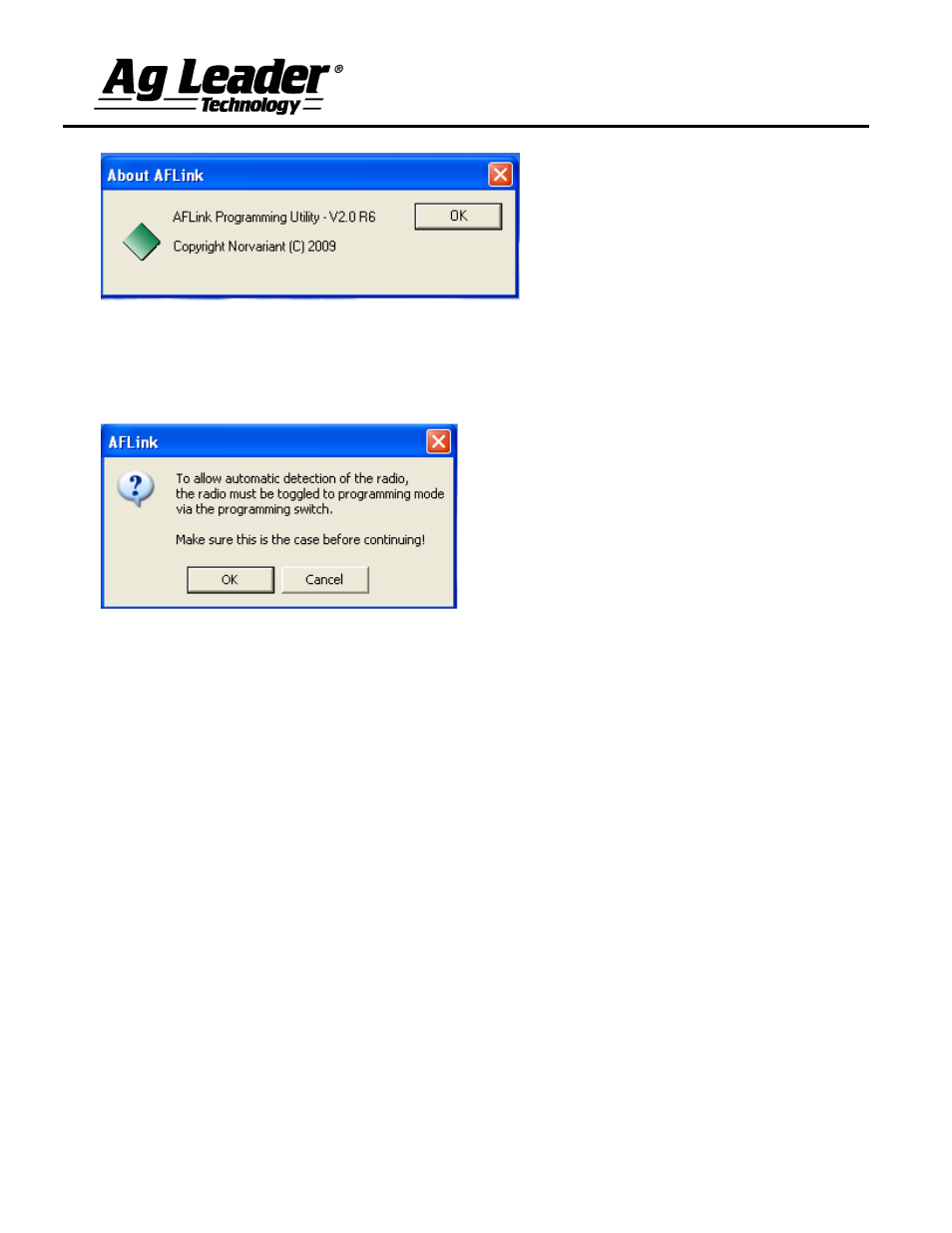

Figure 12 - About Window
To start programming the radio the user presses the Detect Radio button (or Alt+D), the software initiates
the detection logic. The software will then prompt the user to make sure that the radio that needs to be
programmed is in programming mode. Figure 13 here below shows the message displayed by the software.
Press cancel button to cancel the task. Press ‘Ok’ button to do detection.
Figure 13 - Programming mode window
AFLink with Satel Radio:
When programming an AFLink radio with Satel, the programming button on the programming cable
must be pushed in and remain pushed in. Once the radio is programmed, it locks itself until the
programming button is pushed out or the radio is power-cycled. The program displays warning windows on
when to have the programming button pushed-in or pushed-out.
REMEMBER: If the programming switch is not pushed-in when the application tries to detect the
radio, the radio will not be detected.
After pressing in the programming button and pressing OK, the software will start detecting the radio,
depending on the detected type of radio, the software appearance will be different. Once the application has
detected the Satel radio the screen will look like the screen shown on Figure 14 here below.
