Advanced User Features:
The advanced user features will be shortly introduced here. A full description is out of the scope of this
document. For more details about the advanced features, contact AutoFarm.
When the advanced features are enabled, the users can right-click anywhere within the software window and
get the pop-up menu shown on Figure 27. This allows the user to show, hide, clear and save the
Diagnostics window.

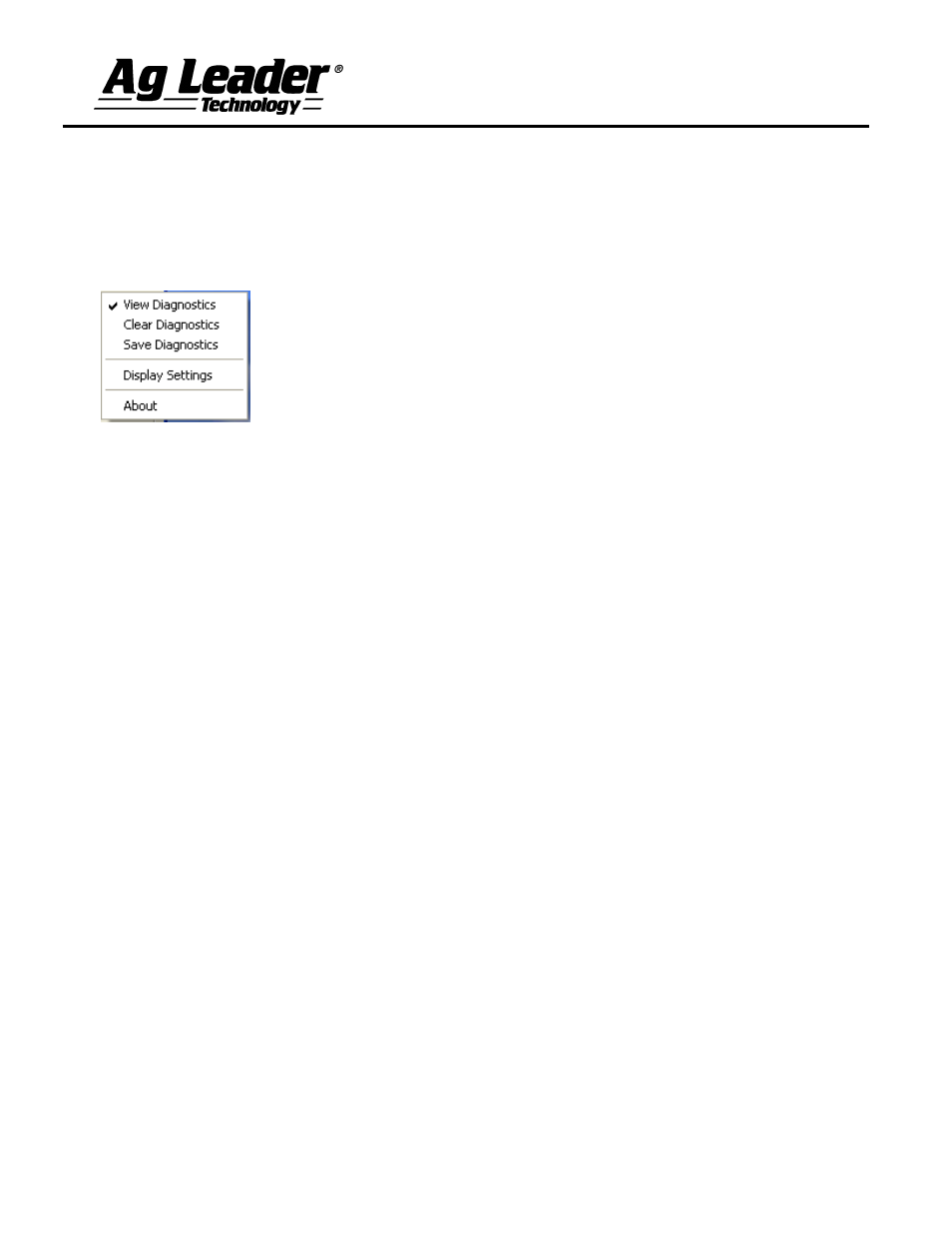

Figure 27 - Advanced user pop-up menu
The Diagnostics window shows details of the communication between the software and the radio and allows
advanced users to see more details on the AFLink configuration. It also allows troubleshooting
communication problems between the software and the AFLink radio.
“Save Diagnostics” will allow user to save the diagnostics message to files. “Display Setting” will display all
FreeWave configurations.
Note that the software always populates those windows, so even when they are hidden, they still collect
debugging information. To show the desired window, press Show Diagnostics. To hide them press Hide
Diagnostics. And to clean up the windows choose Clear Diagnostics, all this does is erase what currently
is in the window, and any new debugging information will still be displayed in these windows.
