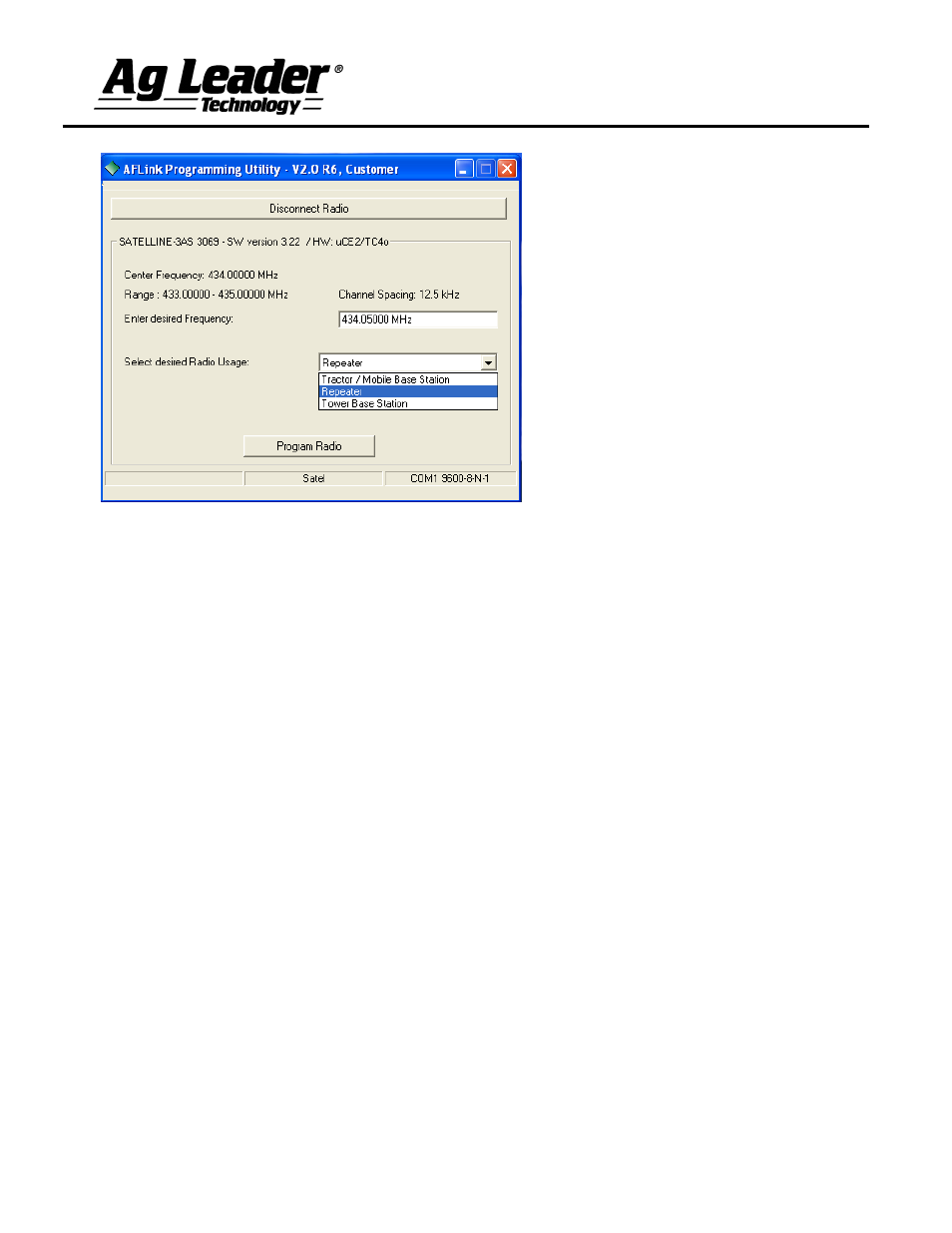

Figure 15 - Satel AFLink usage choices
In terms radio usage, Figure 15 shows the possible options which are:
• Tractor / Mobile Base Station – This setting is to be used if the AFLink is going to be put on a Roof
Module or if it will be connected to a portable Base Station. In either of these cases, the programming
of the radio is identical.
• Repeater – The AFLink is going to be connected to a Repeater.
• Tower Base Station – This configuration of the AFLink radio is for installation with a Tower Base
Station (or Permanent Base Station).
For intermediate and advanced users, the software allows the user to configure the AFLink output power as
well. Figure 16 shows an example of the software screen when running in one of these 2 modes. One can
see in this example that there is a third box giving output power selection choices.
