If the firmware is not 2.64, only “legacy” mode is supported. Firmware update button will be shown if the firmware doesn’t
support “fast roaming” mode. User can press this button to update firmware as shown in Figure 15 (some old hardware
will not support new firmware).
.

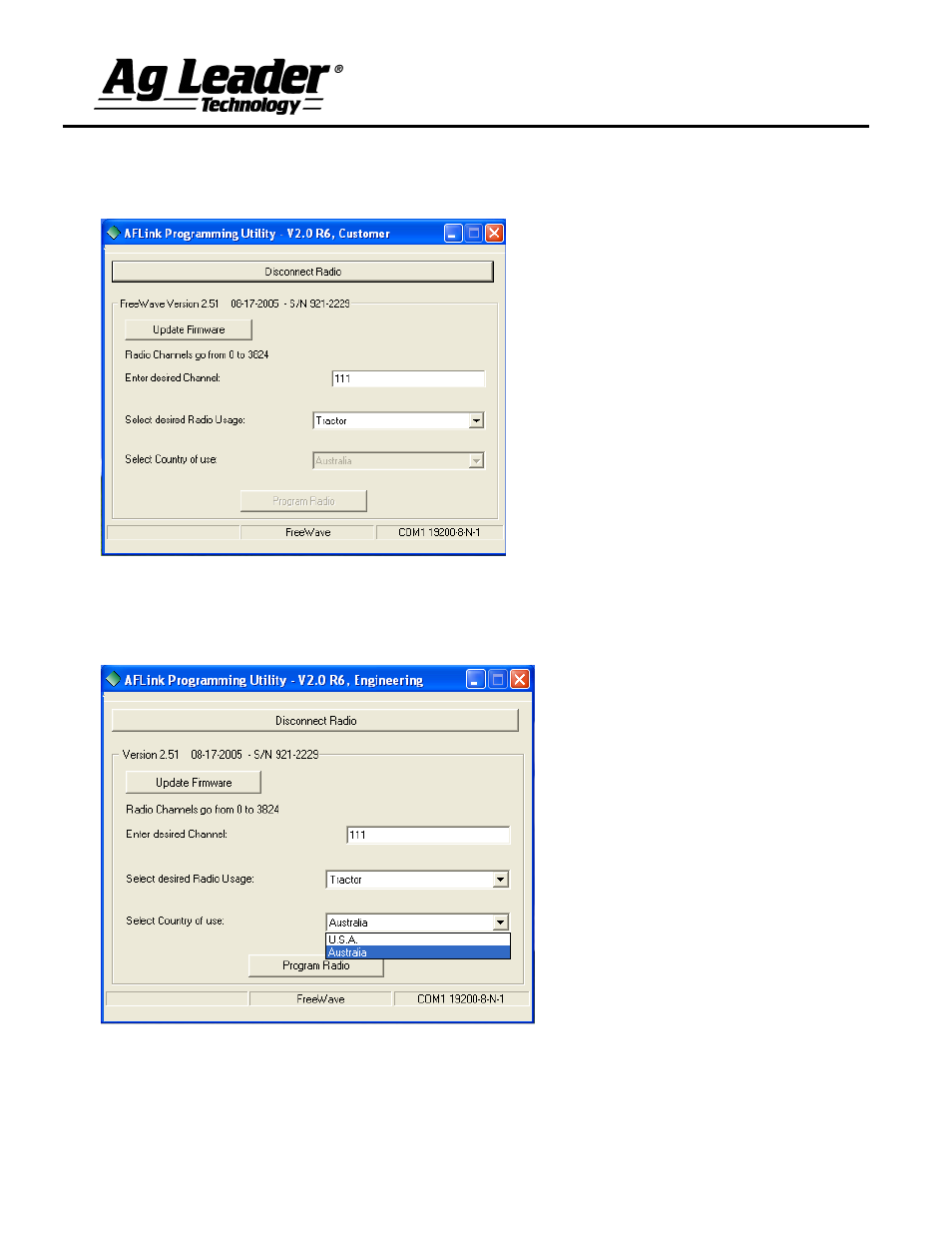

Figure 24 - AFLink Freewave firmware update for version older than 2.64
For intermediate and advanced users, the software allows the user to configure the AFLink output country of
use as well. Figure 25 shows an example of the software screen when running in one of these 2 modes.
One can see in this example that there is a third box giving country of use selection choices.
Figure 25 - Freewave country choices for intermediate and advanced users
