16

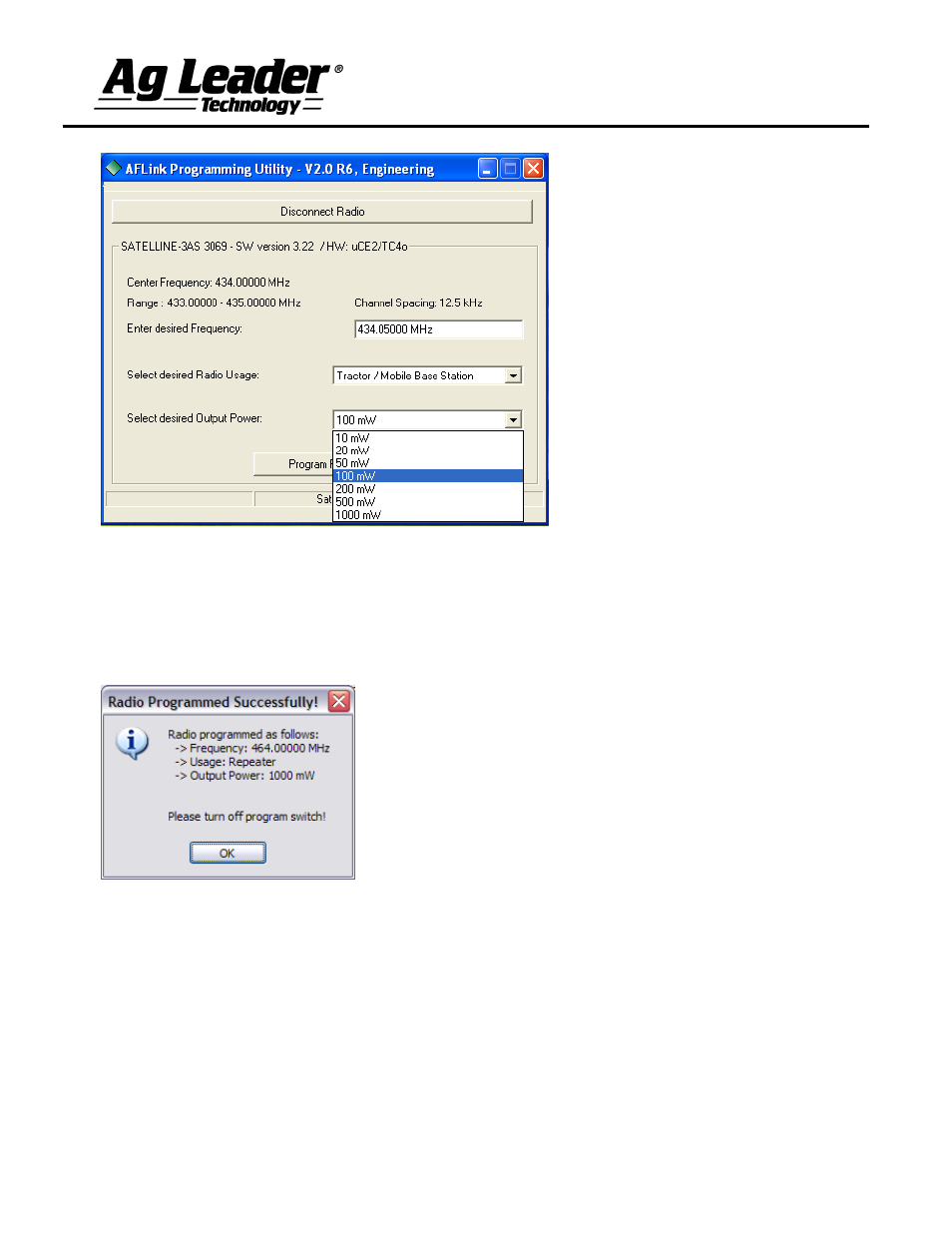

Figure 17 - AFLink Pgm Util output power selection
Finally, when all programming options are selected, the user can press the Program Radio button to start
programming the radio. Note that the button is only enabled if all fields are correctly filled. If any of the fields
has an invalid entry, the Program Radio button will be disabled. After the radio has been programmed
correctly, the software will prompt the user with a confirmation message as shown of Figure 18. Note that for
Satel radios, the user needs to flip the programming switch to normal mode before the radio can do anything
again.
Figure 18 – AFLink Satel successful programming window
